LG DL X420 Series User Manual

13INSTALLATION
ENGLISH

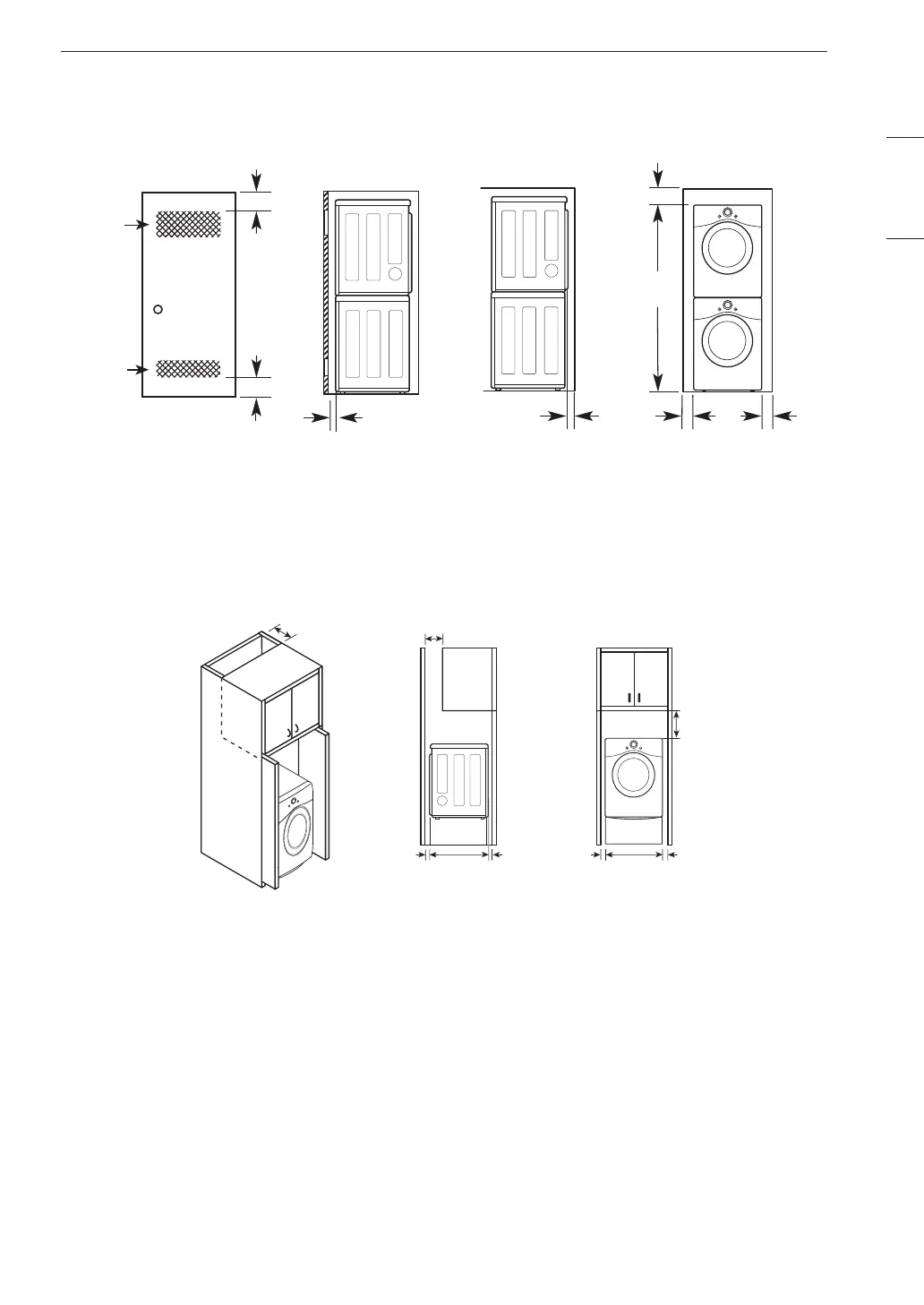

Installation Spacing for Recessed Area or Closet, with Stacked Washer and
Dryer
24 in.
2*
(155 cm
2
)
2*
(310 cm
2
)
48 in.
3" *
(76 mm)
3"
*
(76 mm)
1" *
(25 mm)
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
5 ½" **
(140 mm)
6"
*
(152 mm)
77 ½"
(1968 mm)
* Required spacing
** For side or bottom venting, 2-inch (5.1 cm) of spacing is allowed.
Installation Spacing for Cabinet
For cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.
* Required spacing
7" *
(178 mm)
7" *
(178 mm)
9" *
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
5"*
(127 mm)
1"*
(25 mm)
30 - 30 1/8"
(761 - 765mm)
(229 mm)
NOTE
• The images in this manual may be different from the actual components and accessories which are
subject to change by the manufacturer without prior notice for product improvement purposes.

LG DL X420 Series Specifications

General

Brand	LG
Model	DL X420 Series
Category	Dryer
Language	English
