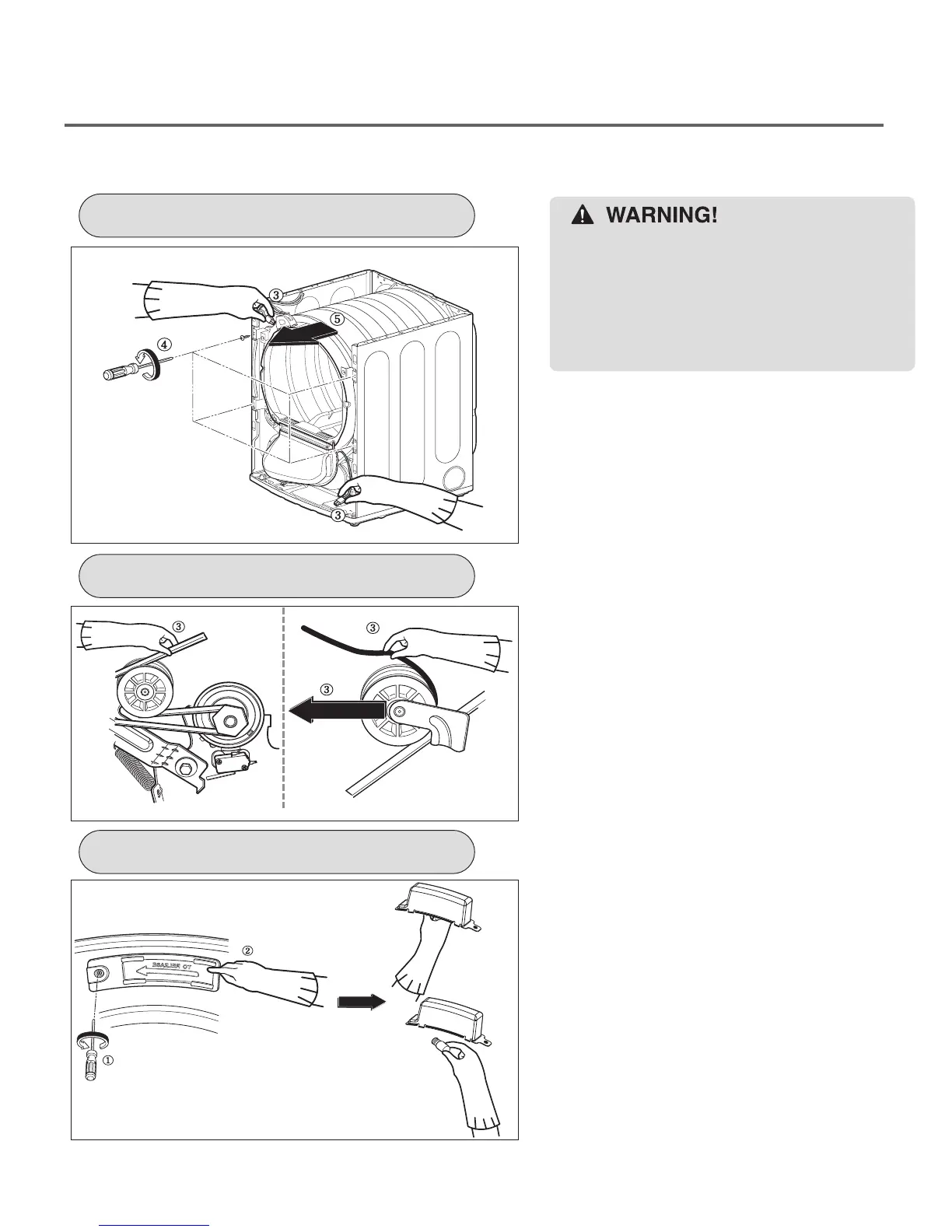

TUB DRUM [FRONT]
DRUM ASSEMBLY
CHANGING THE DRUM LAMP
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum [front ].
3.
Loosen belt from motor and idler pulleys.
4.
Carefully remove the drum.
1.
Disassemble the door.
2.
Hold the lamp shield in place while removing the
screw.
3.
Slide the shield up and remove.
4.
Remove the bulb and replace with a 15
watt, 120 volt, candelabra-base bulb.
5.
Replace the lamp shield and screw.
1.
Disassemble the top plate.
2.
Remove cabinet cover.
3.
Disconnect the door lamp and electrode
sensor connector.
4.
Remove 4 screws.
5.
Disassemble the tub drum [Front ].
33
When you disassemble the Dryer, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges
when working. To reduce the risk of personal
injury, adhere to all industry recommended
safety procedures including the use of long
sleeved gloves and safety glasses.
