20 INSTALLATION
5

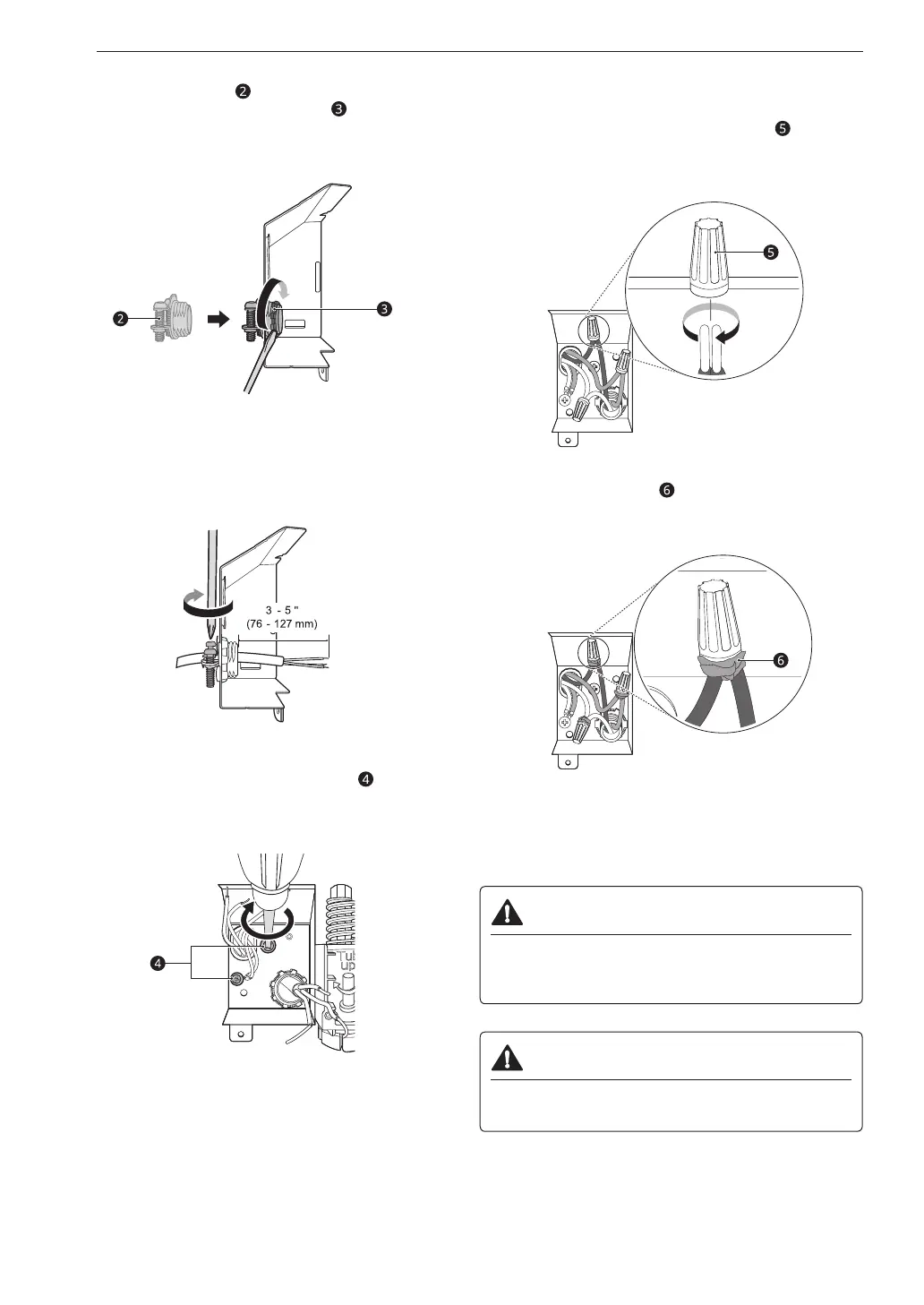

Insert a strain relief through the hole in the
junction box. Tighten the ring nut to secure it
in place.
6
Insert the electrical cable through the hole in
the strain relief. Tighten 2 screws to secure the
cable.
7
Pull the existing wires through the openings
in the junction box. Tighten 2 screws to
reassemble the junction box in the appliance.
8
Pair the white, black, and green wires to the
matching colored wires from the dishwasher.
Then twist on the provided wire nuts tightly to
connect the corresponding wires.
9
Wrap electrical tape around each connection.
10
Fold the connected wires back into the junction
box and screw on the junction box cover.
WARNING
• Verify that the black wire is hot (120 V). If not,
or if you are unsure of the power supply, have it
checked by a licensed electrician.
CAUTION
• Do not leave stripped wire exposed. Trim
stripped wire to fit completely inside wire nuts.

LG LDF5545BD/00 Specifications

General

Style	built-in dishwashers
Color	black stainless steel
Load Capacity	15
Number of Cycles	9
Cycle Selections	auto, heavy, delicate, normal, turbo, download cycle, machine clean, rinse, express
Options/Settings	dual zone, half load, energy saver, high temp, extra dry, delay start, control lock, night dry
Drying Type	condenser drying
Noise level	48 decibels adjusted
Control Type	touchpad
Delay Start	yes
Load Sensor	yes
Number of Racks	2
Cycle Signal	yes
Water Filter	no
Water Softener	no
Food Disposer	no
Sanitize Settings	yes
Smart Home	no
Annual Energy Consumption	258 kilowatt hours
Water Consumption Per Cycle	2.8 gallons
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	24 5/8 inches
Height	33 5/8 inches
Width	23 3/4 inches
Net Weight	75 pounds
