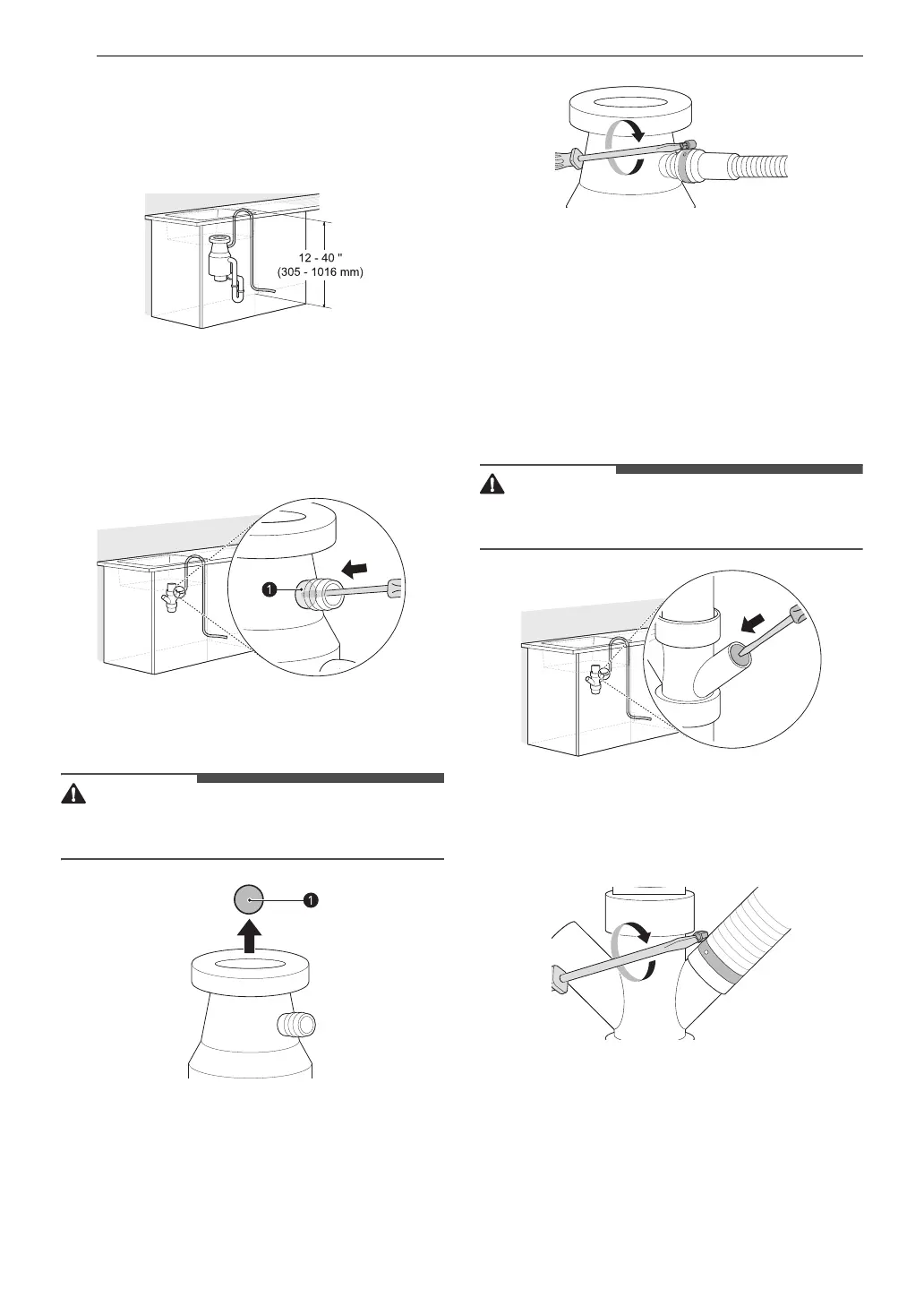

20 INSTALLATION
Height of the Drain Hose
The height of the drain hose end must be at least
12" (305 mm) and within 40" (1016 mm) from the
base of the dishwasher to avoid water being
siphoned from the tub.
Connecting to Disposal without Air
Gap
1 Remove the knockout plug on the disposal
with a hammer and screwdriver.
2 Remove the knockout plug a from the
disposal.
• If the knockout plug has not been removed, the
dishwasher will not be able to drain properly.
3 Attach the drain hose to the disposal with the
hose clamp provided. Move the hose clamp
into position and tighten it with a flat-blade
screwdriver.
Connecting Waste Tee without Air
Gap
The height of the drain hose end must be at least
12” (305 mm) and within 40” (1016 mm) from the
base of the dishwasher to avoid water being
siphoned from the tub.
1 Remove the knockout plug with a hammer
and screwdriver.
• If the knockout plug has not been removed, the
dishwasher will not be able to drain properly.
2 Attach the drain hose to the waste tee with
the hose clamp provided. Move the clamp into
position and tighten it with a flat-blade
screwdriver.
Connecting to Disposal or Waste
Tee with Air Gap
1 Remove the knockout plug with a hammer
and screwdriver.
