EXTERNAL EQUIPMENT SETUP
Connect the SET-TOP outputs to the
CCOOMMPPOONNEENNTT IINN
VVIIDDEEOO
sockets (Y P
B PR) on the set.
Connect the audio cable from the SET-TOP to
CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select
CCoommppoonneenntt..
2
3
1
HD RECEIVER SETUP
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■
The image shown may be somewhat different from your set.

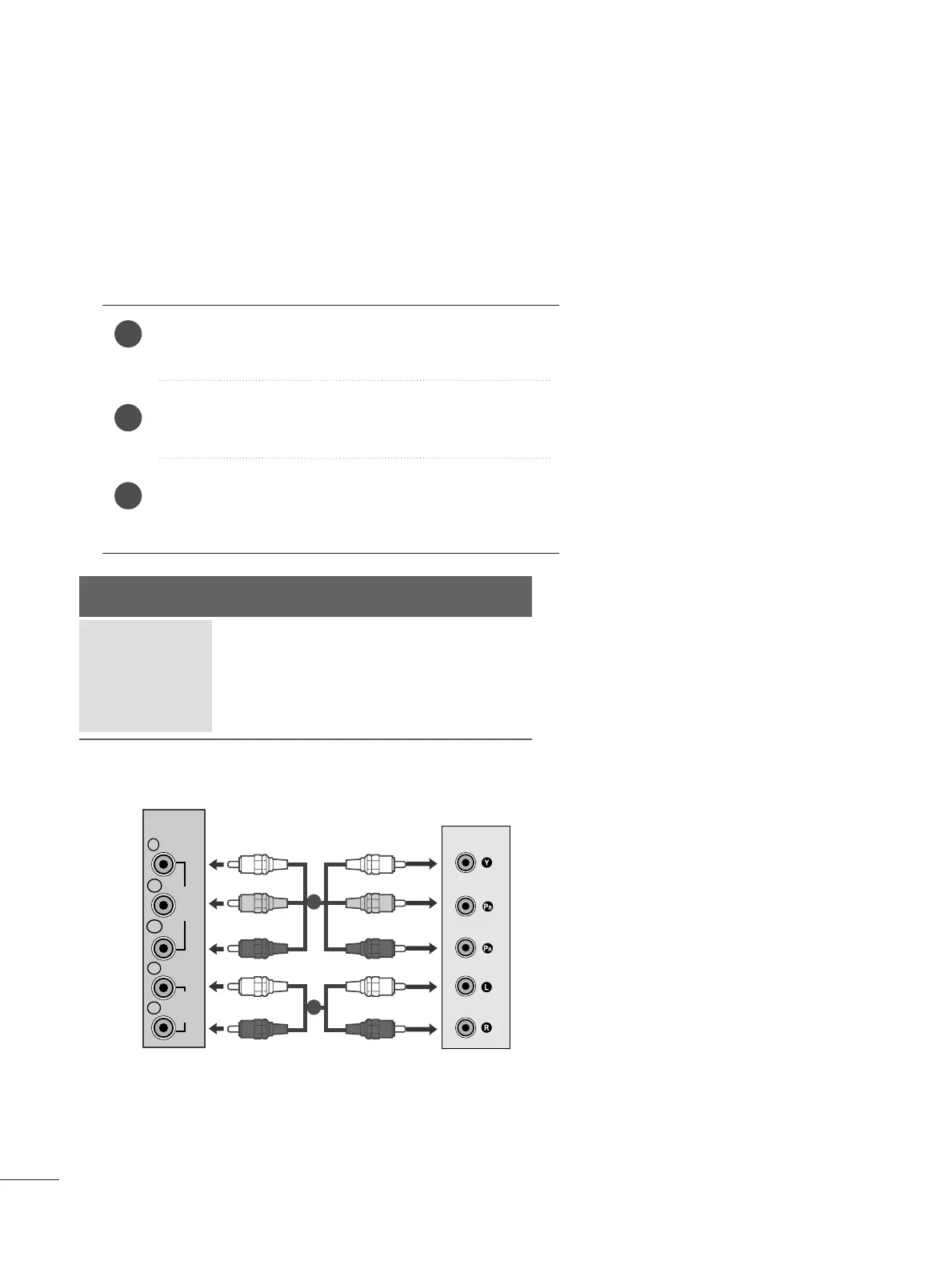

When connecting with a component cable
Signal
480i/576i
480p/576p
720p/1080i
108 0 p
Component
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
1
2

LG M197WDP Specifications

General

Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Annual energy consumption	44.8 kWh
Display diagonal	19 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:10
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	20000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
SCART ports quantity	1
Product color	Black
LED indicators	Stand-by
RMS rated power	6 W

Weight and Dimensions

Depth (without stand)	193.2 mm
Width (without stand)	454.7 mm
Height (without stand)	362.8 mm
Weight (without stand)	3820 g
