13
ENGLISH
10

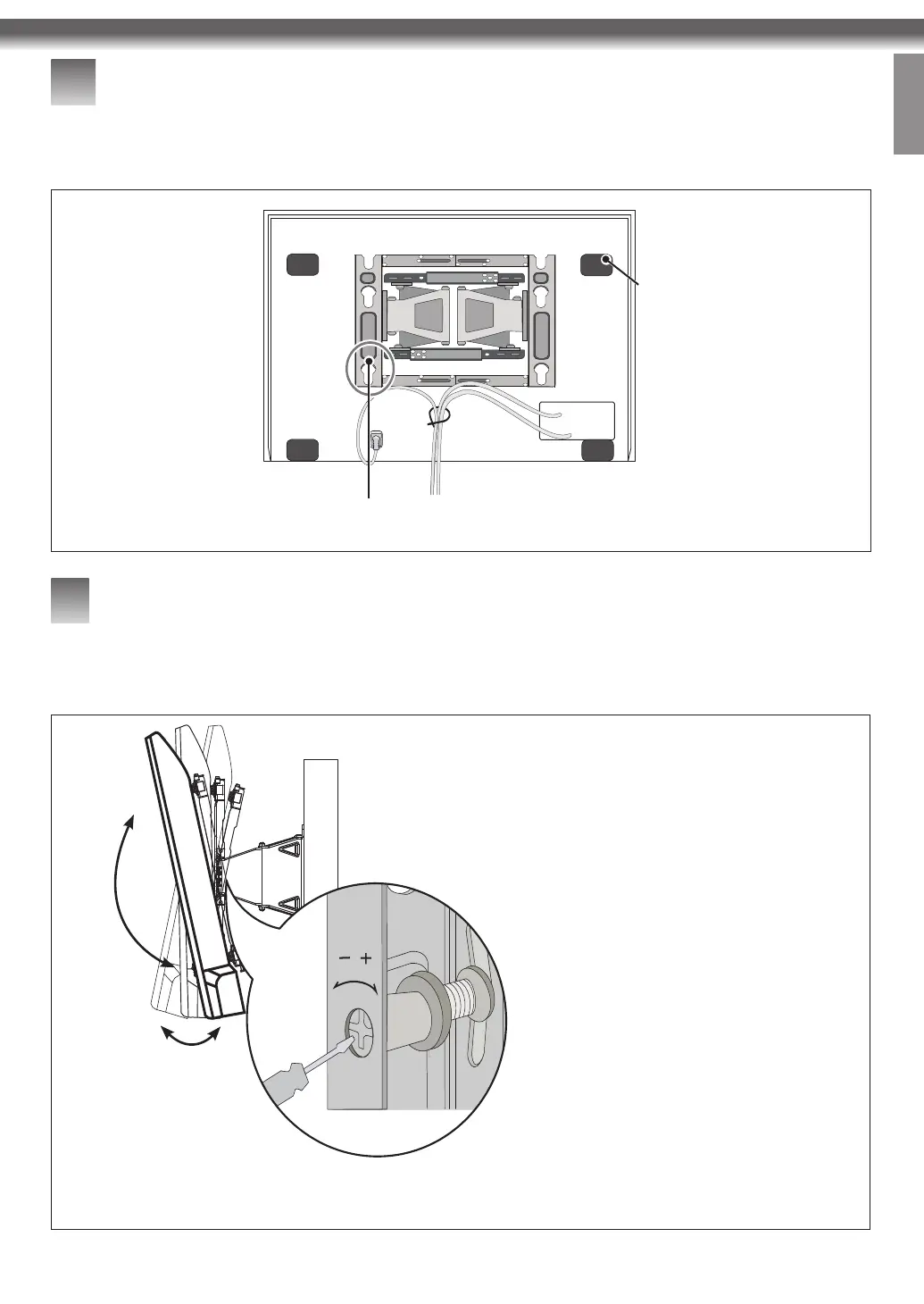

Organizing the Cables and Attaching the Set Protection Cushion
- Organize the cables as shown in the image. You should use cable organizer bands purchased separately or use those provided with
your TV.
- Attach the set protection cushion to reduce the shock received by the set as it bumps into the wall when tilting. Attach it to the
desired location as shown in the image.
* Caution: Make sure that the power cord or cables do not get trapped between the wall mount and the wall
as this may damage the cables.
Set Protection
Cushion
11
Adjusting the Tilt Movement Strength
- If your TV is not fixed in the up/down direction and keeps moving, turn the left/right adjusting screw in the direction of "+", turning it
for "1/4 of a turn" (6-click sounds). (The wall mount will be fixed.)
- In contrast, if your TV is stiff in the up/down direction when moving, turn the left/right adjusting screw in the direction of "-", turning
it for "1/4 of a turn" (6-click sounds). (The wall mount will easily move.)
Upper
Lower
* Initial state setting method
a. Turn the left/right adjusting screw all the way in the
"+" direction.
b. Turn both left/right adjusting screws half way in the
"-" direction, (12-click sounds).
c. Once 'a' and 'b' steps are completed, they are
returned to the initial shipment status.
* Caution: Excessive adjustment of the adjusting screws in the "+" and "-" direction may damage the TV and/or the wall mount.
To Next Page
