LG SH4D User Manual

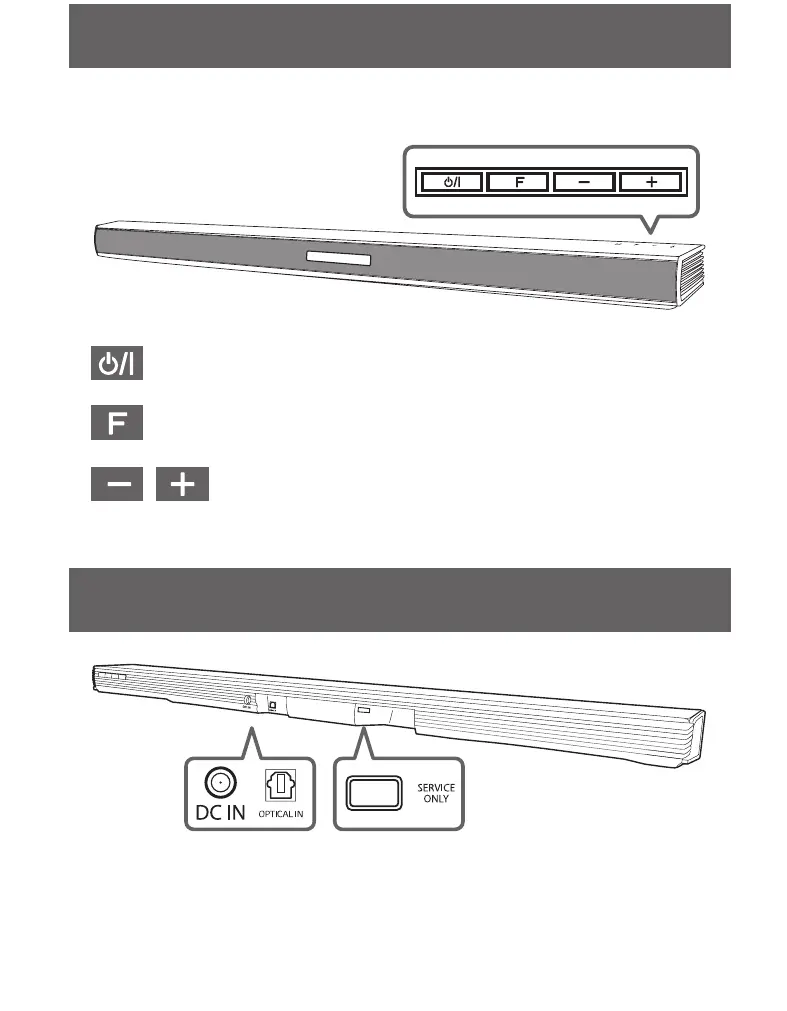

Front Panel
··································Standby / On
·······························Selects Function
·························Adjusts Volume
ASC/STANDARD/CINEMA: Selects the sound effect.
NIGHT ON/OFF: Turns down the volume at night.
WOOFER LEVEL +/-: Adjusts the volume level of
subwoofer.
AUTO POWER ON/OFF: Automatically turns on by an
input source.
Replacement of battery
Remote control
Rear Panel
DC IN ·················· Connect to the AC adapter
OPTICAL IN · · · · · · · · · · · Connect to an Optical device
USB (Service only) ·······S/W download connector
Subwoofer Connection1
a Connect the sound bar to the TV using Optical
cable.
b Set up [External Speaker (Optical)] on your TV
setting menu.
TV
Additional Device Connection
a Connect to the external device as follows.
TV
(Set-top Box,
Player etc.)
b Set the input source by pressing F on the
remote control or unit repeatedly.
TV Connection 2
The buttons are located on the rear.
Place the wireless subwoofer near the speaker and
follow steps below.
a Connect the power cord of wireless subwoofer
and sound bar to the outlet.
b Turn on the main unit :
The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Subwoofer Connection Manually
If the subwoofer does not make sound, try to
connect manually.
a Press Pairing button on the rear of the wireless
subwoofer.
y The green LED on the rear of wireless
subwoofer blinks quickly. (If the green LED
does not blink, press and hold the Pairing
button.)
b Turn on the main unit.
c Pairing is completed.
y The green LED on the rear of wireless
subwoofer turns on.
Keep the sound bar and the subwoofer away
from the device (ex. wireless router, microwave
oven, etc.) over 1 m to prevent wireless
interference.
>1m
Specication
Power
consumption
Refer to the main label.
Networked standby : 0.5 W
(If all network ports are
activated.)
AC adapter
y Model : DA-38A25
y Manufacturer : Asian Power
Devices Inc.
y Input :
100 - 240 V ~ 50 - 60 Hz
1.2 A
y Output : 25 V 0 1.52 A
Dimensions
(W x H x D)
Approx.
890 mm x 53 mm x 85 mm
Without foot
Amplier
(Total RMS
Output power)
300 W RMS
Design and specications are subject to change
without notice.
How to disconnect the wireless network
connection or the wireless device
Set up the AUTO POWER ON/OFF function to off and
turn off the unit.
Additional Information
SH4D.DGBRLLK_SIM_ENG_1008.indd 5-8 2017-07-28  11:48:13

LG SH4D Specifications

General

Audio decoders	DTS Digital Surround, Dolby Digital
RMS rated power	300 W
Audio output channels	2.1 channels
Surround modes quantity	3
Bluetooth	Yes
Bluetooth version	4.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
Digital audio coaxial in	0
Digital audio optical in	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	22 W
FM radio	No
Certification	CE
Product color	Black
LED indicators	Bluetooth, Power, Stand-by
Audio formats supported	LPCM, PCM, SBC
Remote control type	Programmable
Docking connector type	Not supported
Subwoofer type	Active subwoofer
Subwoofer location	Separate
Subwoofer sensitivity	85 dB
Subwoofer connectivity	Wireless
Package depth	217 mm
Package width	984 mm
Package height	416 mm
Package weight	8900 g
Woofer diameter	152.4 mm
Tweeter diameter	20 mm
Tweeter impedance	4 Ω
Crossover frequency	1000 Hz
Number of tweeter drivers	2
Soundbar speaker RMS power	120 W
Woofer diameter (imperial)	6 \
Signal-to-Noise Ratio (SNR)	82 dB
Total Harmonic Distortion (THD)	10 %
Audio system	2.1
Transmitting power	13 dBmW

Weight and Dimensions

Depth	85 mm
Width	890 mm
Height	53 mm
Soundbar weight	2340 g
Subwoofer depth	252 mm
Subwoofer width	171 mm
Subwoofer height	320 mm
Subwoofer weight	4200 g
