LG WT4801CW Service Manual

43

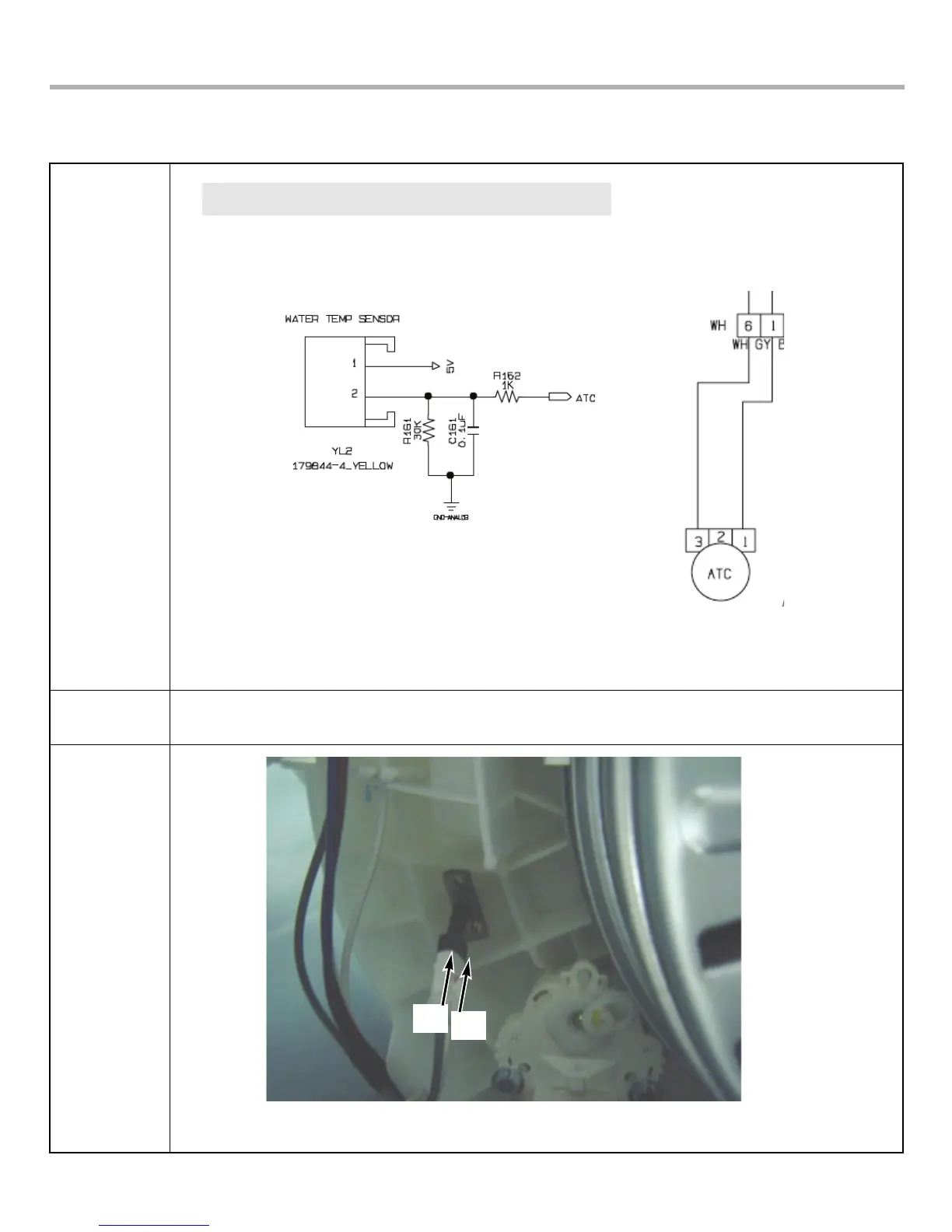

5-6. THERMISTOR ASSEMBLY
Wiring
diagram
Function
Test
points
Circuit in the MAIN PCB / Wiring Diagram
Wash Thermistor
The thermistor (temperature sensor) is used to monitor water temperature in the tub,
Steam Generator, Dry duct and Condensing duct.
(2)
(1)

LG WT4801CW Specifications

General

Electrical	120VAC@60Hz
Rating of Fuse	125V, 12A for 100~127V/60Hz
Auto Power Off	Yes
Inner Tub	Stainless
Softener Dispenser	Yes
Detergent Dispenser	Yes
Bleach Inlet	Yes
Inlet Water Pressure	14.5 ~ 116 PSI (100 ~ 800 kPa)
Time Delay	1-24 Hr
Spin Speed	Max. spin speed 1, 000
Cycles	Cotton/Normal, Heavy Duty, Bulky/Bedding, Tub Clean, Perm Press Casual, Delicates, Speed Wash, Rinse+Spin
Smart Rinse™with Jet Spray	Yes
Lid Interlock Switch	Magnet Sensor
Child Lock	Yes

Weight and Dimensions

Weight	145.5 lbs (58kg)
