Troubleshooting - Touch Pad A
Fault Fault Description Probable Cause Possible Solutions
Code Type
1 Major Stop Not Programmed No stop locations has Stops need to be reprogrammed by an
been set for the control authorizied dealer
2 Minor Battery Dropout Voltage. Bad Battery, bad wire conne- Repair bad wire connection, short or replace
Voltage dropped below 8.0V ction or short in system battery
3 Minor Low Battery Voltage. Voltage Bad wire connection from Repair bad wire connection or replace battery
is below 10.5V when room battery to control or low
movement was initiated battery
4 Minor Excessive Battery Voltage. Bad battery Replace battery
Battery Voltage is above
18.0V when room movement
was initiated.
5 Minor Slideout motor drawing Excessive system/room drag, Remove obstruction, re-adjust room, reset
excessive current obstruction, improper stop stops, or replace damaged
locations or damaged component
component
6 Major Slideout Motor Short Shorted wiring or motor Inspect motor harness wires and motor for
shorts. Replace shorted component.
7 Major Slideout Motor Open Bad connection, motor or Repair bad wire connection, replace motor
blown fuse. or fuse
8 Major No signal on motor sensor Bad wire connection or sensor Repair bad wire connection or replace motor
Out 1 (yellow) wire
9 Major No signal on motor sensor Bad wire connection or sensor Repair bad wire connection or replace motor
Out 2 (blue) wire
10 Major No signal on motor sensor Bad wire connection or sensor Repair bad sensor or motor lead connections.
wires yellow or blue Lastly, replace motor.
11 Minor Room lock motor drawing Excessive drag or obstruction Remove obstruction or replace damaged
excessive current or damaged component component
12 Major Room lock motor short Shorted wiring or motor Inspect motor harness wires and motor for
shorts. Replace shorted component
13 Major Room lock motor open Bad connection or motor Repair bad connection or replace motor
14 Minor Room lock timeout Bad wire connection, Remove obstruction, replace battery, repair
obstruction, broken component bad wire connection of fix broken component
or low voltage in room lock
Page 4
M²-Sync Room Slideout System

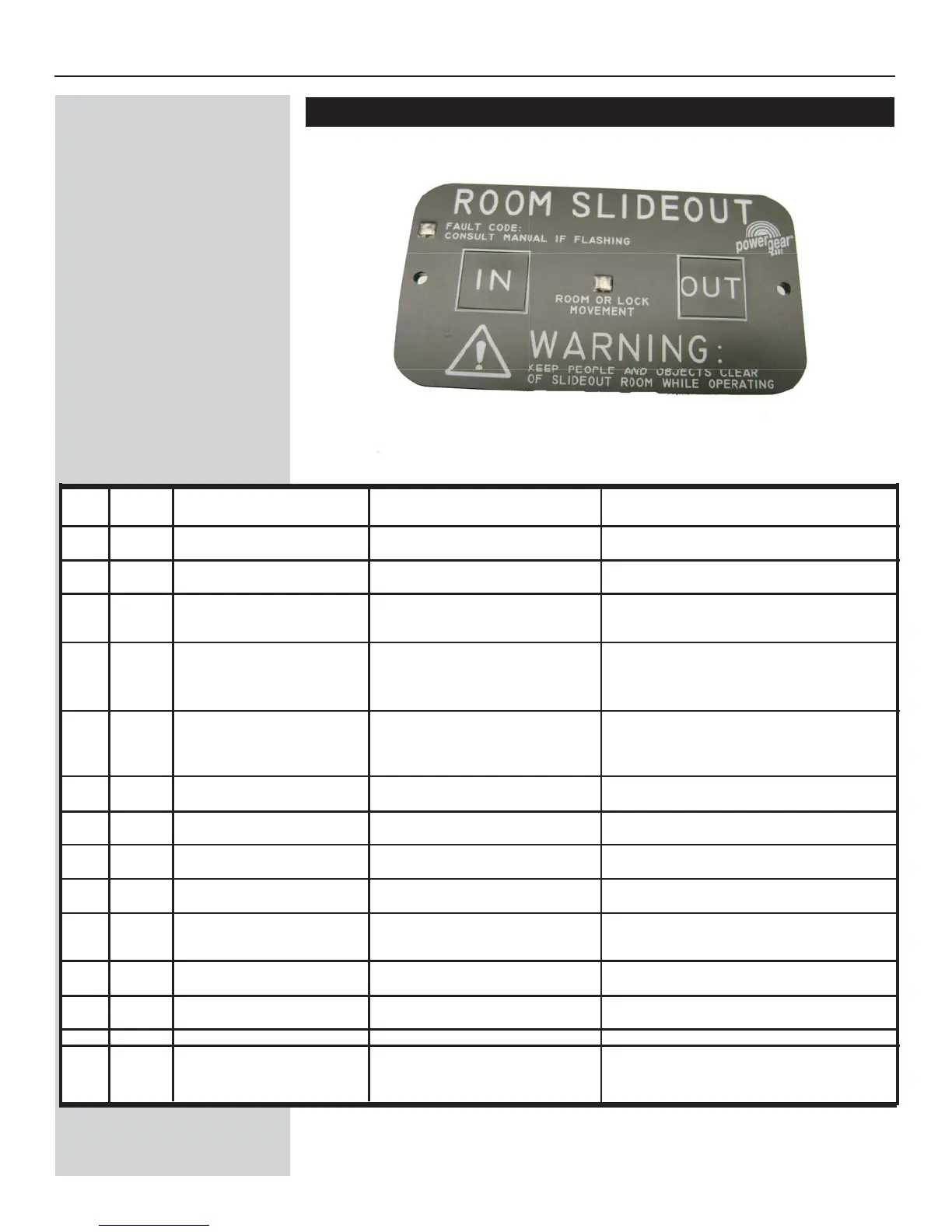

Use this troubleshooting chart if your touchpad looks like the picture above.
(Usually used with Control Box 1510000122)
CCD-0002533
