SURESHADE™ POWER BIMINI MANUAL OVERRIDE
TI-356
MARINE
Procedure
If the Power Bimini Top will not close (retract) a manual override of the Power Bimini Top must be done before
storing, towing or operating the pontoon.
1. Unzip the front pocket of the Bimini canvas.
2. Have a second person push forward on the rear frame to relieve some pressure off the canvas and hold
up the rear and middle frames when the canvas is being unzipped.
3. Lower the rear frame assembly and canvas fully down (Fig. 1).
NOTE: Canvas top not shown for clarity.

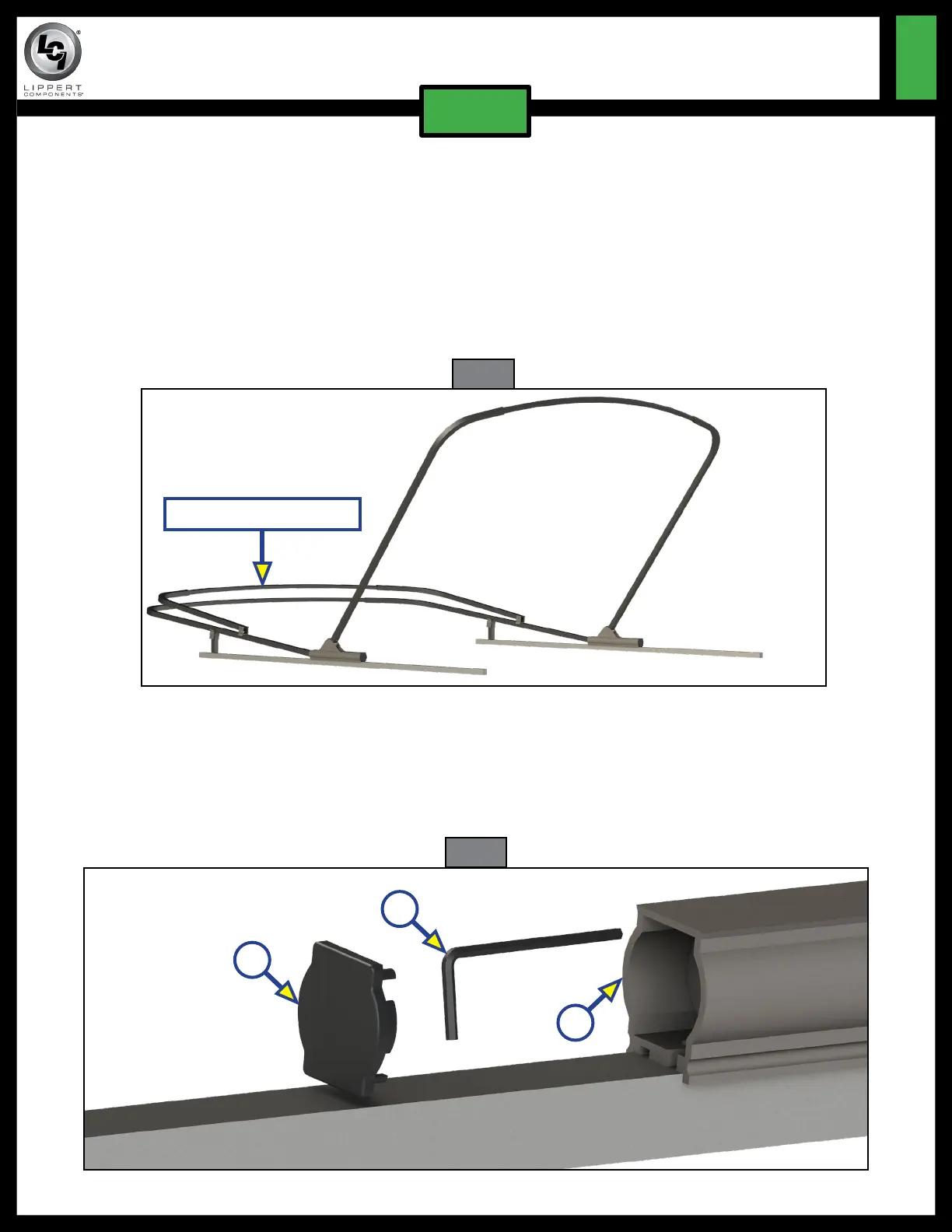

Fig. 1
NOTE: Hex key will only be provided inside the actuator in models manufactured May 2020 and later.
4. Remove the end cap (Fig. 2A) from the motor-end of one of the actuators (Fig. 2B).
NOTE: A
⁄
" hex wrench is stored inside the actuator assembly.
5. Remove the 5/32" hex wrench (Fig. 2C) stored inside the actuator.
Fig. 2
Rear Frame Assembly
A
B
C
