Logitech THX Z-560 User Manual

About your Logitech
®
Z-560 speaker system
Placing your Logitech
®
Z-560 components
1 2
English English
Thank you for purchasing the Logitech
®
Z-560 multimedia speaker system. We’ve worked hard
to meet the rigid standards of THX
®
for one reason— to give you the ultimate PC audio
experience. To discover more Logitech
®
products, visit us on the web at www.logitech.com.
Please take a few minutes to read this manual thoroughly before setting up your Z-560
system. Your listening experience will be the better for it.
For your safety, set up the entire system before
plugging it into a power source.

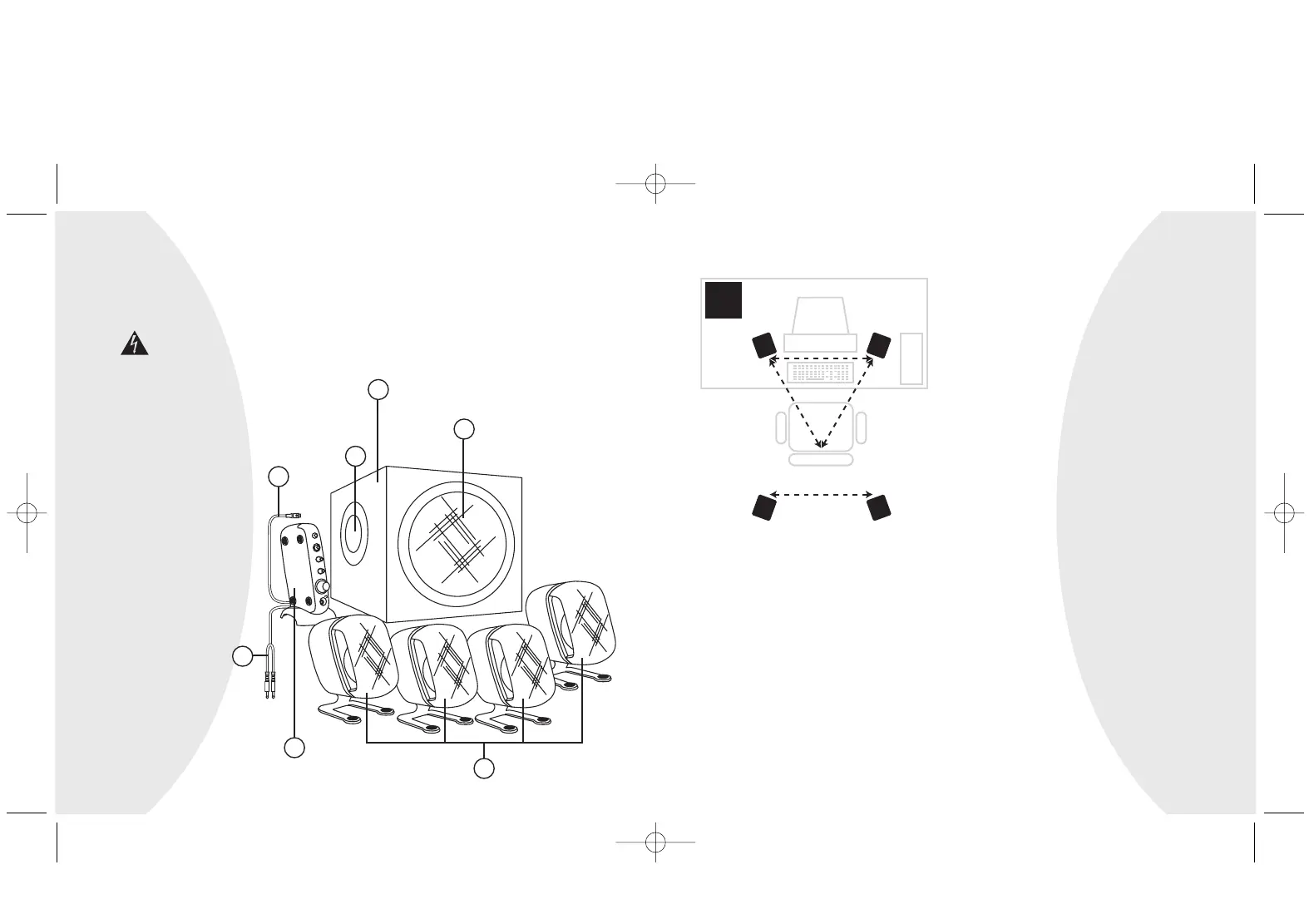

1. Subwoofer
1a. Bass port
1b. Driver
2. Satellite speakers
3. SoundTouch
™
Control Center
4. Audio input cable
to PC - green &
black plugs
5. DIN cable from
SoundTouch
™
Control Center to
subwoofer
Setting up your Logitech
®
Z-560 speakers and SoundTouch
™
Control Center:
Satellite speakers
Before attaching the cables, position two
satellite speakers on either side of your
computer monitor about the same distance
from each other as from you. Angle them to
face you.
Place the other satellite speakers behind you
and about the same distance apart as the
front speakers.
You may want to mount these speakers on
the wall. Simply loosen the screws on the
stands and rotate. Mount the speakers using
appropriate wall anchors through the holes in
the stands.
For a more pro-audio look, you can remove
the cloth grilles. Simply grasp the grilles and
pull them straight off.
Subwoofer
Because bass frequencies are non-directional, the subwoofer can be placed anywhere in
relation to the satellites. For optimum sound quality, place the subwoofer on the floor
beneath your desk being careful not to block the driver or the bass port. Since the
subwoofer has a powerful magnetic structure, make sure it is as least 20 inches away from
monitors, CPUs, disk drives and magnetic media.
Note: Please ensure adequate ventilation around the subwoofer. Keep the cooling fins
on the back of the subwoofer at least three inches away from any object. For your safety,
the Z-560 system is protected by a thermal overload switch, which will cause the system to
shut down if it becomes too hot. In rare circumstances, where the ambient room
temperature is high, the unit could shut down. If this occurs, allow it to cool before turning
the power back on, and increase the ventilation around the system.
SoundTouch
™
Control Center
Position the SoundTouch
™
Control Center where it’s easy to reach. It can be placed
vertically, using the included base, or horizontally, such as on top of your monitor.
p
o
w
e
r
m
3
d
b
a
s
s
f
a
d
e
v
o
l
u
m
e
1
1a
1b
2
3
4
5
Important:
Z-560 manual.final.qxd 8/23/01 3:10 PM Page 2
