- 91 -
FOCS Workshop Manual_cod. 1.5302.351_7° ed_ rev. 06
9
206
207
208

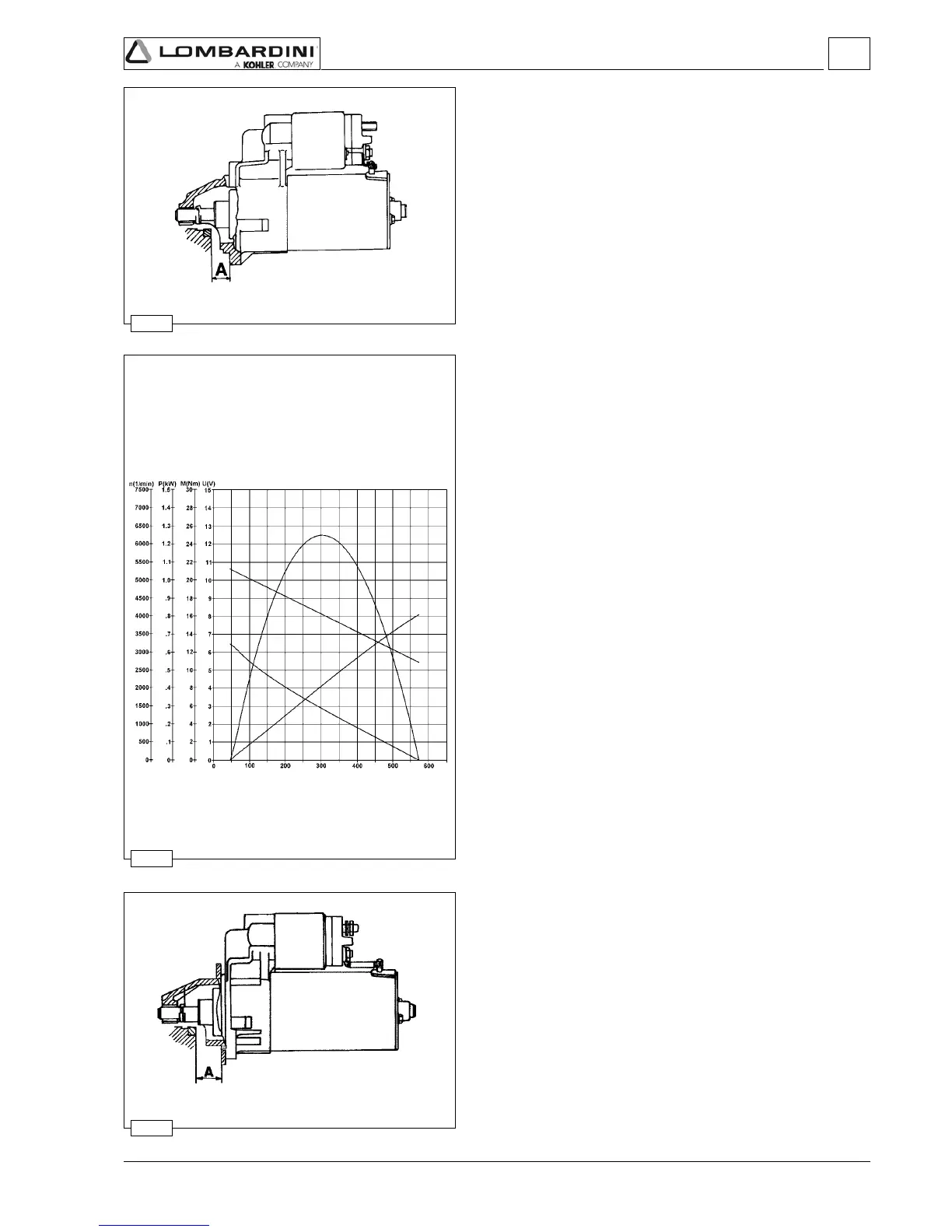

STARTER MOTOR - Bosch DW 12V 1,1 KW
Rotation: Clockwise
A = 17,5÷19,5 mm
(distance from starter mounting flange to ring gear face)
Note: Please refer to your local BOSCH distributor for service parts,
repair criterion and warranty service.
Starter motor, Bosch 12V 1,6 Kw
Rotation: Clockwise
A = 29,50÷31,5 mm
(distance from starter mounting flange to ring gear face)
Note: Please refer to your local BOSCH distributor for service parts,
repair criterion and warranty service.
Starter motor, Bosch DW 12V 1,1 KW - Performance Curve
The curve was obtained at room temperature of -20°C with a fully
charged 66Ah battery.
U =Starter Motor Voltag
n =Armature r/min
I =Absorbed Amperage
P =Starter Output Power (KW)
M =Starter Output Torque (Nm)
Electric System

Lombardini LDW 502 Specifications

General

Engine Type	Diesel, 4-stroke
Number of Cylinders	2
Fuel System	Indirect injection
Starting System	Electric start
Lubrication System	Forced lubrication with gear pump
Bore x Stroke	72 mm x 62 mm
Cooling System	Air-cooled
Displacement	505 cm³ (30.8 cu in)
