Lombardini LDW 702 Repair Manual

REG. CODE
1-5302-351
MODEL N°
50563
DATE OF ISSUE
04.90
REVISION 04
DATE
15.11.99
ENDORSED
COMPILER TECO/ATI
30
GENERAL
I
7107-1460-074
7107-1460-056
(See pg. 55 for details)
PART No.

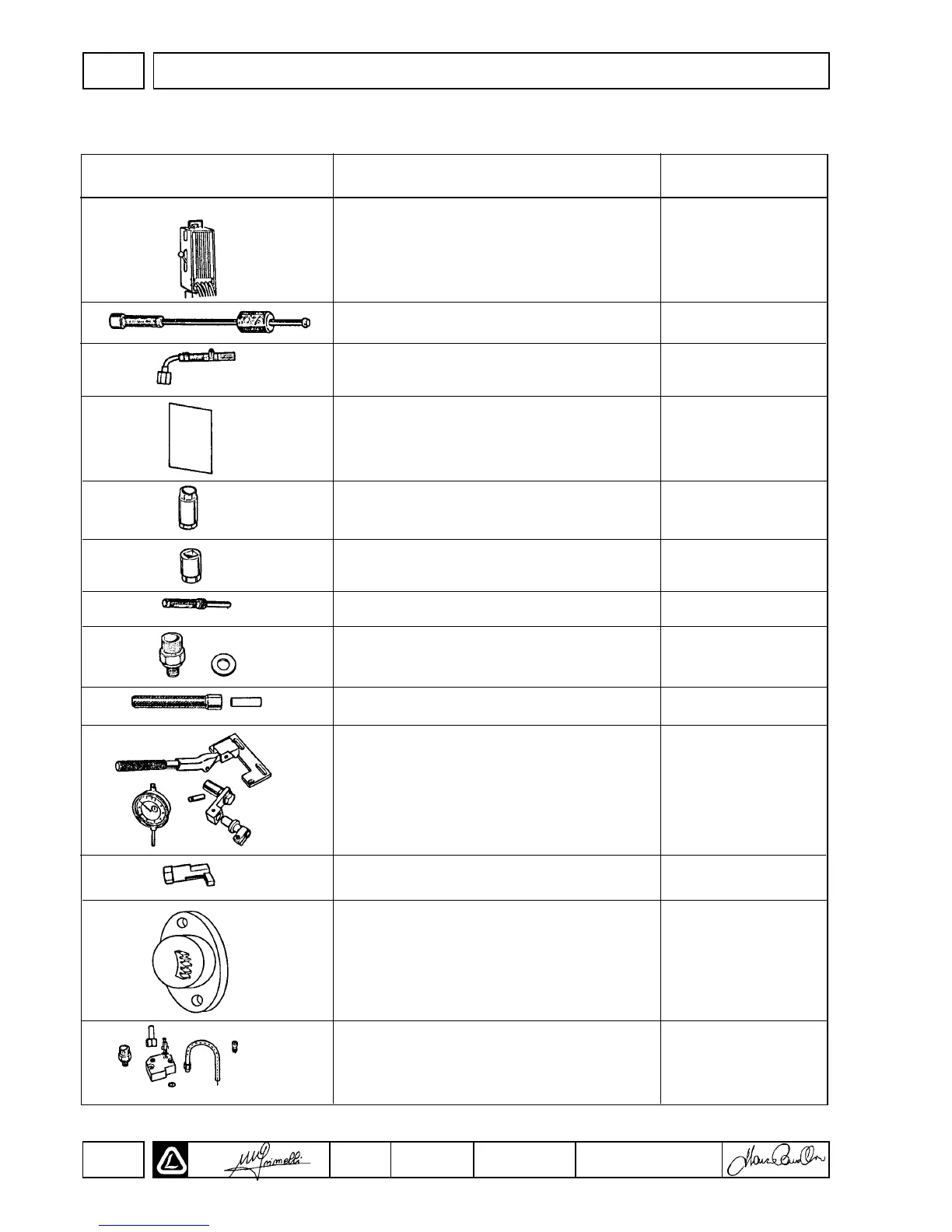

SPECIAL TOOLS
DESCRIPTION
Fuel delivery equalization tool. Allows the
adjustment of individual unit injector fuel
delivery.
7107-1460-090
Pre-chamber removal tool.
7107-1460-030
Static timing tool
7107-1460-024
Main bearing cap lateral seal installation tool. 7107-1460-053
Unit injector ring nut tool.
7107-1460-029
Pre-chamber ring nut tool. 7107-1460-027
Pre-chamber index.
7107-1460-031
Union for static timing adjustment/ testing.
7107-1460-028
Valve guide seal installation tool. 7107-1460-047
T.D.C. determination fixture.
7107-1460-048
Timing Belt tension tool. 7107-1460-049
Flywheel/ Ring gear engine locking tool. 7107-1460-051
Static timing kit for “low pressure” testing/
adjustment.

Lombardini LDW 702 Specifications

General

Engine Type	Diesel
Cylinders	2
Displacement	686 cc
Fuel System	Indirect injection
Starting System	Electric
Cooling System	Liquid
