LS tractor LB1100 Series User Manual

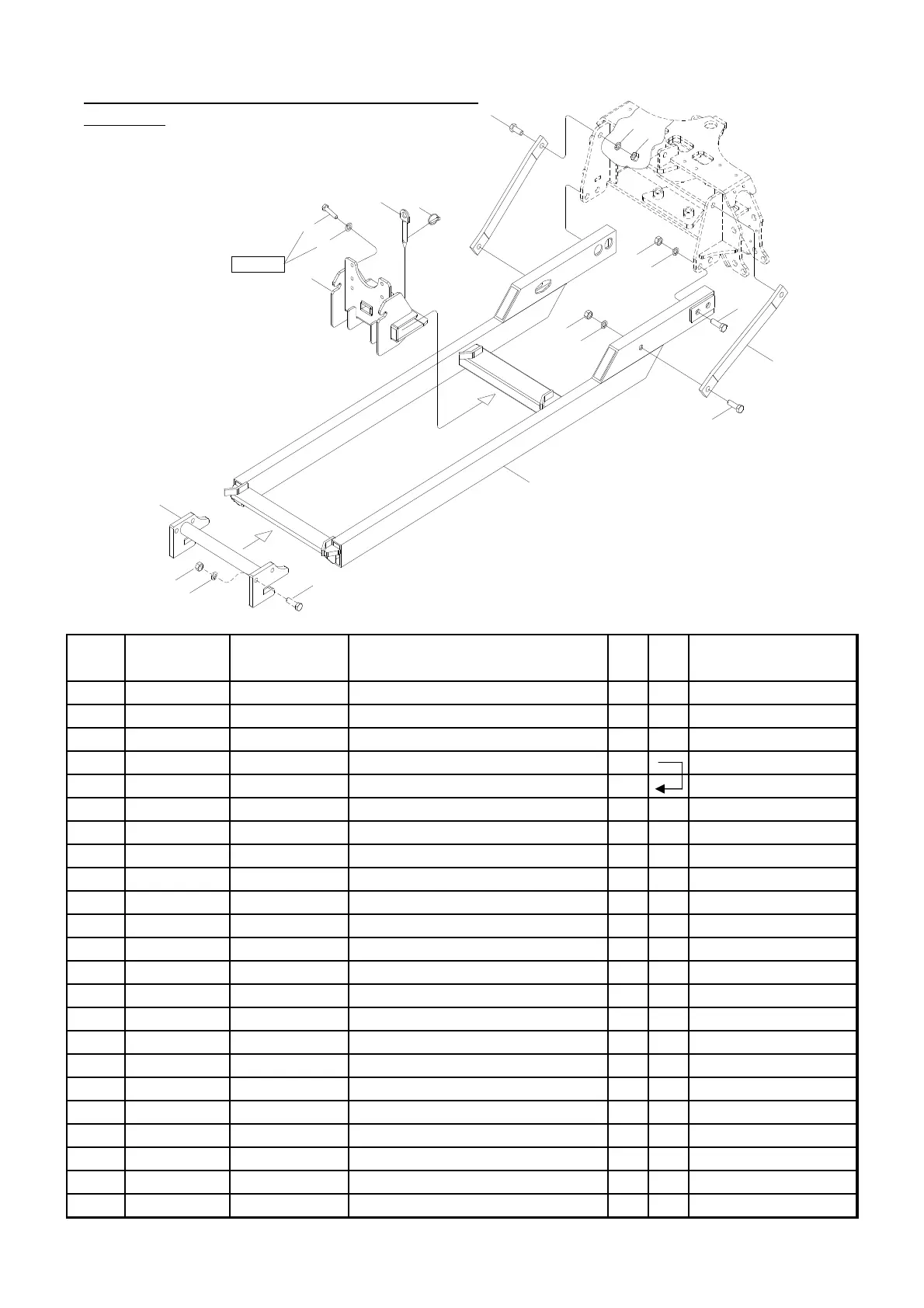

SUBFRAME ASSEMBLY
-S3010
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
0 40231122 FTS70-00000 SUBFRAME ASS'Y 1
1 40231123 FTS70-10100 CROSS BAR W.A. 1
2 40231124 FTS70-10200 RAIL W.A. 1
3 40231125 FTS70-10300 BRACKET_MID W.A. 1
40256021
FTS70-10300-01 BRACKET_MID W.A. 1 2010.06.25~
4 40231116 DK05-0101-02 BRACE 2
5 40230905 14132-20120 PIN 2
6 40230904 14021-1000 RING PIN 2
7 40228623
10191-M1406-60
HEX.BOLT-HT, M14-2.0P 60L 4
8 40230601
10191-M1406-40
HEX.BOLT-HT, M14-2.0P 40L 6
9 40230894
10191-M2007-70
HEX.BOLT-HT, M20-2.5P 70L 4
10 40230895
10191-M2207-70
HEX.BOLT-HT, M22-2.5P 70L 4
12 40228643 10316-M1400 WASHER-SPRING, M14 10
13 40228645 10316-M2000 WASHER-SPRING, M20 4
14 40230899 10316-M2200 WASHER-SPRING, M22 4
15 40228637 10261-M1406 HEX.NUT-HT, M14-2.0P 4
16 40228639 10261-M2007 HEX.NUT-HT, M20-2.5P 4
17 40230898 10261-M2207 HEX.NUT-HT, M22-2.5P 4
1
2
9
9
13
16
13
16
4
10
14
17
6
5
12
8
3
TRACTOR
15
12
7
- 35 -
