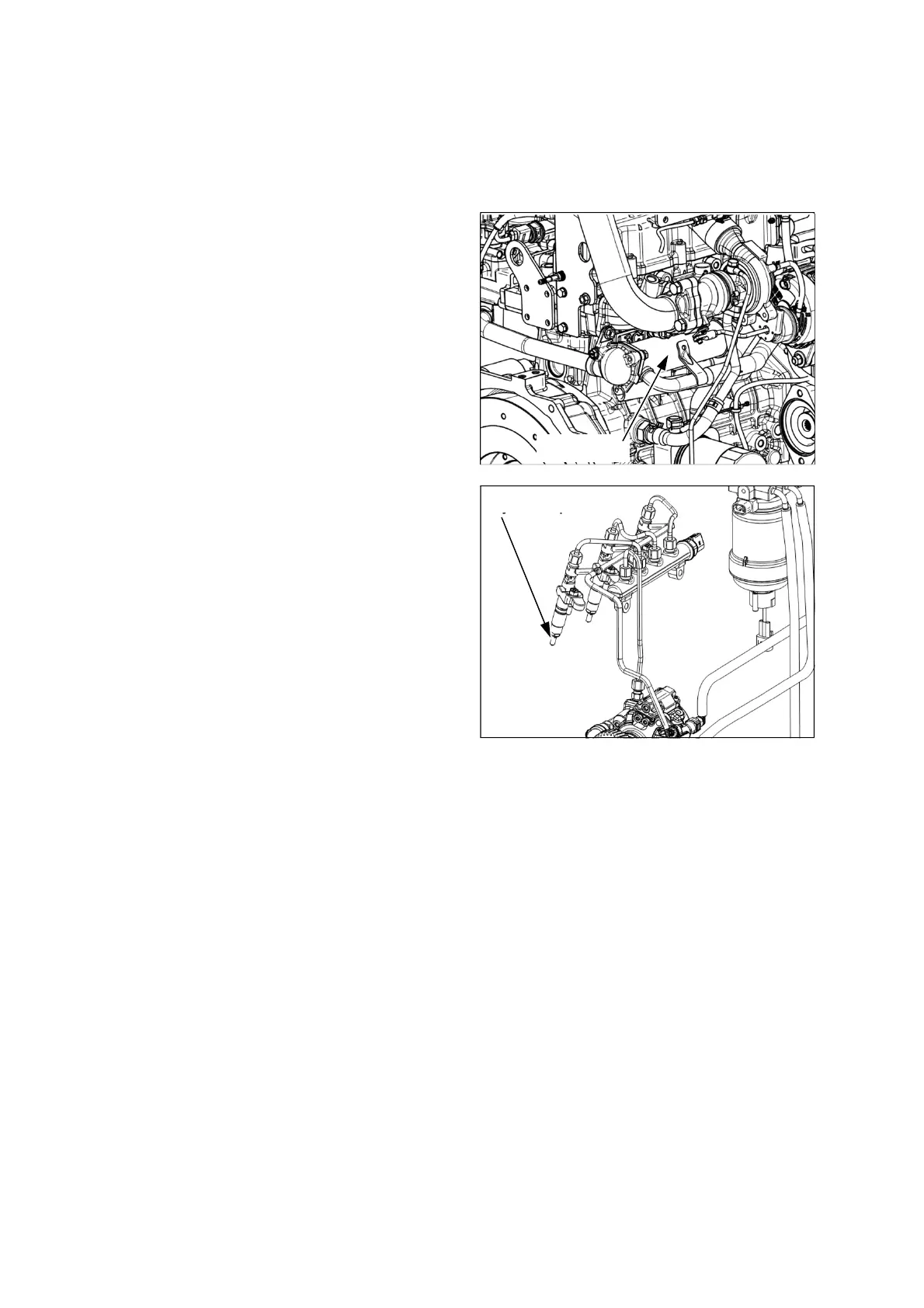

(2) Cleaning
Emission related
parts
The following
items
are major engine
emission
related
parts. These items
are checked
and
cleaned
periodically. But
it is performed by
special eng
ine
service experts.
Contact your
authorized local
dealer for check.
-.
EGR Cooler
-. Injector Tips
EGR Cooler
Injector Tips
186
188
Table of Contents
Table of Contents
9
General Notices for Safety
15
Note to the Owner - General Information
15
Before Using the Tractor
17
Manual Scope and Required Training Level
19
Metric and Imperial Units Abbreviations
21
Product Identification Number (PIN)
23
Operator's Manual Storage
25
Tractor Orientation
26
Safety Precautions (Read this for Safety before Using)
27
Notices before Using the Tractor
27
Notices When Starting Engine
31
Notices While Operating/Using the Tractor
32
Notices When Connecting Implement
34
Notices When Towing the Tractor
35
Notices When Transporting the Tractor
35
Notices When Servicing the Tractor after Work
36
Notices When Handling Diesel Fuel
37
Notices When Leaving the Tractor
38
Notices Relating to Toxic Substances
38
Tractor Stability
39
Ecology and the Environment
42
Symbols
44
Safety Decals
45
Instructional Decals
52
Long-Term Storage
56
Preparation for Storage
56
Check & Maintenance During Storage
57
Preparation for Reuse
58
Instruction for Safe Operation
59
The Name of each Part
59
Boarding and Exiting the Tractor
60
Boarding the Tractor
60
Driver's Seat (HST Type)
61
Seat Adjustment
62
Seat Belt
63
Exiting the Tractor
63
Safety Device
64
Hood (Bonnet)
64
Fender
64
PTO Safety Cover and Protection Cap
64
Roll-Over Protective Structure (ROPS)
65
Instruments and Controls
67
Instrument Panel and Front Controls
67
Instrument Panel
69
Key Switch
75
Turn Signal Light Switch
76
Light Switch
77
Hazard Warning Light Switch
78
Horn Switch
79
Grille Work Light Switch
79
DPF Switch
80
PTO Switch
85
PTO Mode Switch
85
Shuttle Lever (Mechanical)
86
Throttle Lever
86
Throttle Pedal (Mechanical)
87
Clutch Pedal (Mechanical)
87
Brake Pedals
88
Cruise Control Switch (HST Type)
89
HST Forward/Reverse Pedal (HST Type)
89
Parking Brake Lever
90
Left / Right-Hand Controls
91
Main Gear Shift Lever (Mechanical)
91
Range Gear Shift Lever
92
Differential Lock Pedal
93
Work Light Switch
94
Four Wheel Drive Lever (4WD)
94
Hydraulic System
95
Safety Precautions
95
Steering System
96
Hydraulic Lift Control (MHL)
97
Remote Control Levers and Quick Couplers (Optional)
99
Joystick Lever (if Fitted)
100
Hydraulic System Diagram
101
Operation and Work
103
How to Handle New Tractor
103
Check Points
103
Notices in Handling New Tractor (Engine Brake-In Procedure)
103
Engine Start and Stop
104
Engine Start
104
Start in Cold Weather
106
Engine Stop
107
How to Drive and Stop
108
Transmission Warm-Up in Cold Weather
108
How to Drive
109
Changing Speed
111
Emergency Stop
112
Stopping Tractor
113
Parking
114
Handling the Turbocharger (if Fitted)
114
Transport on Public Roads
115
Safety Rules When Driving Tractor on the Roads
115
Light Operation
116
7-Pole Connector (Optional)
117
Notices When Towing the Tractor
118
Notices When Transporting the Tractor
120
Field Operations
121
Rear 3-Point Linkage
121
Power Take-Off (PTO) Operation
125
Hitch and Drawbar (Optional)
127
Technically Maximum Permissible Mass
128
Tires and Load Capacity
129
Adjusting Wheel Tracks and Tire Replacement
130
Using Front-End Loader (if Fitted)
131
Adjusting Steering Angle
134
Recommended Maximum Specification of Implements
135
Ballasting Weights (Optional)
136
Driving Speed
139
Lubrication and Maintenance
141
General Information
141
Tightening Torque for Normal Assembly
142
Standard Torque Data for Hydraulics
144
General Specification - Diesel Fuel
147
Biodiesel Fuel
148
Refueling the Tractor
150
Change Engine Coolant to Organic Acid Technology (OAT) Coolant
151
Access for Maintenance
152
Maintenance Chart
154
Lubricants and Capacity
158
First 50 Hour Check
159
When the Warning Indicator Lights
160
Drain Water from Fuel Filter
160
Engine Oil Pressure Indicator
161
Battery Charging Indicator
161
Check before Starting (Daily Check)
162
Engine Oil
162
Fuel Tank
163
Instrument Panel & Indicators
163
Turn Signal Lights, Lights and Horn
164
Engine Coolant
165
Air Cleaner (Dry Type)
165
Cleaning of Radiator and Radiator Screen
166
Tightening State of Bolts and Nuts of each Part
167
Adjustment of Clutch Pedal Play (Mechanical Type)
168
Adjustment of Brake Pedal Play
169
Adjusting HST Control Linkage (HST Type)
170
Every 50 Hour Check
171
Lubricating Grease Nipple
171
Cleaning of Radiator and Radiator Screen
171
Checking Transmission Oil
172
Checking Front Axle Oil
172
Battery Check
172
Air Cleaner (Dry Type)
172
Hydraulic Hoses and Leakage
173
Every 100 Hour Check
174
Replacing Engine Oil and Filter
175
Every 300 Hour Check
175
Replacing Hydraulic Oil Filter
176
Tension Adjustment of Engine Belt
178
Toe-In
178
Cleaning Fuel Tank
179
Every 500 Hour Check
180
Replacing Air Cleaner Element (Dry Type)
181
Every 600 Hour Check
182
Changing Front Axle Oil
182
Changing Transmission Oil
182
Every 1000Hr or 1-Year Check
183
Adjusting Engine Valve Clearance
183
Checking Nozzle Injection Pressure
183
Every 1500Hr or 2-Year Check
184
Replacing Engine Coolant
184
Cleaning Emission Related Parts
187
Every 3000Hr Check
188
Cleaning Emission Related Parts
188
General Maintenance (When Required)
189
Air-Bleeding from Fuel System
189
Fuse & Main Fuse
191
Battery Handling and Notices
193
Alternator and Drive Belt - Check
197
Tail/Brake Light Bulb and Turn Signal Light Bulb- Replace
198
Headlight Bulb - Replace
200
Touch-Up Paint Color
201
Troubleshooting
202
