FW003 - VS-KB30 FW Update Manual 2

3 Master firmware update

3.1 Save master firmware to USB flash disk

3.1.1 Save the “.bin” firmware file in the root directory (not inside of a folder)

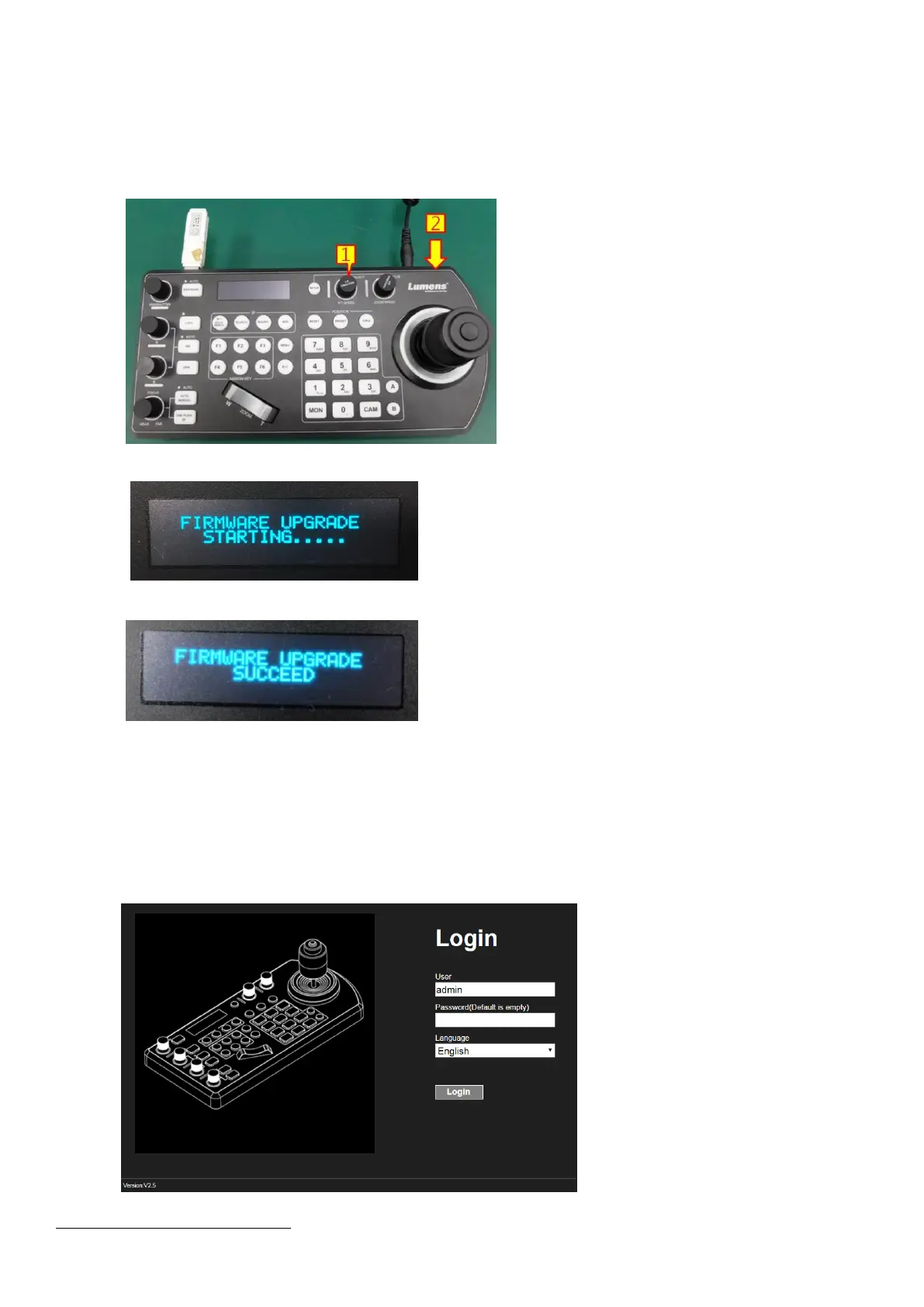

3.2 Place the flash drive into the USB port on the back panel of the VS-KB30

3.3 Hold down the L/R Direction knob and click the power button into the “On” position.

3.4 The keyboard will display a confirmation that the upgrade is starting. (around 10 secs)

3.5 When keyboard shows “FIRMWARE UPGRADE SUCCEED”, power off unit and reboot.

4 Webpage firmware update

4.1 Set your PC or laptop and VS-KB30 in the same network.

4.2 Type IP address of VS-KB30 on browser to access the login page.

4.2.1 User：admin

4.2.2 Password：default is empty
