10
Vacuum cover
Cleaner operations can be performed by connecting the cut-
out tool to Makita vacuum cleaner or dust collector.
OPERATION

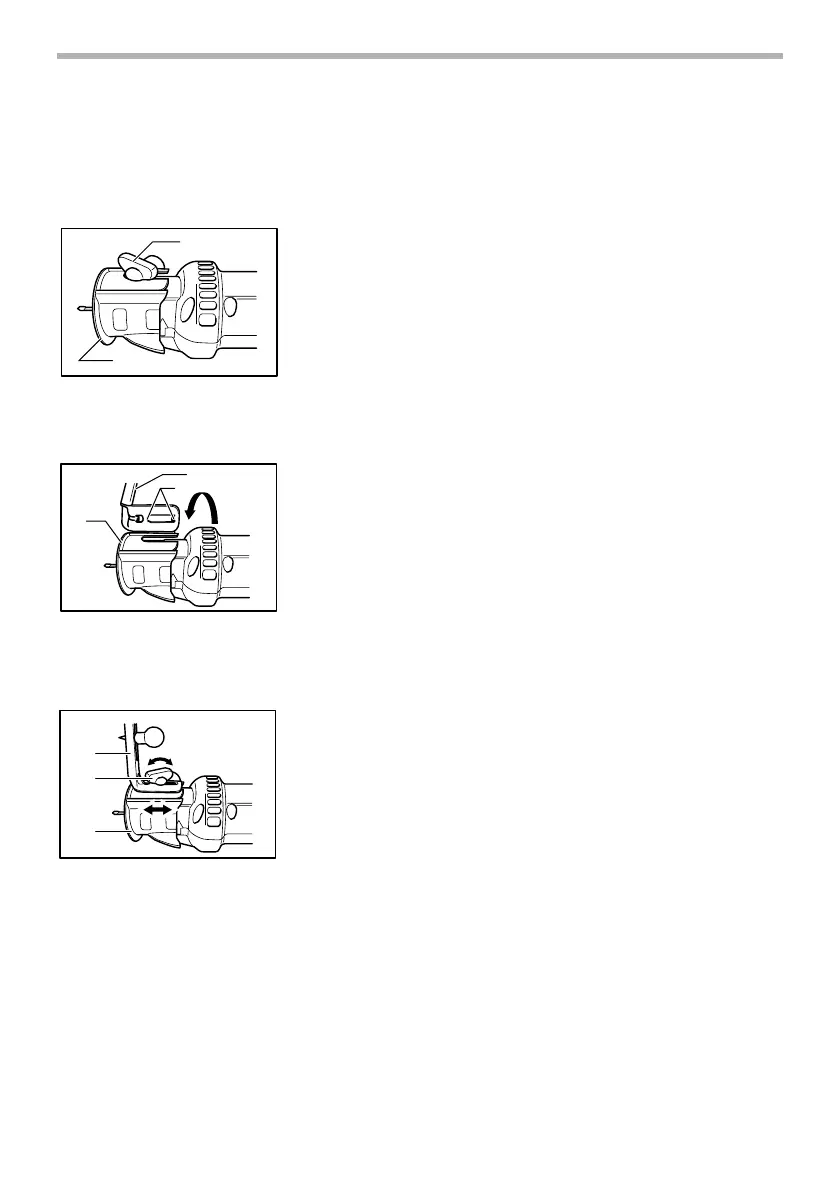

Installing vacuum cover
Loosen the thumb screw and remove the shoe. Attach the
vacuum cover, and fasten it securely using the thumb screw.
OPERATION
Installing vacuum cover with circular guide
Release the thumb screw which serves to secure the vac-
uum cover. Align the projections in the circular guide with the
grooves in the vacuum cover, and secure the vacuum cover
and circular guide using the thumb screw.
To adjust the cutting depth, proceed first by loosening the
thumb screw and then by sliding the vacuum cover and circu-
lar guide together. After completion of the adjustment, tighten
the thumb screw securely.
OPERATION
1. Thumb screw
2. Vacuum cover
001636
1
2
1. Circular guide
2. Projections
3. Vacuum cover
001637
3
1
2
1. Circular guide
2. Thumb screw
3. Vacuum cover
4. Loosen
5. Tighten
001638
1
2
3
4
5
