P 2 / 6
Repair

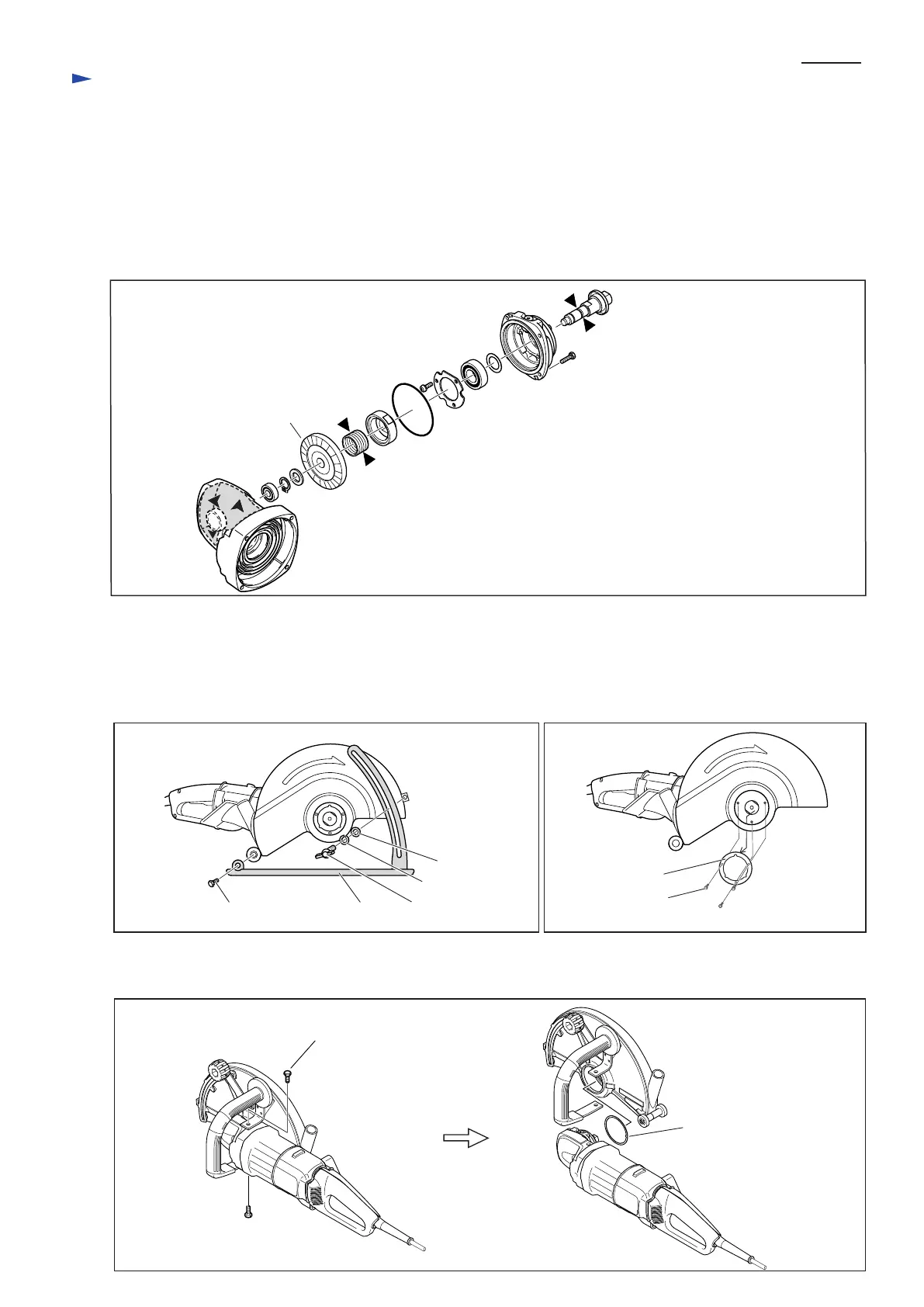

[2] LUBRICATION
Apply Makita grease N. No.1 to the following portions designated by black triangle to protect parts and product from
unusual abrasion.
Bearing extractor (Makita Part No.1R269), Retaining ring S and R pliers (Makita Part No.No.1R291),
Water pump pliers
[3] DISASSEMBLY/ASSEMBLY
[3] -1. Removing Base and Wheel Cover
Fig. 2 Fig. 3
[1] NECESSARY REPAIRING TOOLS
CAUTION: Remove the wheel from the machine for safety before repair/ maintenance !
1) Remove Base by unscrewing an M8x20 Wing bolt and two M6 Shoulder hex bolts. (Fig. 2)
2) Remove Pressure plate by unscrewing three M5x14 Hex bolts. (Fig. 3)
Pressure plate
Hex bolt M5x14
(3pcs)
Fig. 4
3) Remove two M8x20 Hex bolts. The Wheel cover section can now be removed. (Fig. 4)
Note: Be careful not to lose Plate B.
Shoulder hex bolt M6 (2pcs) Base
Spring washer 8
Flat washer 8
Wing bolt M8x20
Hex bolt M8x20 (2pcs)
Plate B
Fig.1
Gear room in Gear housing (Item No. 32): 40g
The grease protects the gear teeth of Spiral bevel gear 57.
The outer periphery of
Lock spring 24 (Item No. 26): 1g
The installed part of
Spindle complete (Item No. 17)
into Spiral gear 57: 1g
(Spiral bevel gear 57)
To Next Page
