P 2/ 13
[2] LUBRICATION
Apply Makita grease N. No.1 to the following portions designated with the black triangle to protect
parts and product from unusual abrasion.
[1] NECESSARY REPAIRING TOOLS
CAUTION: Unplug the tool and remove the saw blade from the machine for safety
before repair/ maintenance!

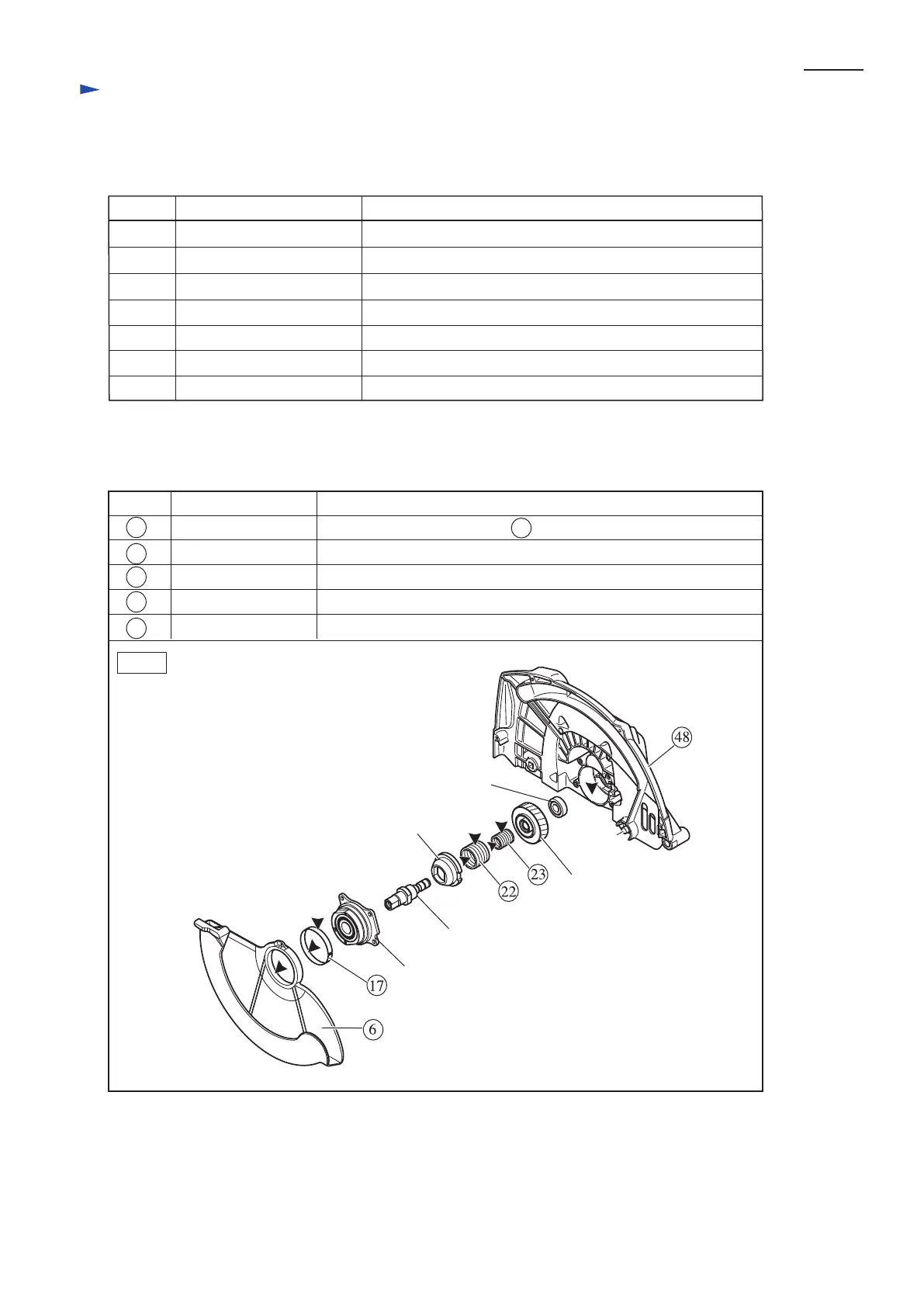

Fig. 1
Repair
DescriptionCode No. Use for
Gear extractor (large)1R045 Removing Helical gear 39 and Spindle
45-degree set square1R207
90-degree set square1R208 Setting Saw blade at 90 degrees to Base plate
Bearing extractor 1R263 Removing Bearing box
Bearing extrator1R269 Removing Ball bearing 6001
Retaining ring S & R pliers1R291 Removing Retaining ring S-12
Center attachment1R346 Attaching to 1R045 when removing Helical gear 39
Item No. Description
Safety cover
Inside of Loop portion where 17 Thickness ring contacts
Whole portion
Whole portion
Whole portion
Gear room where Helical gear 39 rotates
Thickness ring
Lock spring 27
Lock spring 20
Blade case Complete
Portion to lubricate
Setting Saw blade at 45 degrees to Base plate
Bearing box
Spindle
Lock sleeve
Helical gear 39
Ball bearing 6001
6
17
22
23
48
