P 10/ 18
Repair

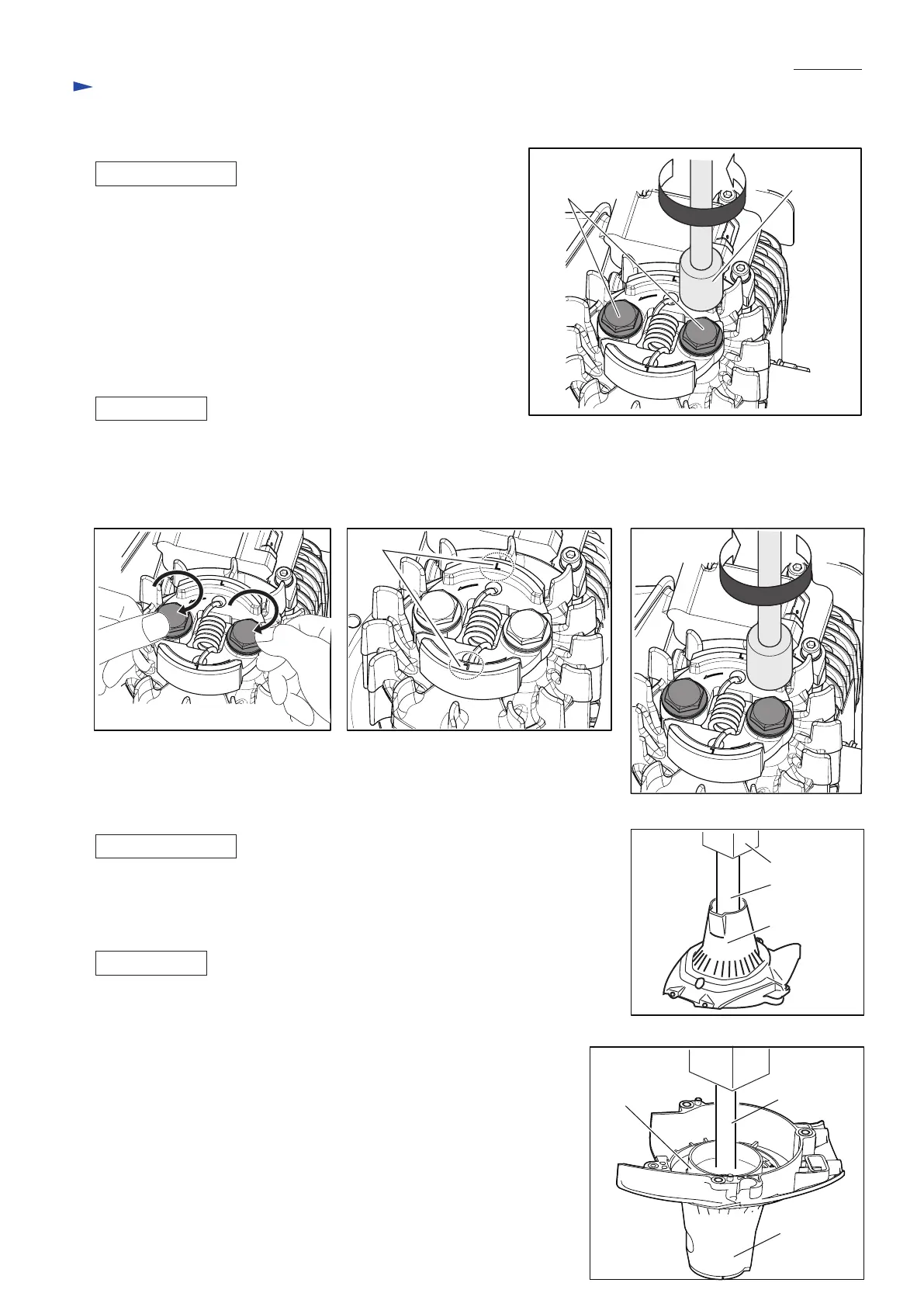

[4] DISASSEMBLY/ASSEMBLY
[4]-6. Clutch
DISASSEMBLING
DISASSEMBLING
ASSEMBLING
Note: (1) Clutch can be easily removed with Impact driver
without holding the piston.
(2) Do not remove Spark plug as compressed air resistance
has to be used for the disassembling.
(3) Plug cap with Plug cap spring has to be removed from
Spark plug.
• Loosen two M6x25 shoulder hex bolts by turning each bolt
counterclockwise using Cordless impact driver with 13mm
Socket bit. (Fig. 34)
(1) Remove Clutch case section from the engine.
(2) Remove Retaining ring S-12 with 1R291 from clutch case section.
(3) Remove Clutch drum from Clutch case section with 1R247 and Arbor press.
(Fig. 38)
(1) Put Clutch case on the table of Arbor press vertically, then pressfit Clutch drum
into Ball bearing 6201LLU with 1R286 and Arbor press as drawn in Fig. 39.
(2) Set Retaining ring S-12 in place with 1R291.
ASSEMBLING
• Because M6x25 shoulder hex bolt (2pcs.) has the stepped shape. First tighten it by hand (Fig. 35), next use cordless impact
driver. (Fig. 37)
Note: Face the marking of L to the outside as drawn in Fig. 36.
Turn two M6x25 shoulder hex bolts clockwise using Cordless impact driver with 13mm Socket bit. (Fig. 37)
Fig. 34
Fig. 35
Fig. 38
Fig. 39
Fig. 36 Fig. 37
Clutch case
1R247
Arbor press
13mm
Socket bit
M6x25 shoulder
hex bolt (2pcs.)
[4]-7. Clutch drum
L
Clutch drum 1R286
Clutch case
To Next Page
