11
1
2
3
015363

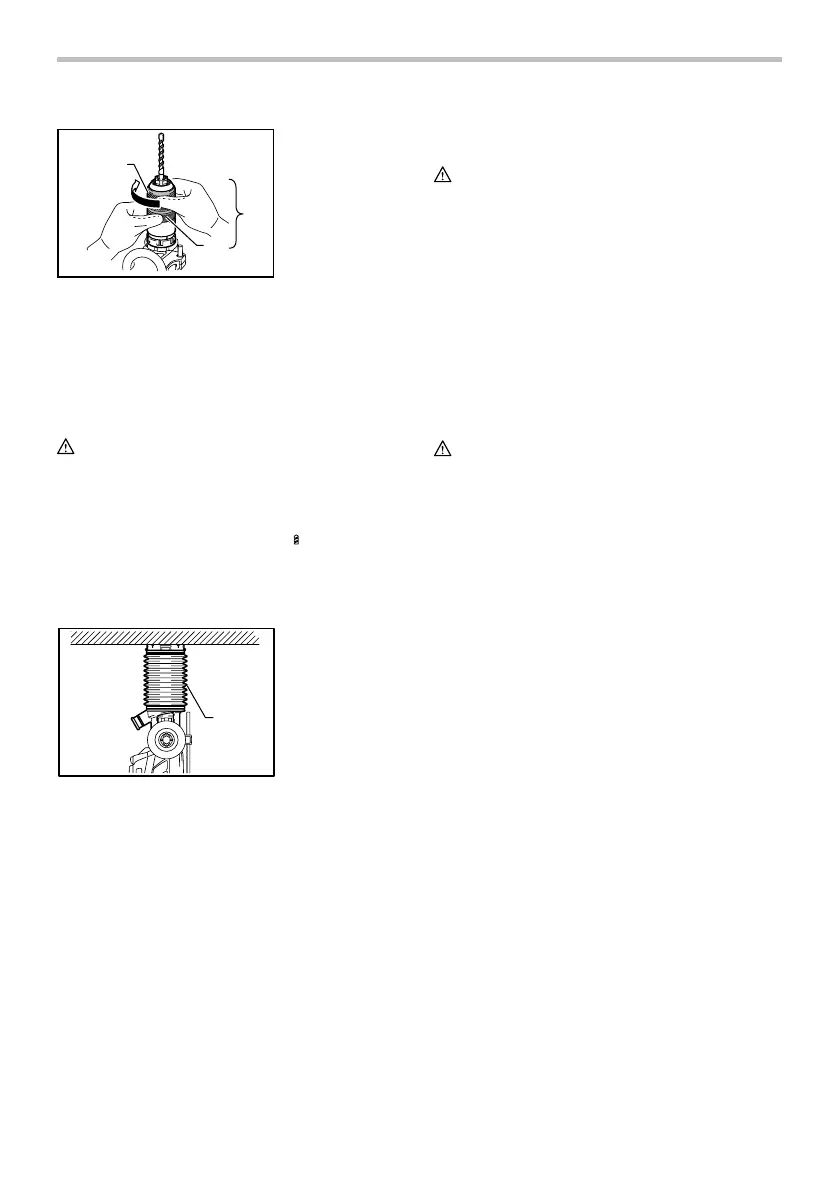

Hold the ring and turn the sleeve counterclockwise to
open the chuck jaws. Place the bit in the chuck as far as
it will go. Hold the ring firmly and turn the sleeve
clockwise to tighten the chuck.
To remove the bit, hold the ring and turn the sleeve
counterclockwise.
Diamond core drilling
CAUTION:
• If performing diamond core drilling operations
using "rotation with hammering" action, the
diamond core bit may be damaged.
When performing diamond core drilling operations,
always set the change lever to the
position to use
"rotation only" action.
Operation when using the dust cup
(optional accessory)
1
015359
Operate the tool with the dust cup against the ceiling
surface.
NOTE:
• The dust cup (optional accessory) is intended only
for drilling in the ceramic workpiece such as
concrete and mortar. Do not use the tool with the
dust cup when drilling in metal or similar. Using the
dust cup for drilling in the metal may damage the
dust cup due to the heat produced by small metal
dust or similar.
• Empty the dust cup before removing a drill bit.
• When using the dust cup, make sure that the dust
cap is mounted on it securely.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• SDS-Plus Carbide-tipped bits
• Core bit
• Bull point
• Diamond core bit
• Cold chisel
• Scaling chisel
• Grooving chisel
• Drill chuck assembly
• Drill chuck S13
• Chuck adapter
• Chuck key S13
• Bit grease
• Side grip
• Depth gauge
• Blow-out bulb
• Dust cup
• Safety goggles
• Plastic carrying case
• Keyless drill chuck
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
1. Dust cup
1. Quick change
drill chuck
2. Sleeve
3. Ring
