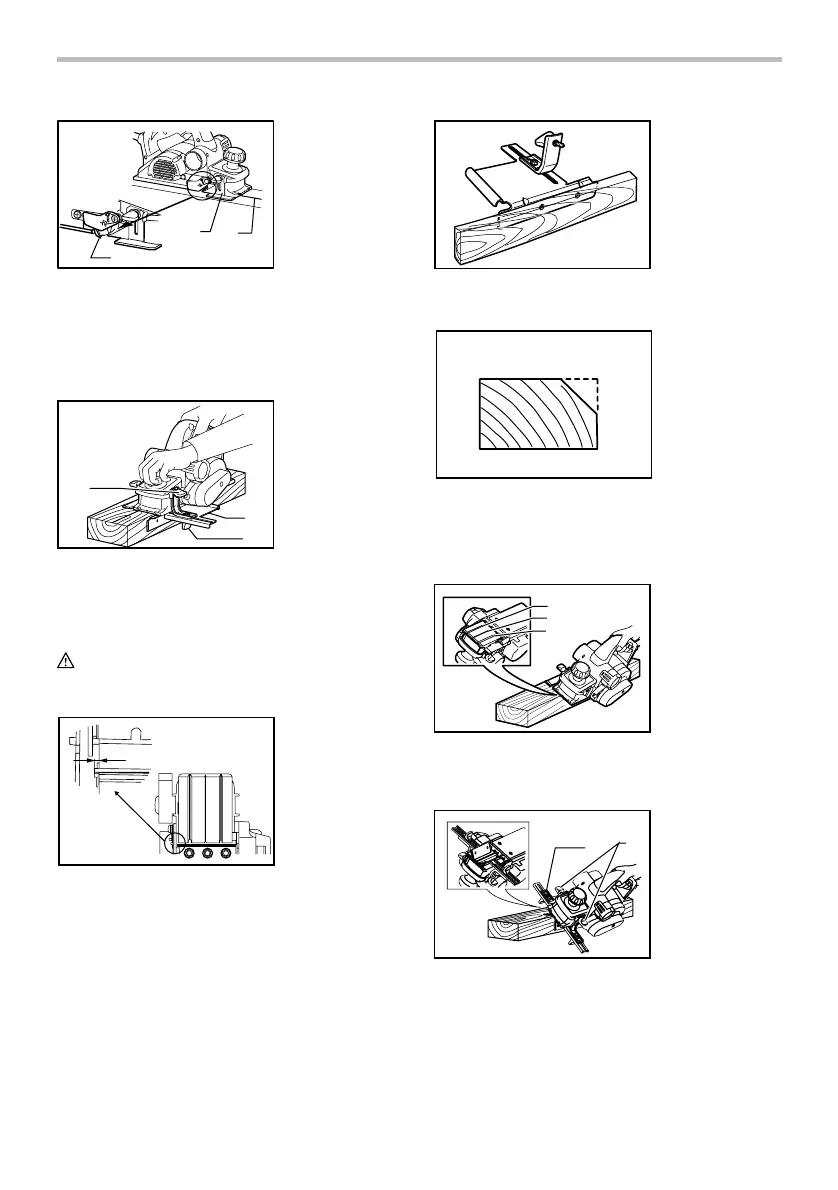

Install the edge fence on the tool and secure it with the
washer and thumb screw (A). Loosen the thumb screw
(B) and adjust the edge fence until it comes in contact
with the side of the workpiece. Then tighten the thumb
screw (B) securely.
1
2
3
007648
When planing, move the tool with the edge fence flush
with the side of the workpiece. Otherwise uneven
planing may result.
CAUTION:
• The blade edge should be made to protrude
outside slightly (0.2 mm - 0.4 mm) for shiplapping.
0.2 - 0.4mm
007649
You may wish to add to the length of the fence by
attaching an extra piece of wood. Convenient holes are
provided in the fence for this purpose, and also for
attaching an extension guide (optional accessory).
007714
Chamfering
003634
To make a chamfering cut as shown in the figure, align
one of three "V" grooves in the front base with the edge
of the workpiece and plane it.
1
2
3
007650
Use of chamfering rule (optional accessory) assures
more tool stability when shiplapping.
1
2
007653
To install the chamfering rule, remove two screws on
both sides of the front of the tool and set the depth of cut
to 4 mm. And then install it on the front base of the tool
and secure it the screws as shown in the figure.
When doing a great amount of chamfering, place an
edge of chamfering rule so that it contacts workpiece
1. Chamfering rule
2. Screws
1. V groove
(medium
amount of
chamfering)
2. V groove (small
amount of
chamfering)
3. V groove (great
amount of
chamfering)
1. Screw (A)
2. Screw (B)
3. Edge fence
1. Blade edge
2. Cutting line
3. Depth guide

Makita KP0810 Specifications

General

Input power	850 W
Power source	AC
Planning width (max)	82 mm
Chip thickness (max)	- mm
Soft grip	Yes
Product color	Black, Blue

Weight and Dimensions

Depth	290 mm
Width	168 mm
Height	176 mm
Weight	3300 g
