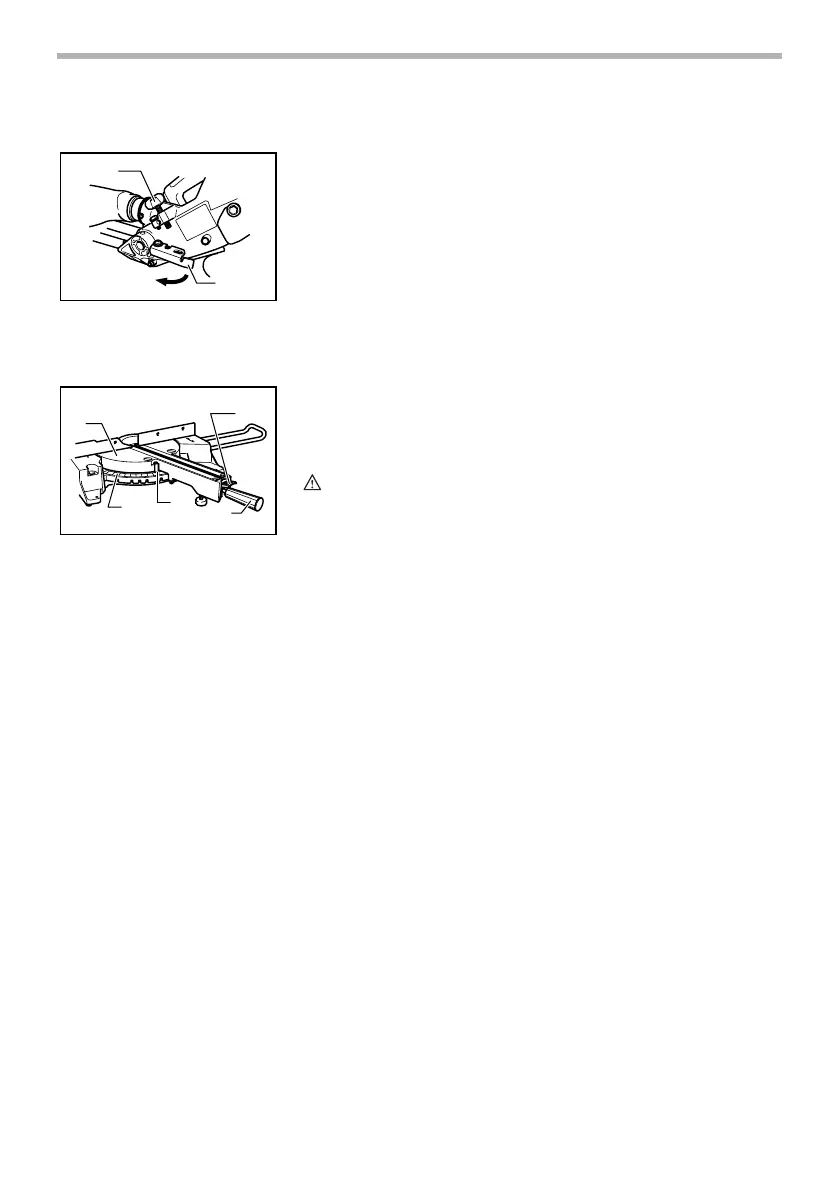

Stopper arm
The lower limit position of the blade can be easily adjusted with the stopper
arm. To adjust it, move the stopper arm in the direction of the arrow as shown
in the figure. Adjust the adjusting screw so that the blade stops at the desired
position when lowering the handle fully.
Adjusting the miter angle
Loosen the grip by turning counterclockwise. Turn the turn base while pressing
down the lock lever. When you have moved the grip to the position where the
pointer points to the desired angle on the miter scale, securely tighten the grip
clockwise.
CAUTION:
• When turning the turn base, be sure to raise the handle fully.
• After changing the miter angle, always secure the turn base by tightening
the grip firmly.
1. Adjusting screw
2. Stopper arm
1
2
003928
1. Turn base
2. Lock lever
3. Miter scale
4. Pointer
5. Grip
1
2
3
4
5
003929
