Makita LW1401 Technical Information

5-3 DISASSEMBLY/ASSEMBLY
5-3-1 Armature
5-3-1-1 Disassembling
5-3-2 Handle section
5-3-2-1 Disassembling
5-3-2-2 Assembling

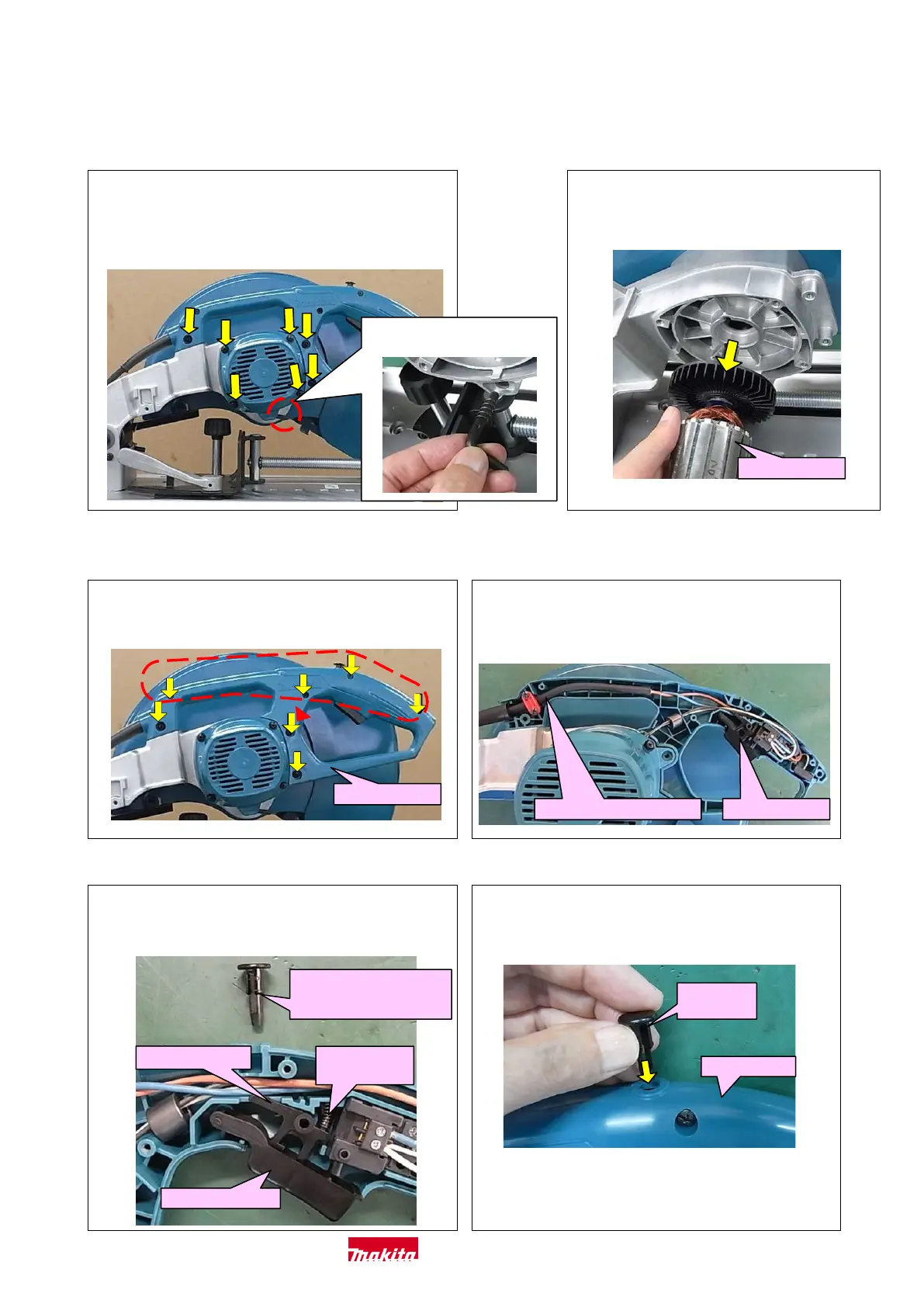

Fig. 1-1
1) Remove Carbon brush (45).
2) Unscrew seven M5×40 P.H. screws (34, 46) and
remove Motor section with handle section from the
main unit.
Fig. 1-2
3) Pull out Armature (51) by hand.
4) Pull out Ball bearing (50, 54) with 1R269.
Armature (51)
Note: Be careful not to lose off
Stopper (55).
Fig. 2-1
1) Unscrew four 4×18 Tapping screws (32) and three
M5×40 P.H. Screws (34) and remove Handle L (30).
Handle L (30)
Fig. 2-2
2) Remove Power supply cord (40) and Switch (24) etc.
Switch (24)
Fig. 2-3
1) Set Switch lock (26), Switch lever (25) and
Compression spring 4 (27) in place.
Note: Fix Switch button
(31) after Handle L (30)
is installed.
Compression
spring 4 (27)
Switch lock (26)
Switch lever (25)
Fig. 2-4
2) Press Switch button (31) into Handle L (31) with a
click sound.
Switch
button (31)
Handle L (31)
Power supply cord (40)
Makita Corporation 5 / 15

Makita LW1401 Specifications

General

No Load Speed	3, 800 RPM
Amperage	15 A
Voltage	120 V
Blade Diameter	14 in
Cutting Capacity (Round)	127 mm
Arbor Size	1 in
Max Cutting Depth at 90°	127 mm
