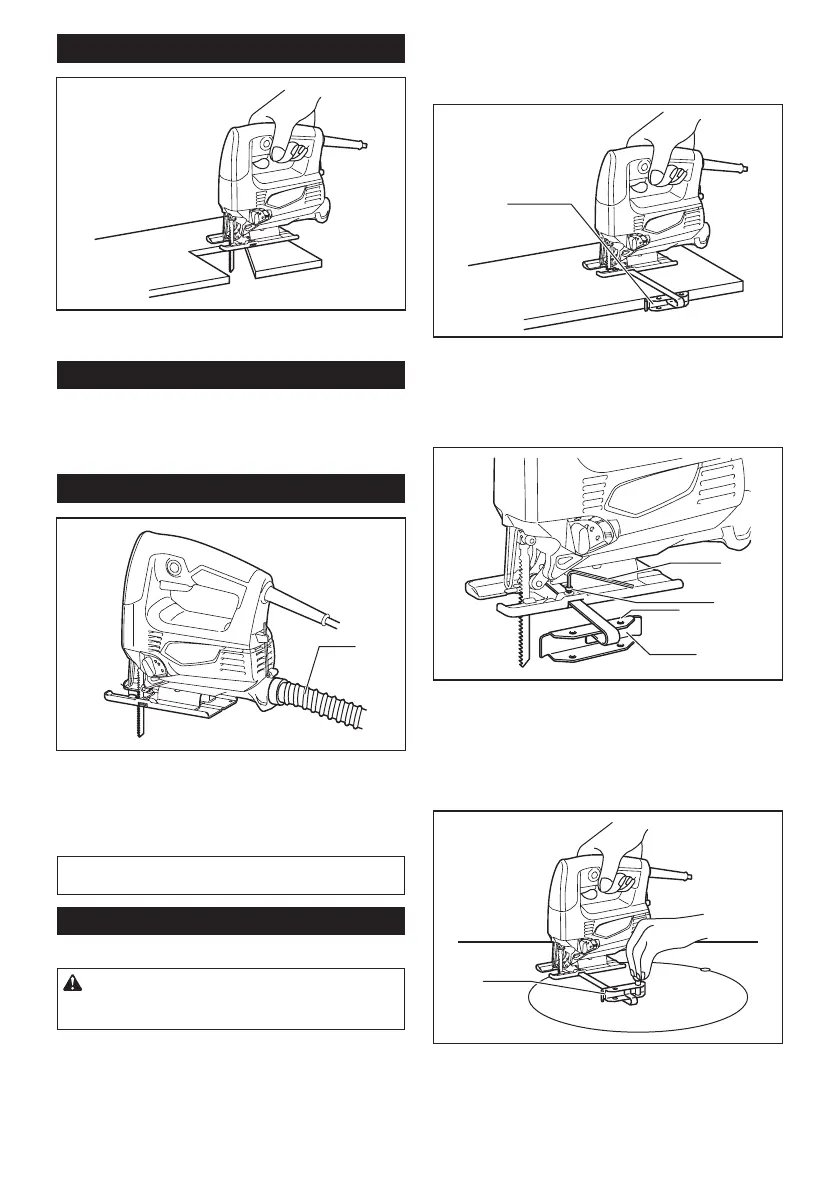

8 ENGLISH
Finishing edges
Totrimedgesormakedimensionaladjustments,runthe
jigsawbladelightlyalongthecutedges.
Metal cutting
Always use a suitable coolant (cutting oil) when cutting
metal.Failuretodosowillcausesignicantjigsaw
blade wear. The underside of the workpiece can be
greased instead of using a coolant.
Dust extraction
1
►1. Hose
Clean cutting operations can be performed by con-
necting this tool to a Makita vacuum cleaner. Insert the
hose of the vacuum cleaner into the hole at the rear of
the tool.
NOTE: Dust extraction cannot be performed when
making bevel cuts.
Rip fence
Optional accessory
CAUTION: Always be sure that the tool is
switched off and unplugged before installing or
removing accessories.
Straight cuts
When repeatedly cutting widths of 160 mm or less, use
of the rip fence will assure fast, clean, straight cuts.
1
►1. Rip fence (Guide rule)
To install, insert the rip fence into the rectangular hole
on the side of the base with the fence guide facing
down. Slide the rip fence to the desired cutting width
position, then tighten the bolt to secure it.
1
2
3
4
►1. Hex wrench 2. Bolt 3. Fence guide 4. Rip fence
(Guide rule)
Circular cuts
When cutting circles or arcs of 170 mm or less in radius,
install the rip fence as follows.
1
►1. Rip fence (Guide rule)
1. Insert the rip fence into the rectangular hole on the
side of the base with the fence guide facing up.

Makita M4301 Specifications

General

Input power	450 W
Cable length	2 m
Power source	AC
AC input voltage	- V
Stroke length	18 mm
Sound power level	3 dB
Sound pressure level	82 dB
Cutting depth in wood	65 mm
Idle stroke rate (max)	3100 spm
Vibration level (wood)	8 m/s²
Sound level uncertainty	3, 93 dB
Vibration level (steel)	5 m/s²
Cutting depth in non-alloyed steel	6 mm
Vibration level uncertainty (steel)	1.5 m/s²
Soft grip	Yes
Product color	Black, Orange
Bevel capacity (max)	45 °

Weight and Dimensions

Depth	214 mm
Width	75 mm
Height	202 mm
Weight	1900 g
