Makita M8701 User Manual

6 ENGLISH

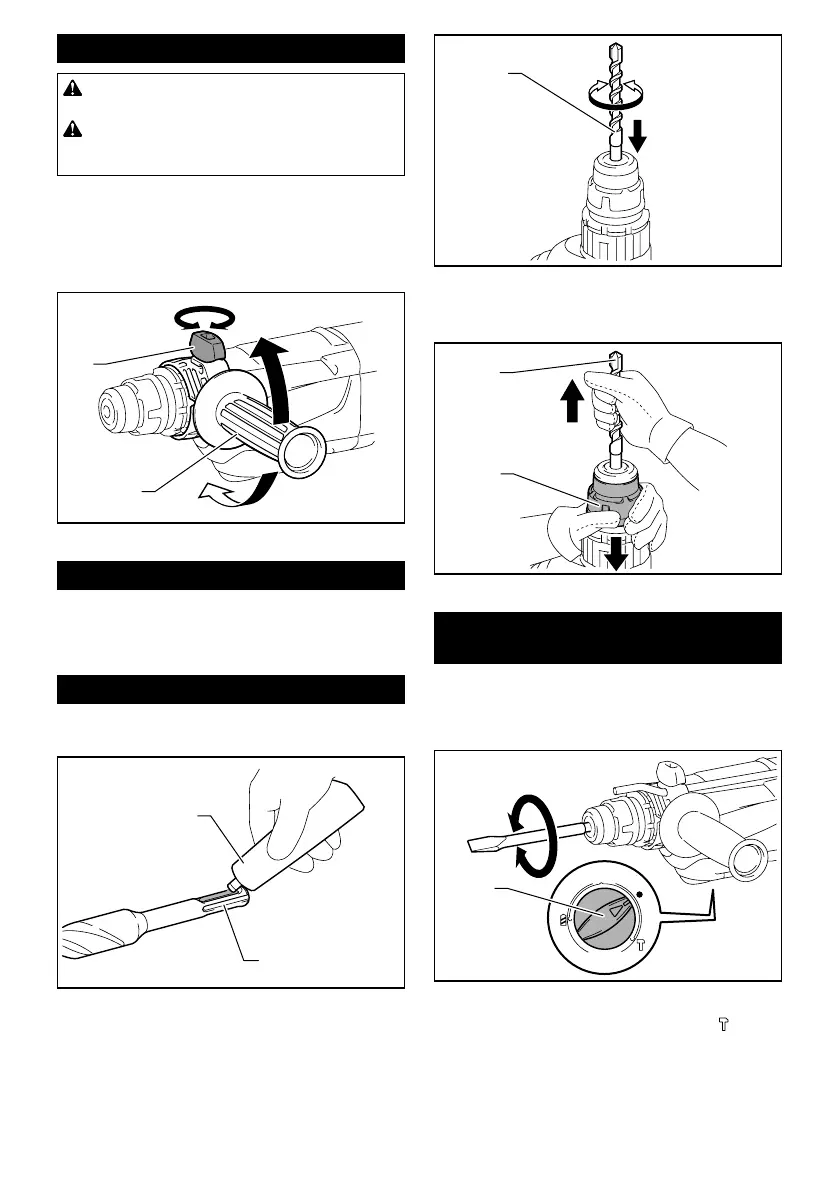

Side grip (auxiliary handle)
CAUTION: Always use the side grip to ensure
safe operation.
CAUTION: After installing or adjusting the
side grip, make sure that the side grip is rmly
secured.
Installthesidegripsothattheprotrusionsonthegript
in between the grooves on the tool barrel. Then tighten
thethumbscrewclockwisetoxthegripatthedesired
position.
The side grip can be swung 360° so as to be secured at
any position.
2
3
4
1
►1. Side grip 2. Thumb screw 3. Tighten 4. Loosen
Grease
Coat the shank end of the drill bit/chisel beforehand with
a small amount of grease (about 0.5 - 1 g).
This chuck lubrication assures smooth action and lon-
ger service life.
Installing or removing drill bit/chisel
Clean the shank end of the drill bit/chisel and apply
grease before installing the drill bit/chisel.
1
2
►1. Shank end of the drill bit/chisel 2. Grease
Insert the drill bit/chisel into the tool. Turn the drill bit/
chisel and push it in until it engages.
After installing the drill bit/chisel, always make sure that
the drill bit/chisel is securely held in place by trying to
pull it out.
1
►1. Drill bit/chisel
To remove the drill bit/chisel, pull the chuck cover down
all the way and pull the drill bit/chisel out.
1
2
►1. Drill bit/chisel 2. Chuck cover
Chisel angle (when chipping,
scaling or demolishing)
The chisel can be secured at the desired angle. To
change the chisel angle, rotate the action mode chang-
ing knob to the O symbol. Turn the chisel to the desired
angle.
1
►1. Action mode changing knob
Rotate the action mode changing knob to the
sym-
bol. Then make sure that the chisel is securely held in
place by turning it slightly.

Makita M8701 Specifications

General

Impact rate	4500 bpm
Rated speed (max)	1200 RPM
Impact energy (max)	2.3 J
Sound pressure level	90 dB
Sound level uncertainty	3 dB
Drilling diameter in wood (max)	32 mm
Drilling diameter in steel (max)	13 mm
Vibration level (metal drilling)	2.5 m/s²
Vibration level (hammer drilling)	16.5 m/s²
Cord length	4 m
Input power	800 W
Power source	AC
AC input voltage	230 V
Chuck type	SDS Plus
Product color	Black, Orange
Adjustable speed	Yes
Uncertainty coefficient (metal)	1.5 m/s²

Weight and Dimensions

Depth	362 mm
Width	71 mm
Height	194 mm
Weight	2700 g
