Makita M8701 User Manual

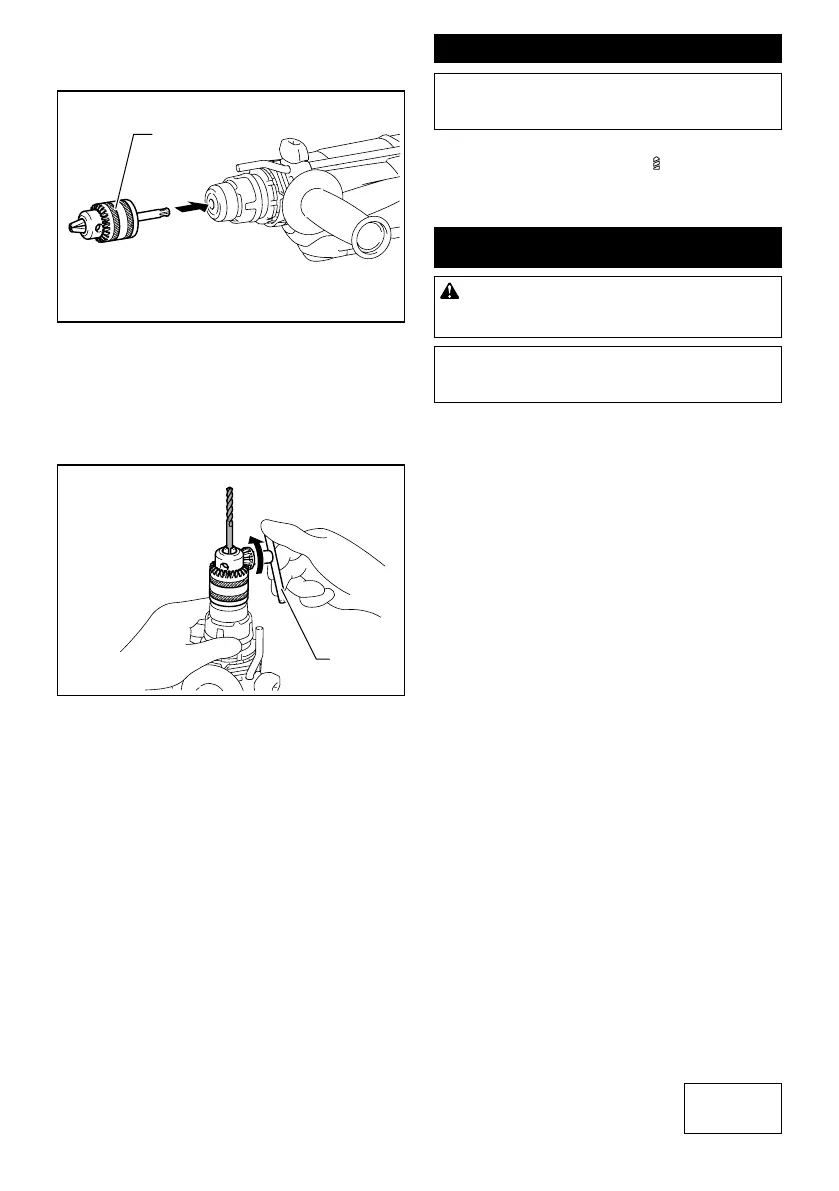

Use a drill chuck assembly (optional accessory). When
installing it, refer to the section “Installing or removing
drill bit/chisel”.
1
►1. Drill chuck assembly (optional accessory)
To install the drill bit, place it in the chuck as far as it will
go.Tightenthechuckbyhand.Placethechuckkeyin
each of the three holes and tighten clockwise. Be sure
to tighten all three chuck holes evenly.
To remove the drill bit, turn the chuck key counterclock-
wiseinjustonehole,thenloosenthechuckbyhand.
1
►1. Chuck key
Diamond core drilling
NOTICE: If performing diamond core drilling
operations using “rotation with hammering”
action, the diamond core bit may be damaged.
When performing diamond core drilling operations,
always set the change lever to the
position to use
"rotation only" action.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and unplugged before attempting to
perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenanceoradjustmentshouldbeperformedby
Makita Authorized or Factory Service Centers, always
using Makita replacement parts.
www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885528-223
EN
20160530

Makita M8701 Specifications

General

Impact rate	4500 bpm
Rated speed (max)	1200 RPM
Impact energy (max)	2.3 J
Sound pressure level	90 dB
Sound level uncertainty	3 dB
Drilling diameter in wood (max)	32 mm
Drilling diameter in steel (max)	13 mm
Vibration level (metal drilling)	2.5 m/s²
Vibration level (hammer drilling)	16.5 m/s²
Cord length	4 m
Input power	800 W
Power source	AC
AC input voltage	230 V
Chuck type	SDS Plus
Product color	Black, Orange
Adjustable speed	Yes
Uncertainty coefficient (metal)	1.5 m/s²

Weight and Dimensions

Depth	362 mm
Width	71 mm
Height	194 mm
Weight	2700 g
