14 ENGLISH

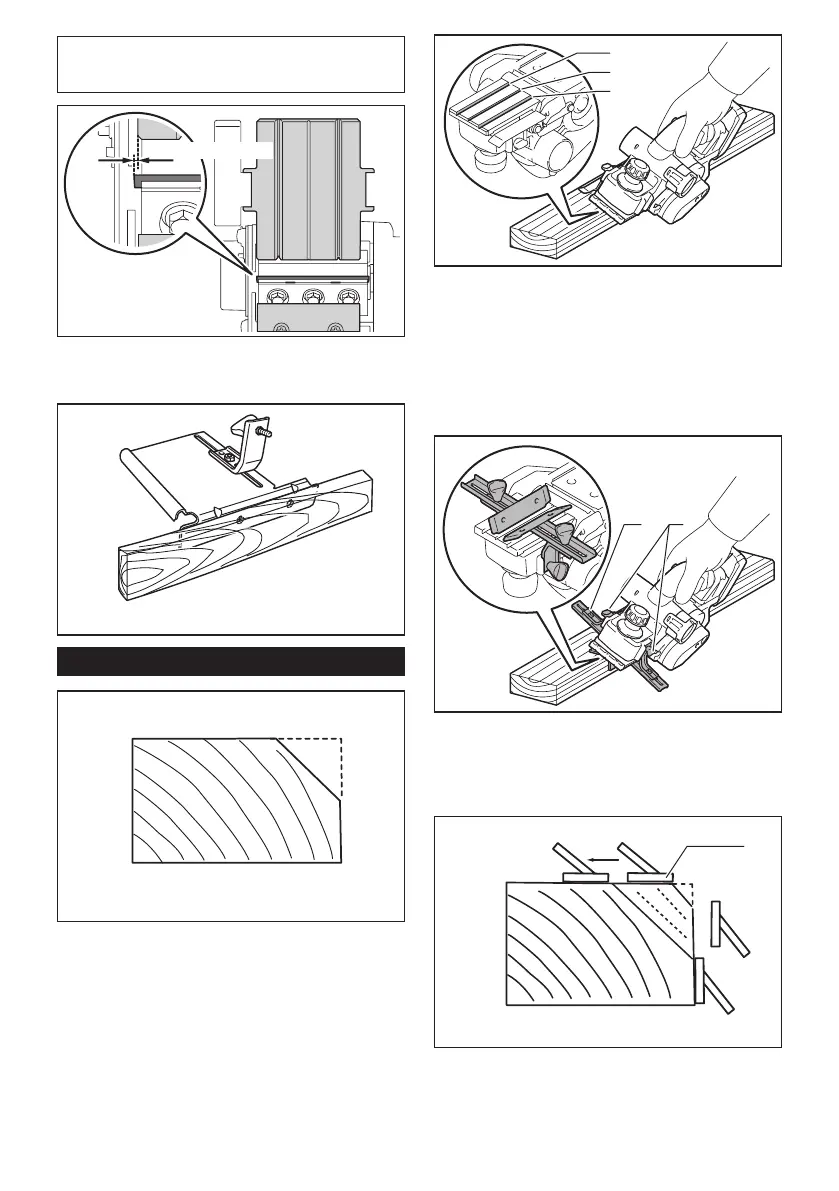

NOTICE: The blade edge should be made to
protrude outside slightly (0.2 - 0.4 mm(1/64")) for
shiplapping.
0.2-0.4mm(1/64”)
You can extend the length of the fence by attaching an
extra piece of wood. Convenient holes are provided in
the fence for this purpose.
Chamfering
To make a chamfering cut as shown in the gure, align
one of three "V" grooves in the front base with the edge
of the workpiece and plane it.
1
2
3
► 1. V groove (medium amount of chamfering) 2. V
groove (small amount of chamfering) 3. V groove
(great amount of chamfering)
Use of chamfering rule (optional accessory) assures
more tool stability when chamfering.
To install the chamfering rule, remove two screws on
both sides of the front of the tool.
Then install the chamfering rule on the front base of the
tool and secure it the screws as shown in the gure.
1
2
► 1. Chamfering rule 2. Screw
When doing a great amount of chamfering, place an
edge of chamfering rule so that it contacts workpiece
and make many passes of planing as shown in the
gure.
1
ab
► 1. Edge of chamfering rule
