Suction Shut-off Valve Insulation
The preformed suction shut-off valve insulation is
located in the plastic bag taped to the water curtain.
A. Verify valve and schrader caps are tightened
to specifications (see step 6).

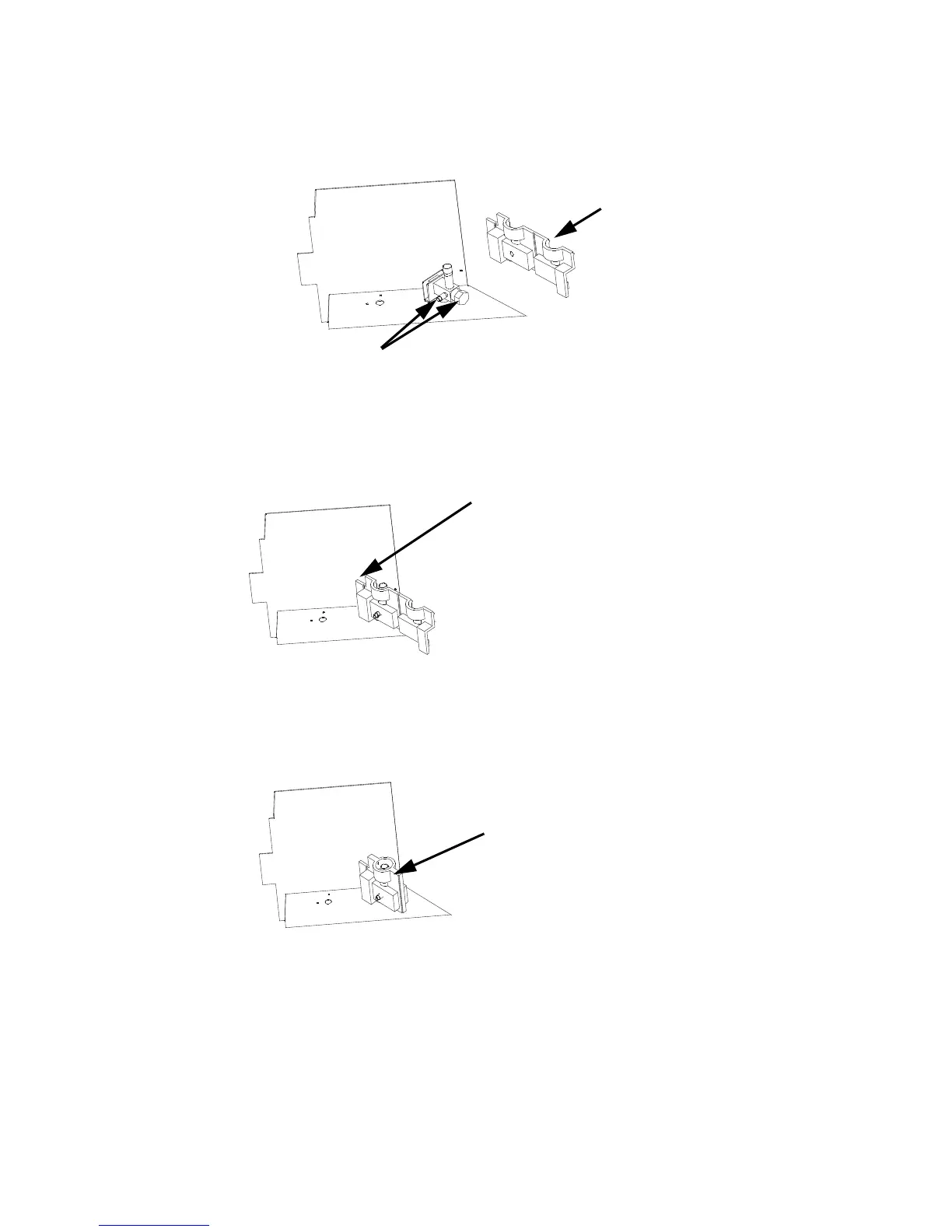

B. Place insulation over schrader valve cap and
left side of valve. Position the tab between
the mounting bracket and rear panel.
C. Fold insulation and hold against right hand
side of valve while securing with electrical
tape. Seal the line set insulation to the shut-
off valve insulation with electrical tape.
