RECORDABLE THERMAL IMAGER 057-4582-6
3

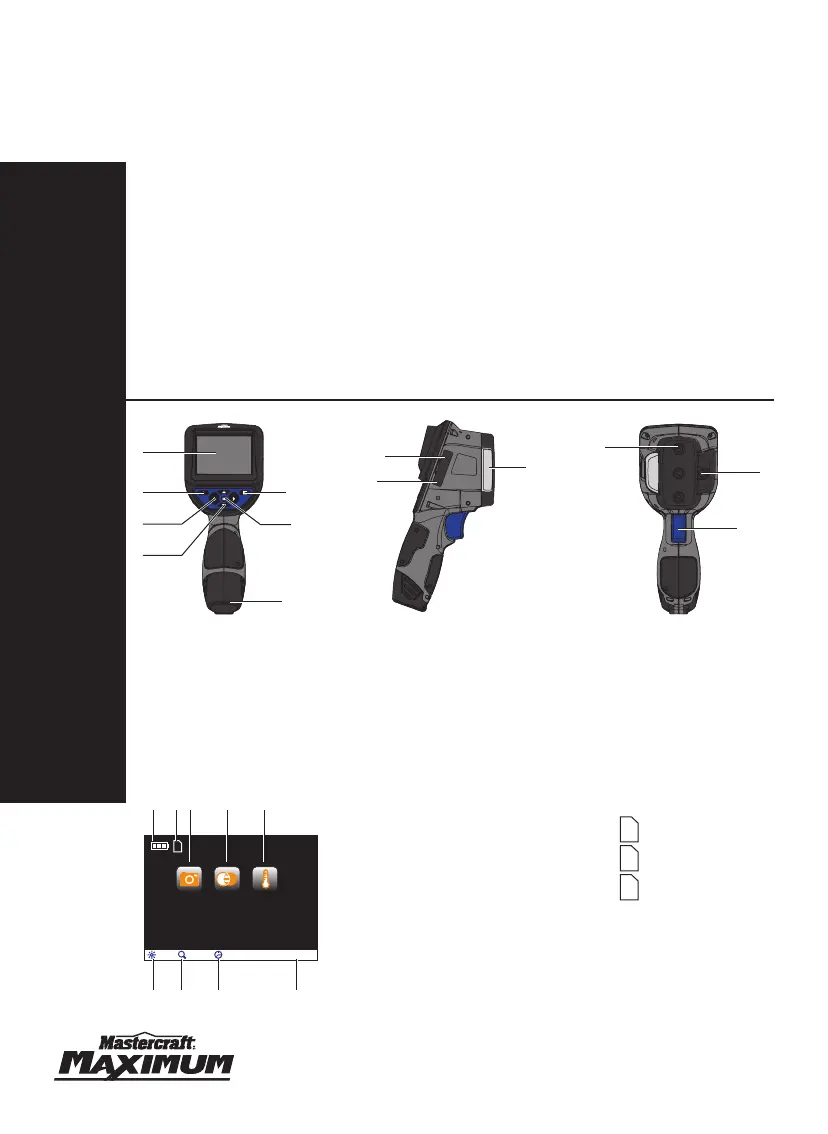

KEY PARTS DIAGRAM
IMPORTANT
It is essential to read the instructions in this manual before using the machine. These instructions may
be subject to change.
FUNCTIONS/APPLICATIONS
This recordable thermal imager/IR imaging thermometer features a micro-camera and thermal array
sensors which send both visual and thermal blended images to the colour LCD.
This product is ideal for electricians and maintenance technicians and can be used to find areas of
concern quickly with a real-time thermal image.
In addition, to analyze the areas inspected, both thermal and visual images can be saved to the
removable memory card. Saved images can be recalled for evaluation at a later point in time.
1. LCD screen
2. Power On/Off
3. Preview
4. Menu/settings
5. Arrow left-right
6. Arrow up-down
7. Battery door
8. LED spotlight
9. USB cable slot
10. SD card slot
11. IR array sensor
12. Camera sensor
13. Trigger
1
2
9
11
10
3
8
12
13
7
45
6
66% 100%
00.01.01 00:10 MEM 100%
1. LED brightness (0% - 100%)
2. Zoom level (100% - 300%)
3. Date/Time
4. SD card memory capacity indicator
5. Visual (as per copy deck) mode
6. Overlap mode
7. Thermal mode
8. Battery status
9. SD card status
1
8 9
M
F
5 6 7
2
3 4
SD card memory
Internal memory
Memory full
