AURA SERIES (G3-S30) LAT PULLDOWN

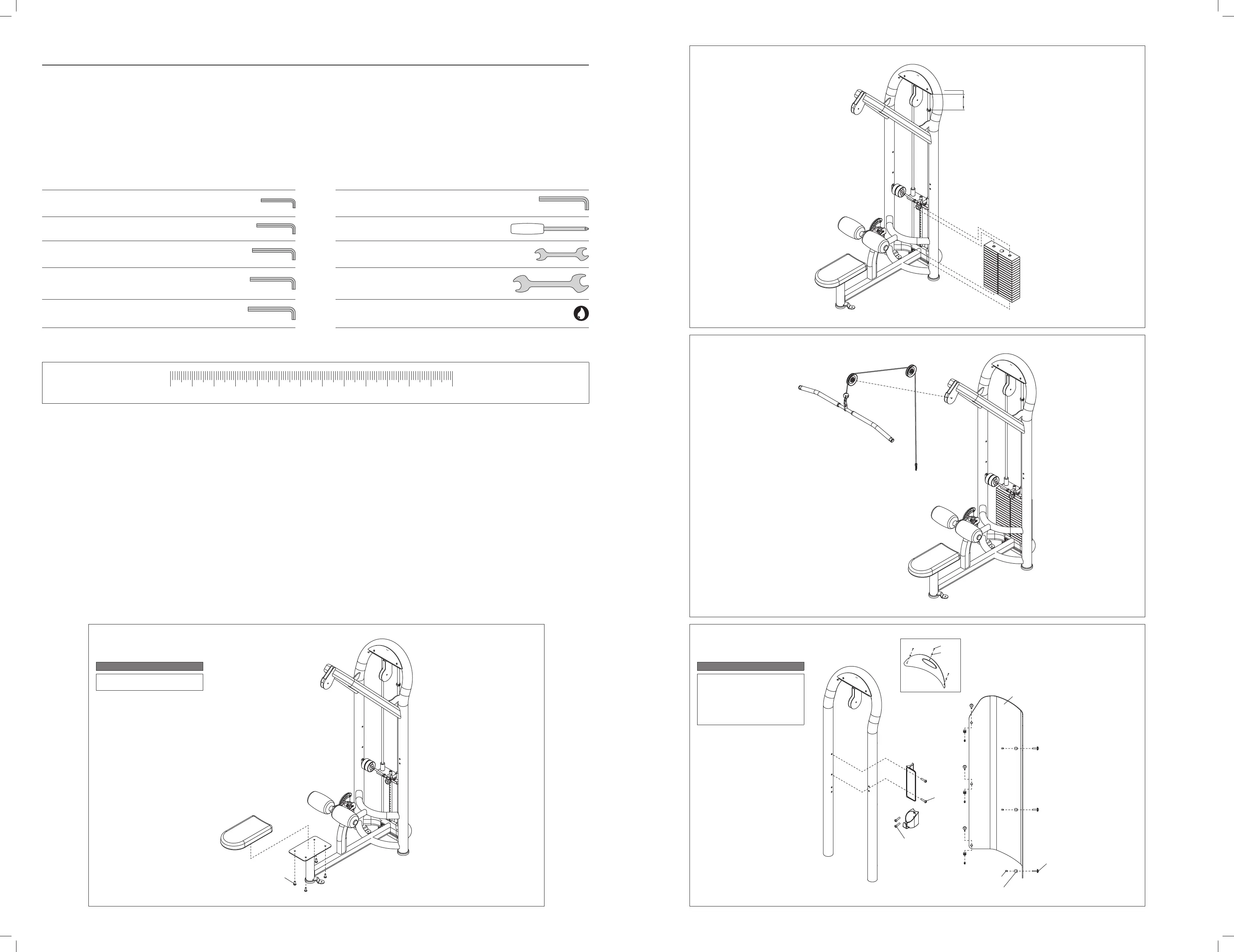

UNPACKING (G3-S30) LAT PULLDOWN
Thank you for purchasing a MATRIX Fitness product. Your AURA SERIES (G3-S30) LAT PULLDOWN is inspected before it is packaged. It is shipped in multiple
pieces to facilitate the compact packaging of the machine. Prior to assembly, conrm all the components by matching them with the exploded diagrams. Carefully
unpack the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance removing the frame pieces from this box. Please be
sure to install the equipment on a stable base, properly level the machine and leave at least two feet of clearance to enter and exit the machine.
TOOLS REQUIRED FOR ASSEMBLY (not included)
3MM L-Shaped Allen Wrench 10MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench Phillips Screwdriver
5MM L-Shaped Allen Wrench 8MM Open-End Wrench
6MM L-Shaped Allen Wrench 17MM Open-End Wrench
8MM L-Shaped Allen Wrench Guide Rod Lubrication
If any items are missing please contact your country’s local MATRIX dealer for assistance.
0 mm 10 20 30 40 50 60 70 80 90 100 110 120 130
B26x4
STEP 1
Upholstery Detail
Hardware
Description Qty
B26 Screw (M10x35L) 4
290 mm
STEP 2
Weight Stack Detail
STEP 3
Cable Routing Detail
B45x6
B51x6
B53x2
B27x2
Q07x6
B30x6
Q06x6
Q30
x2
STEP 4
Accessory Detail
Hardware
Description Qty
B27
B53
B45
B51
Q06
Q07
Screw (M8x30L)
Screw (M8x18L)
Screw (M4x12L)
Internal Tooth Lock Washer
Rubber Spacer
Rubber-tipped Bolt
2
2
6
6
6
6
