11
ENG

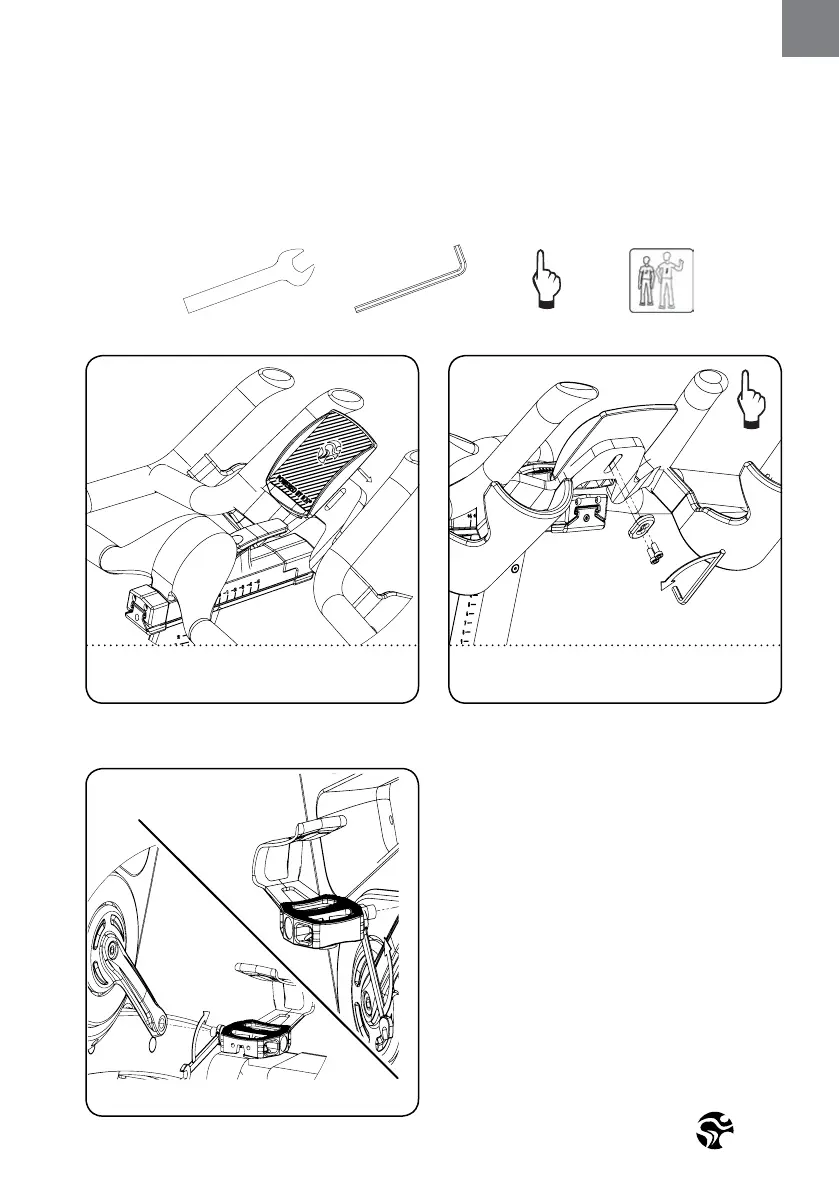

HOW TO ASSEMBLE THE
INDOOR CYCLE
2
PEOPLE
3MM
HAND TIGHT
8. 9.
WARNING!
Attach the pedal marked R on the right
crank and tighten by turning clockwise (standard right-
hand thread). Attach the pedal marked L on the left crank
and tighten by turning counter-clockwise (left-hand
thread). Please make sure that both pedals are fastened
with sucient force (55 NM), to ensure that the bolt does
not become loose during use.
The threads are provided with TufLok® at the factory
to prevent them from becoming loose during use.
If bolts are loosened after initial assembly, we
recommend using medium-strength LOCTITE® 243
when reassembling.
10.
R
L
POSITION THE SMARTPHONE TRAY
ON THE HANDLEBAR BRACKET.
FASTEN THE SMARTPHONE TRAY FROM
THE UNDERSIDE OF THE HANDLEBARS
WITH THE BOLT PROVIDED.
OBSERVE ASSEMBLY
INSTRUCTIONS!
15 MM
PEDAL WRENCH
1X
55 NM
