Matrix MAGNUM SERIES Owner's Manual

MAGNUM SERIES (MG-PL50) ABDOMINAL CRUNCH BENCH
UNPACKING (MG-PL50) ABDOMINAL CRUNCH BENCH
Thank you for purchasing a MATRIX Fitness product. Your MAGNUM SERIES (MG-PL50) ABDOMINAL CRUNCH BENCH is inspected before it is packaged. It is
shippedinmultiplepiecestofacilitatethecompactpackagingofthemachine.Priortoassembly,conrmallthecomponentsbymatchingthemwiththeexploded
diagrams. Carefully unpack the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
Toavoidinjurytoyourselfandpreventdamagetotheframecomponents,besuretohaveproperassistanceremovingtheframepiecesfromthisbox.Pleasebe
sure to install the equipment on a stable base and properly level the machine. Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage
around MATRIX strength equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs.
TOOLS REQUIRED FOR ASSEMBLY (NOT INCLUDED)
3MM L-Shaped Allen Wrench 10MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench Phillips Screwdriver
5MM L-Shaped Allen Wrench 8MM Open-End Wrench
6MM L-Shaped Allen Wrench 17MM Open-End Wrench
8MM L-Shaped Allen Wrench Guide Rod Lubrication
If any items are missing please contact your country’s local MATRIX dealer for assistance.
0 mm 10 20 30 40 50 60 70 80 90 100 110 12 0 130

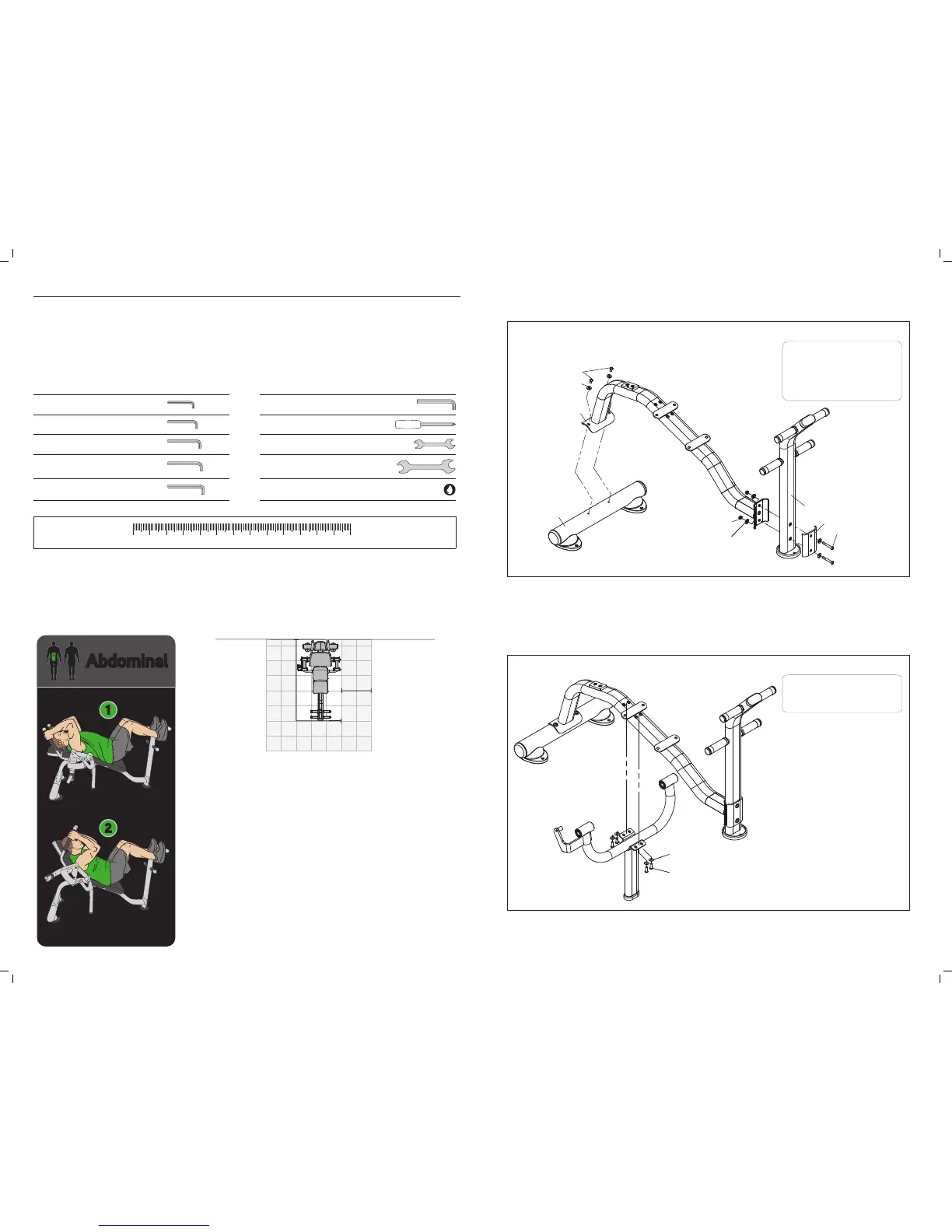

Step 1
Frame Detail
Item
Z02
Z06
Z07
Z11
Description
Screw (M10x30L)
Flat Washer (Ø10)
Nylon Nut (M10)
Screw (M10x80L)
Qty
2
6
2
2
C01
AT1
Z11x2
Z06x4
B10
AB1
Z07x2
Z02x2
Z06x2
Step 2
Frame Detail
Item
Z02
Z06
Description
Screw (M10x30L)
Flat Washer (Ø10)
Qty
4
4
Z06x4
Z02x4
AbdominalAbdominal
11
22
PL50 Abdominal
Rev 1.0
August, 2014
Die lines. Do not print.
Black
Pantone 4715C
Pantone 719C
Pantone 1795C
Pantone 361C
Pantone 7461C
Blacks
100%
80%
60%
20%
Size:
80 x 180 mm
3.1 x 7.1 in
Pantones
– Process Black C
– Cool Gray 11C
– Cool Gray 8C
– Cool Gray 2C
PLACARD
PL50
TRAINING
AREA
FREE AREA
0.6
M (2 FT)
WIDE PATH
0.89 M
(
35”
)
1.63
M
(
64”
)
FOOTPRINT AREA
MX15_MAGNUM_OM_MG-PL50 abdominal crunch bench_r1_5.indd 2 7/6/15 11:09 AM
