Page #10 background image
10
D
E
F
B
A
C
B
1
2
5
4
3
6
1 2

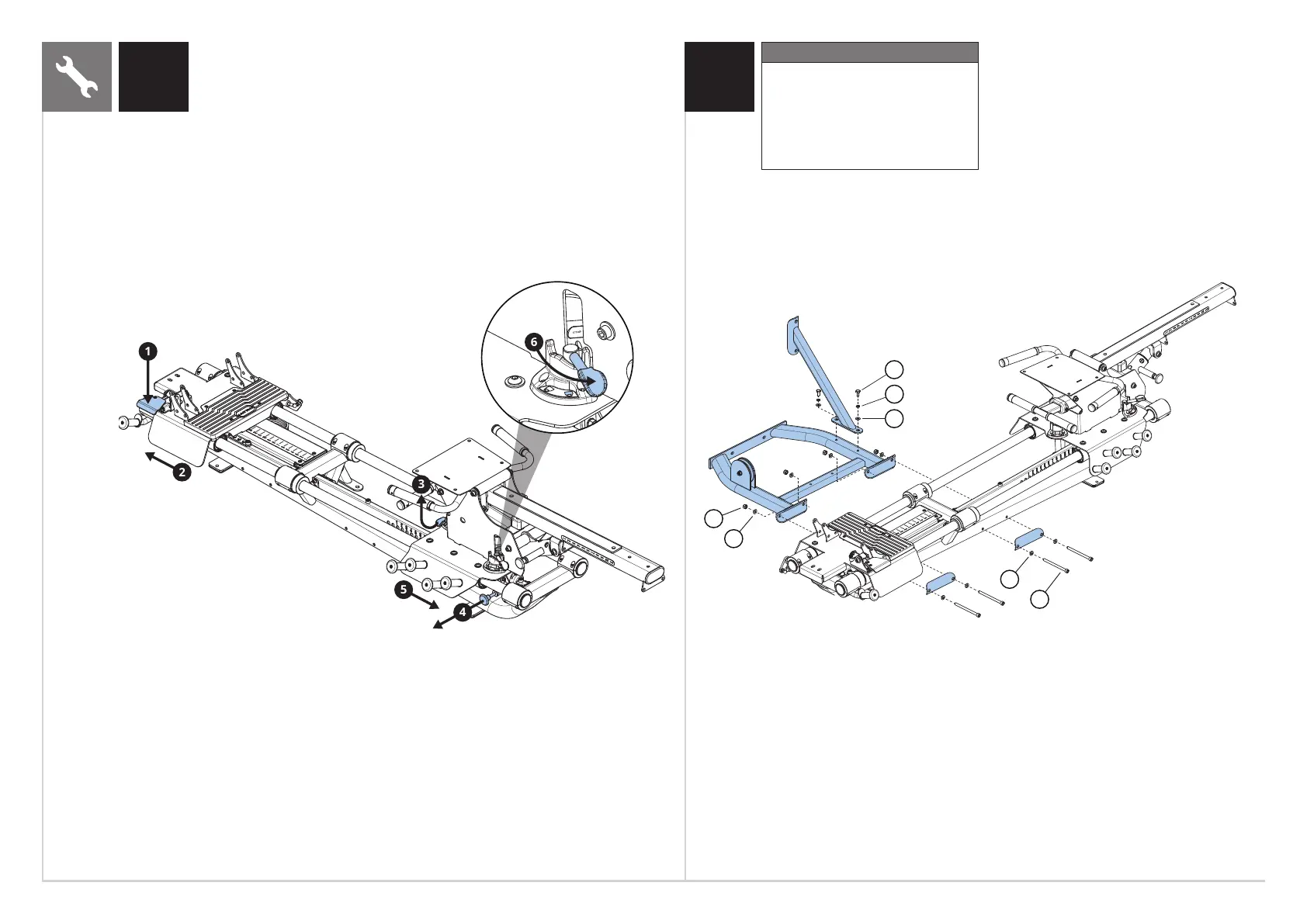

Step 2 Hardware
Description Qty
A
B
C
D
E
F
Bolt (M10x150L)
Arc Washer (Φ10.2)
Nut (M10)
Hex Head Bolt (M10x20L)
Spring Washer (Φ10.2)
Washer (Φ10.2)
4
8
4
2
2
2
Do not fully tighten frame connectors until
assembly is complete. Vibra-Tite 135 Red Gel
or equivalent must be used on all fasteners
that are not assembled with Nylock Nuts.
Keep pull pin in the lock position
ENGLISH
