VACUUM PUMP INSTALATION
STEP 5
azonprinter.com MATRIX GETTING STARTED

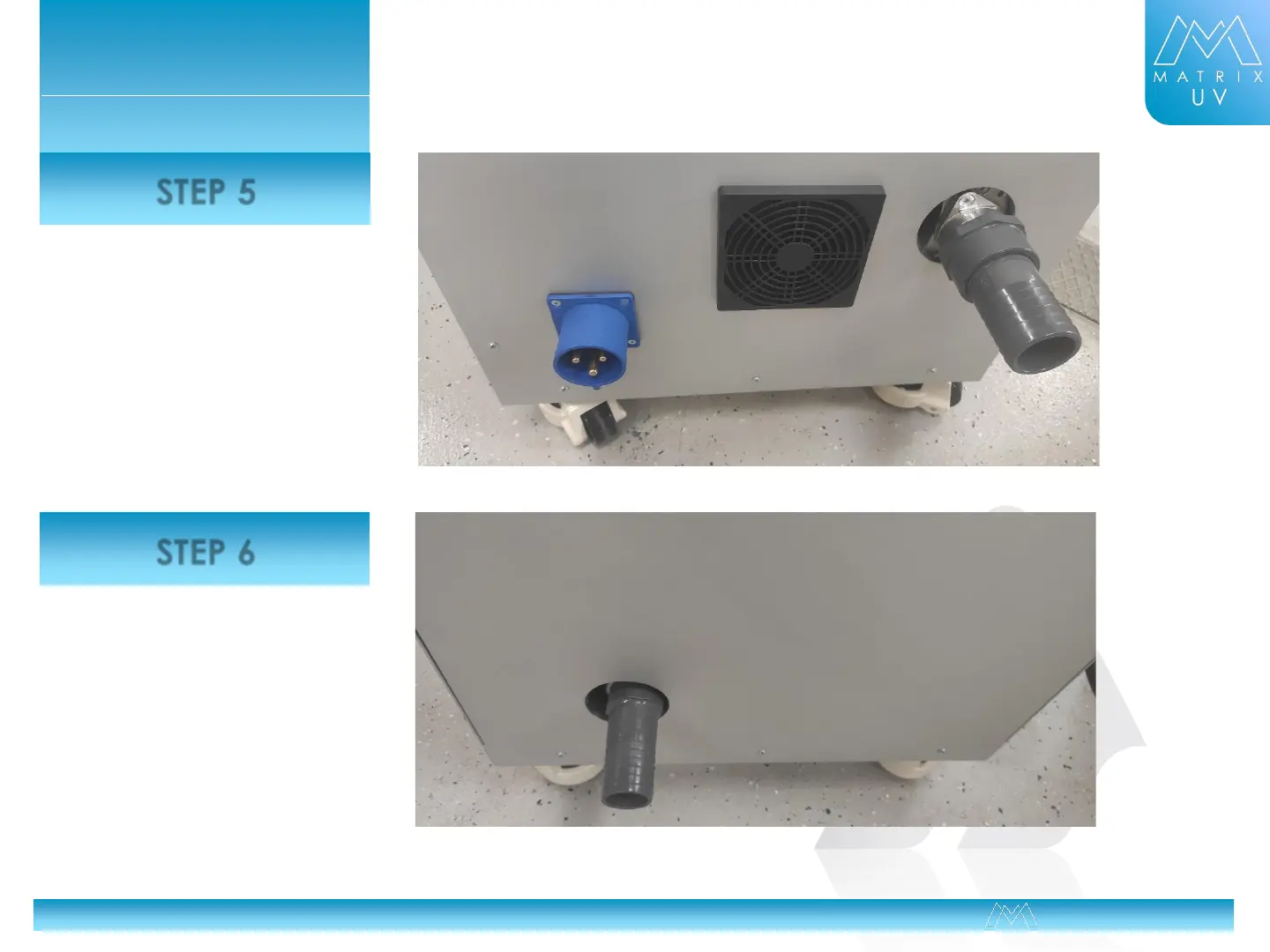

Vacuum pump layout 1
STEP 6
Vacuum pump layout 2
VACUUM
PUMP
MAIN
POWER
SOCKET
VACUUM
PUMP SIDE
FAN
VACUUM
PUMP OUTPUT
HOSE
CONNECTION
50MM
DIAMETER
VACUUM
PUMP INPUT
HOSE
CONNECTION
40MM
DIAMETER
