McIntosh MC2KW Connection Diagram

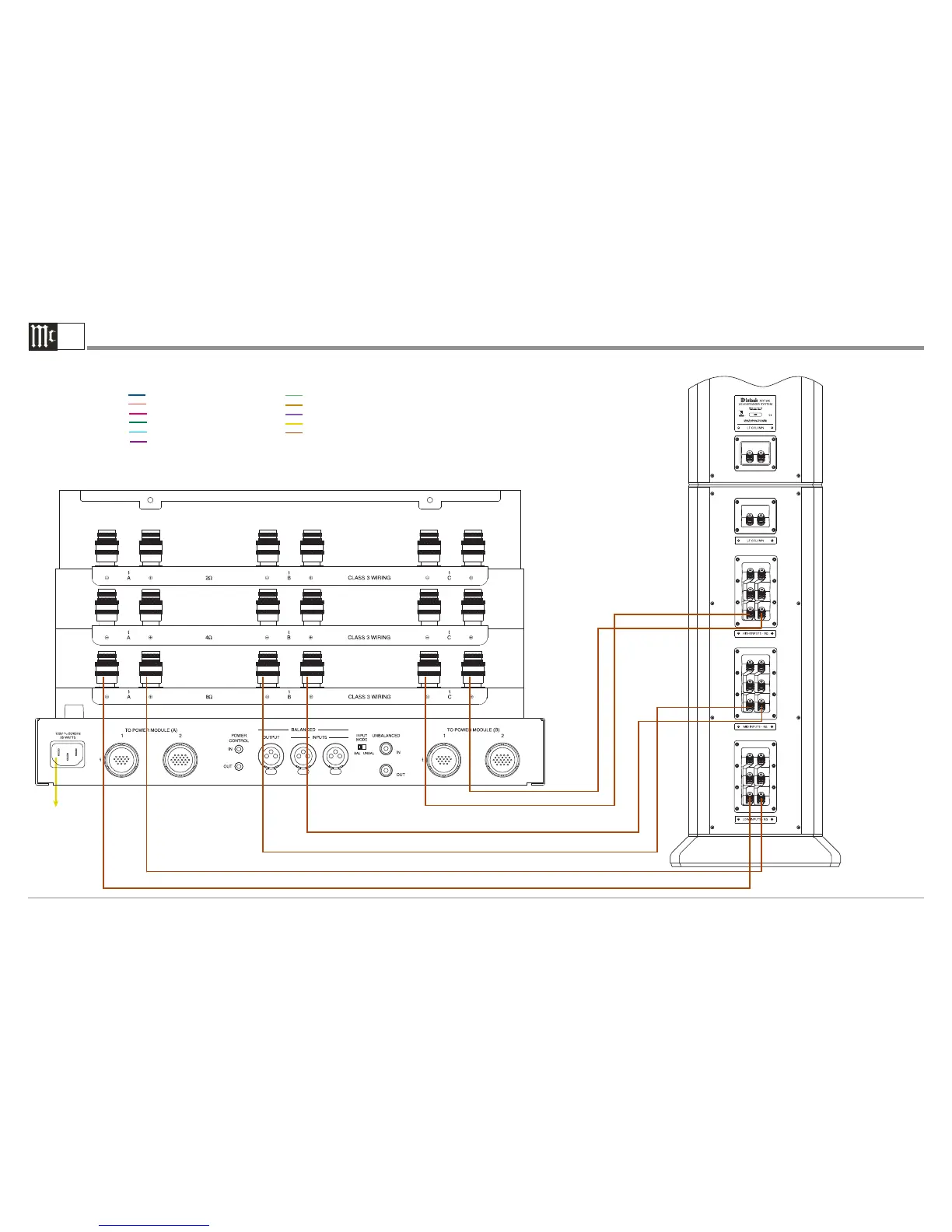

MC2KW Output Module and Loudspeaker Connection Diagram
2B
Note: Refer to the MC2KW Owner’s Manual page XX for additional connection information.
Connection Legend:
Data Cable*- Digital Signal Cable -
Sensor/Keypad Cable - RS232 Cable -
Power Control Cable* - Ground Wire -
Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable -
RF Signal Cable -
*
2 conductor shielded with 1/8 inch stereo mini phone plug on each end.
McIntosh Output Module (Left Channel)
Connect to a
live AC Outlet
McIntosh Loudspeaker (Left Channel)
