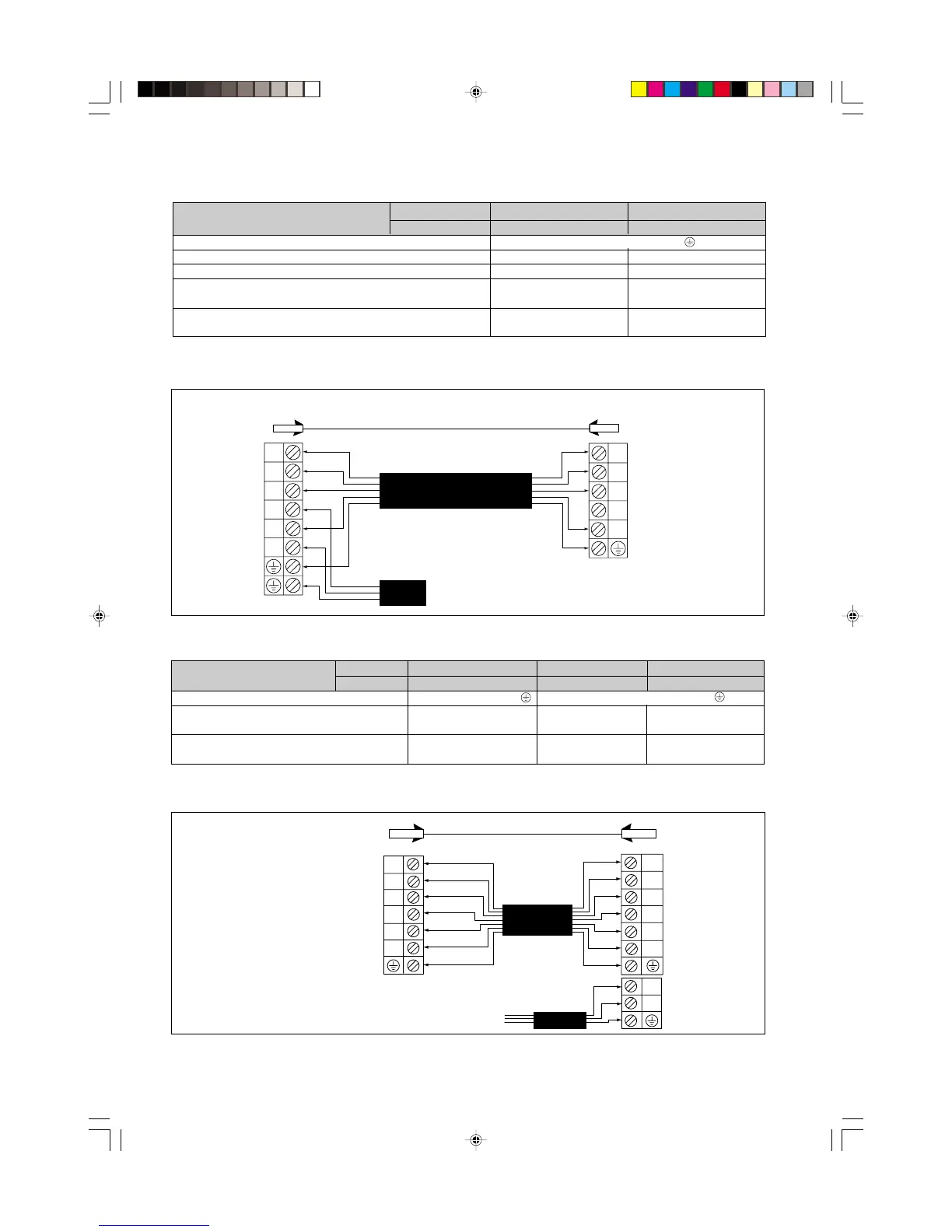

McQuay MCK040A User Manual

1-12
CK30AR / CK40AR & CK50AR
MODEL INDOOR CK30AR CK40AR CK50AR
OUTDOOR SL30CR SL40CR SL50CR
VOLTAGE RANGE 220-240V/1ph/50Hz + 380 - 420V / 3ph / 50Hz +
POWER SUPPLY CABLE SIZE (mm
2
)4 2.5 2.5
NUMBER OF CONDUCTORS (1) 3 5 5
INTERCONNECTION CABLE SIZE (mm
2
) 1.5 1.5 1.5
NUMBER OF CONDUCTORS (1) 7 7 7
IMPORTANT : These values are for information only. They should be checked and selected to comply with local and/or
national codes and regulations. They are also subject to the type of installation and size of conductors.
CK30AR <>
SL30CR
There must be a double pole switch with minimum
3mm contact gap and fuse/circuit breaker as
recommended in the fixed installation circuit.
A
4WV
OF
N
L
N
L
COMP
A
4WV
OF
N
L
COMP
Outdoor Coil Sensor
Indoor Unit
Terminal
Block
Interconnection
Cable
Outdoor Unit
Terminal
Block
Heat Pump
CK20AR / CK25AR
MODEL INDOOR CK20AR CK25AR
OUTDOOR SL20BRK SL25BRK
VOLTAGE RANGE 220 - 240V / 1ph / 50Hz +
POWER INPUT (cooling/heating), W 2225 / 1940 2937 / 2435
RATED CURRENT (cooling/heating), A 11.48 / 10.35 14.0 / 12.40
POWER SUPPLY CABLE SIZE (mm
2
) 2.5 2.5
NUMBER OF CONDUCTORS 3 3
INTERCONNECTION CABLE SIZE (mm
2
) 2.5 2.5
NUMBER OF CONDUCTORS 5 5
IMPORTANT : These values are for information only. They should be checked and selected to comply with local and/or
national codes and regulations. They are also subject to the type of installation and size of conductors.
There must be a double pole switch with minimum
3mm contact gap and fuse/circuit breaker as
recommended in the fixed installation circuit.
4WV
OF
N1
L
N2
COMP
4V
OF
N
COMP
CK20AR / 25AR <> SL20BRK / 25BRK
Indoor Unit
Terminal
Block
Interconnection Cable
Outdoor Unit
Terminal
Block
Power Supply Cable
Power
Supply
Cable
!
!
Outdoor Coil Sensor
CK20A(1-16)ENG 2/1/01, 10:15 AM12
