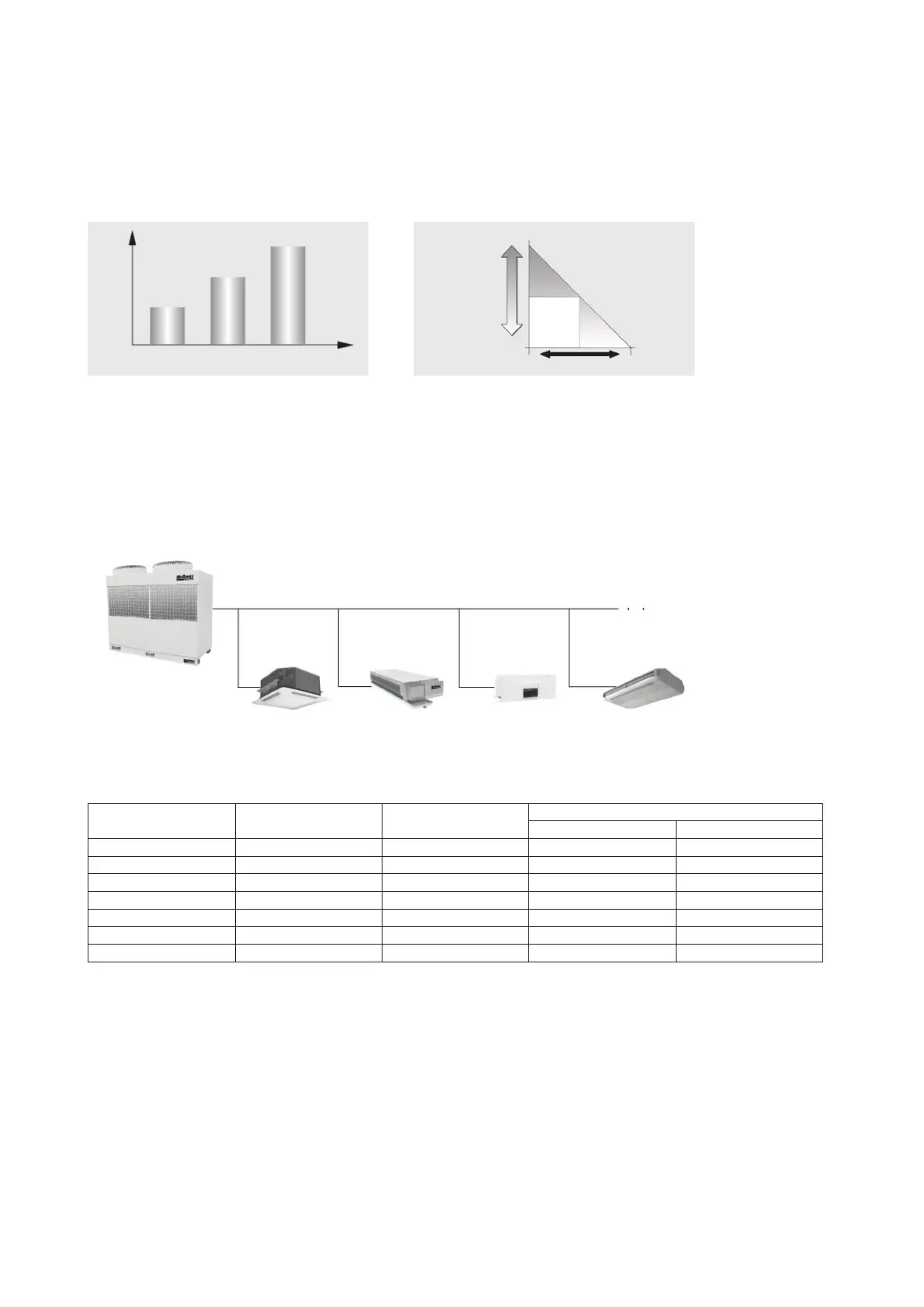

1.4 Energy Saving
The inverter system’s capacity modulation range is from 30% to 100%, while MDS system’s capacity
modulation range is from 10% to 100%.
Quick response to the capacity modulation.
Min. power consumption is only 10% of the full load power consumption.
Compared to the inverter system, there is no power consumption of transducer.
Compared to the nominal capacity scroll system, it can save 20% energy consumption.
1.5 Flexible Combination of Indoor Units
The max. capacity of the indoor units is as 130% as the outdoor units capacity.
The outdoor units can connect different numbers of indoor units according to the outdoor units capacity.
One outdoor unit can be connected up to 48 indoor units.
Various types of indoor units are available.
There are various indoor units for option: concealed exposed, ceiling concealed, high static pressure fan coil
and ceiling exposed/floor standing.
EER
MDS systemTraditional air
conditioning system
Traditional inverter
system
1.6 Long Accessory Pipe Connection Design
Max. accessory pipe length is 15m (12HP-30HP), max. height is 50m (8HP—30HP).
Max. accessory pipe total
length (m)
Max. accessory pipe
length (m)
Height
OT
IT
12-30HP 350 150 50 40
10HP 250 125 50 40
8HP 250 125 50 40
6HP 150 70 30 30
5HP 150 70 30 30
4HP 150 70 20 20
3HP 100 50 20 20
Note:
OT means the outdoor unit is above the indoor unit,
IT means the outdoor unit is below the indoor unit.
Digital
compressor
operating
Fixed
compressor
100% operating
10HP system
Load
Heavy loading
Light loading
10%
100%
