4 IM 1128-2
16. The control panels are shipped separately but have all sensors wired in, labeled and tied up.
Matching labels will exist at the sensor connection on the unit.
17. Contact your service representative for McQuay International for pricing and scheduling of
required installation supervision.
TYPE III: The unit ships fully assembled and is field ready to knockdown. Included are the vessel
bolt-on connection brackets, the discharge stack bolt-on flanges at the condenser and the bolt-on oil
pump assembly.
1. The unit is shipped fully charged with refrigerant and lubricant.
2. The unit will be factory insulated and painted.
3. All electrical and sensor wiring will be fastened as usual.
4. The starter will ship per order instructions.
5. Touch up paint and stick-on wire ties will be included.
6. This unit will be fully tested at the factory.
7. Labels will be provided with the instructions to mark piping, electrical wiring and sensor wiring.
NOTE: If disassembly involves breaking any refrigerant connection, the refrigerant charge must be
pumped down and isolated in the condenser.

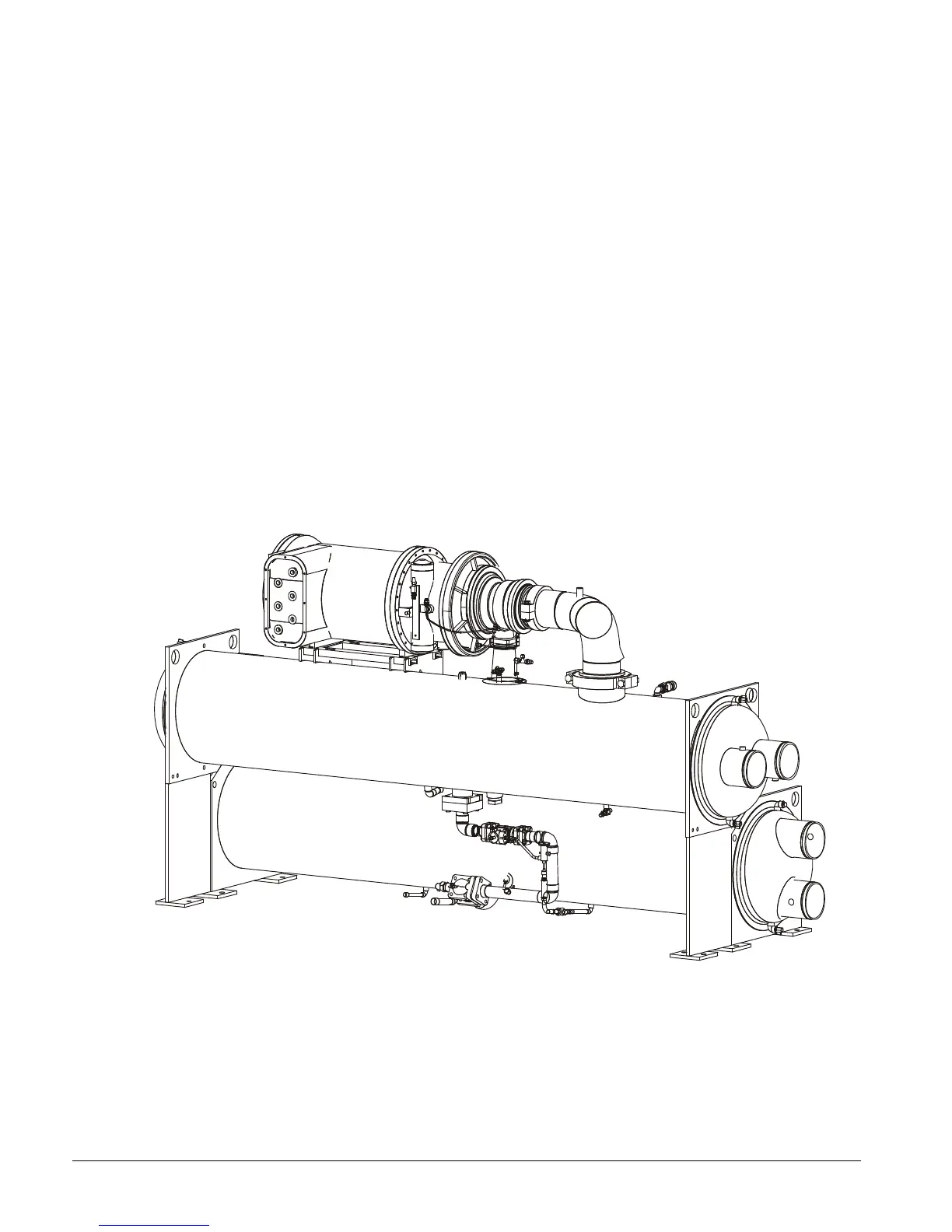

Typical WSC Centrifugal Chiller
