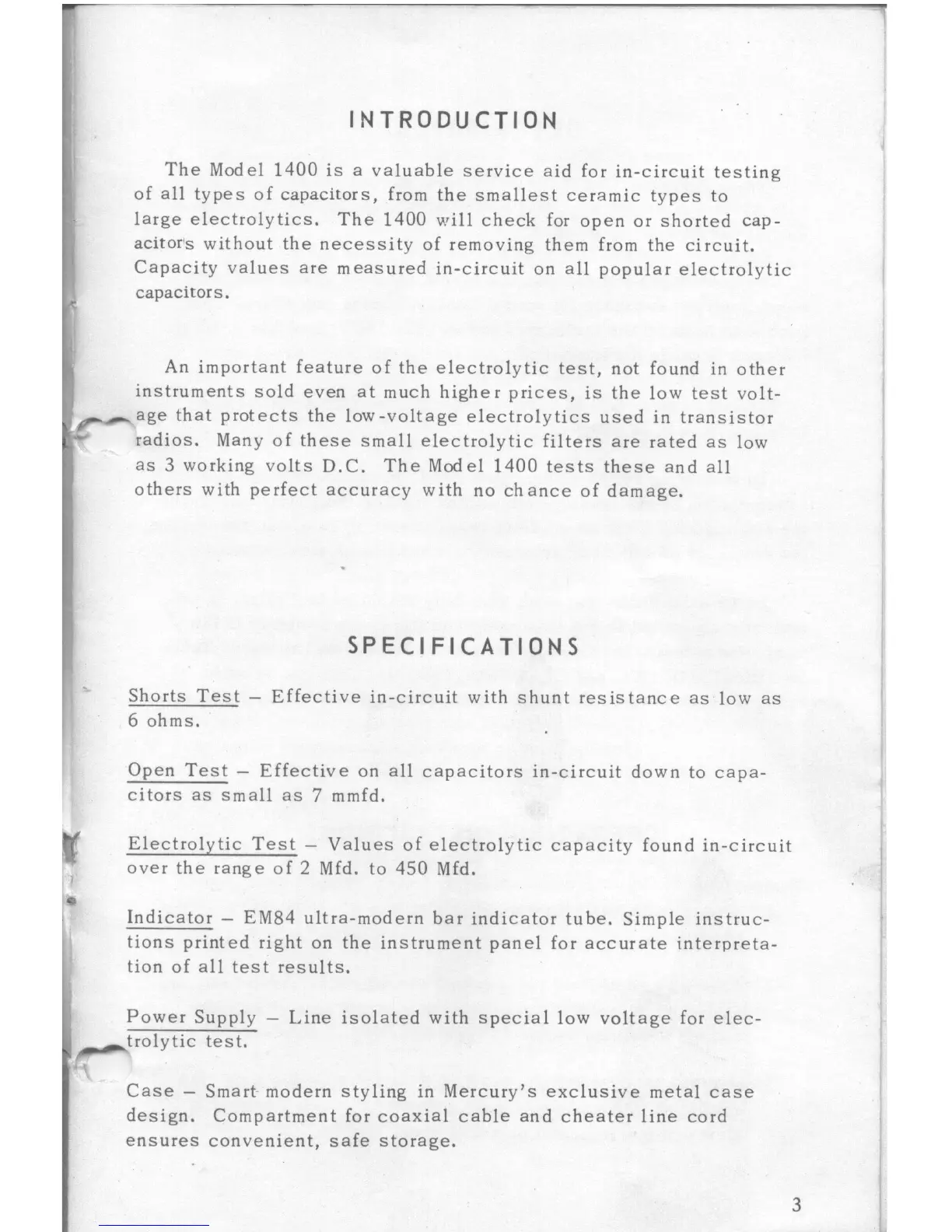

INTRODUCTION

The

Model

1400

is

a

valuable

service

aid

for

in-circuit

testing

of

all

types

of

capacitors,

from

the

smallest

ceramic

types

to

large

electrolytics.

The

1400

will

check

for

open

or

shorted

cap-

acitor

1s

without

the

necessity

of

removing

them

from

the

circuit.

Capacity

values

are

measured

in-circuit

on

all

popular

electrolytic

capacitors.

An

important

feature

of

the

electrolytic

test,

not

found

in

other

instruments

sold

even

at

much

higher

prices,

is

the

low

test

volt-

age

that

protects

the

low-voltage

electrolytics

used

in

transistor

radios.

Many

of

these

small

electrolytic

filters

are

rated

as

low

as

3

working

volts

D.C.

The

Mod

el

1400

tests

these

and

all

others

with

perfect

accuracy

with

no

ch

ance

of

damage.

SPECIFICATIONS

Shorts

Test

-

Effective

in-circuit

with

shunt

resistance

as

low

as

6

ohms.

Open

Test

-

Effective

on

all

capacitors

in-circuit

down

to

capa-

citors

as

small

as

7 mmfd.

Electrolytic

Test

-

Values

of

electrolytic

capacity

found

in-circuit

over

the

range

of

2 Mfd.

to

450

Mfd.

Indicator

-

EM84

ultra-modern

bar

indicator

tube.

Simple

instruc-

tions

printed

right

on

the

instrument

panel

for

accurate

interpreta-

tion

of

all

test

results.

Power

Supply

-

Line

isolated

with

special

low

voltage

for

elec-

trolytic

test.

Case

- Smart-

modern

styling

in

Mercury's

exclusive

metal

case

design.

Compartment

for

coaxial

cable

and

cheater

line

cord

ensures

convenient,

safe

storage.

1

3
