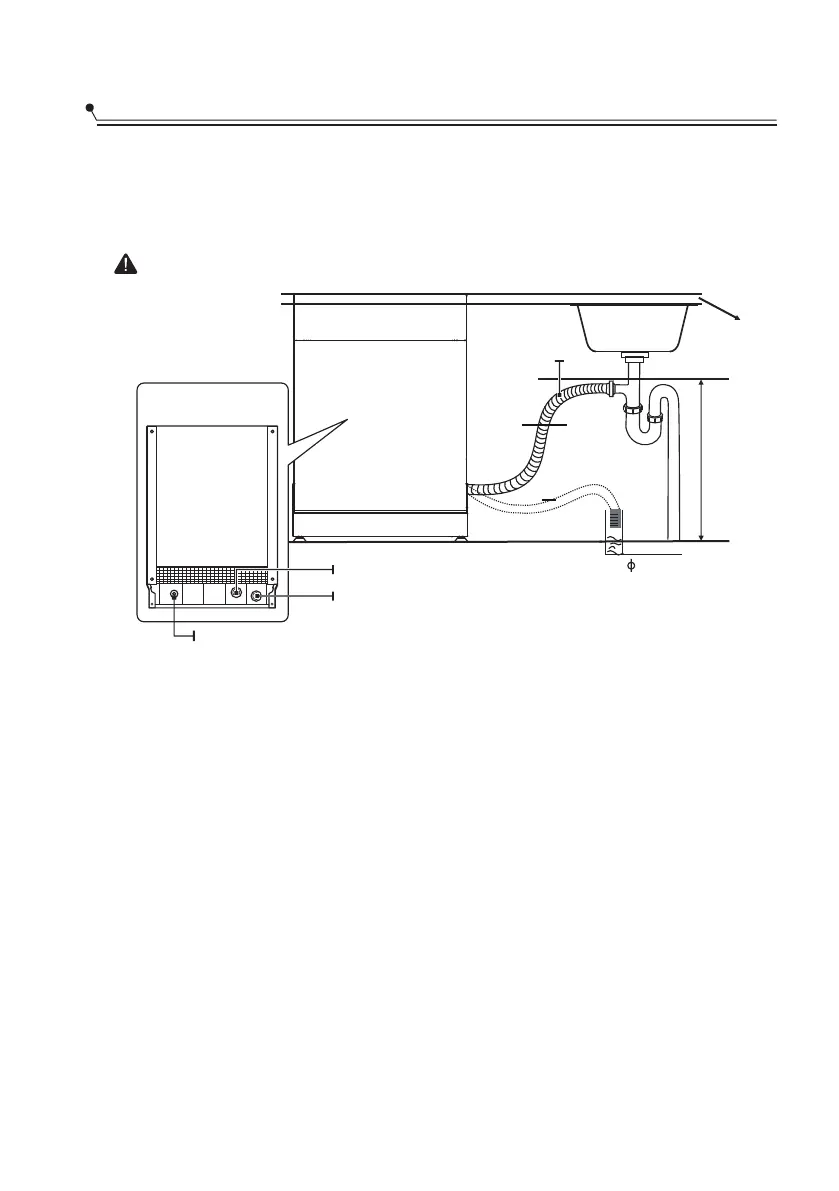

Connection of drainage hoses
Place the drain hose in a drain with a minimum diameter of 4 cm, or let it drain into the
drain, taking care not to bend or crush it. The drain hose must be placed at a height of
less than 1000 mm. To prevent backflow, the free end of the hose must not be
immersed in water.
Fix the drain hose in position A or B.
Drainage
tube
Working
surface
Back side
dishwashers
AND
Drain hose
B
Water inlet
Discharge pipe
40 mm
Power cord
How to empty excess water from the intestines
If the connection to the drain pipe is located above 1000 mm, excess water may remain in the drain
hose. Excess water from the hose will need to be drained into a bowl or similar suitable container,
placed outside and lower than the sink.
Water outlet
Connect the drain hose. The drain hose must be properly attached to avoid water
leakage. Make sure that the water drain hose is not bent or crushed.
Extension hose
If you need a drain hose extension, use a similar drain hose. It must not be longer
than 4 meters; otherwise, the washing machine may wash less efficiently.
Connection to siphon
The drain water connection must be at a height of less than 1000 mm (max.) from the bottom of the washing machine.
19
MAX 1000 mm
