GD Midea Refrigerant Equipment Co. Ltd Service manual for E1 Window
6

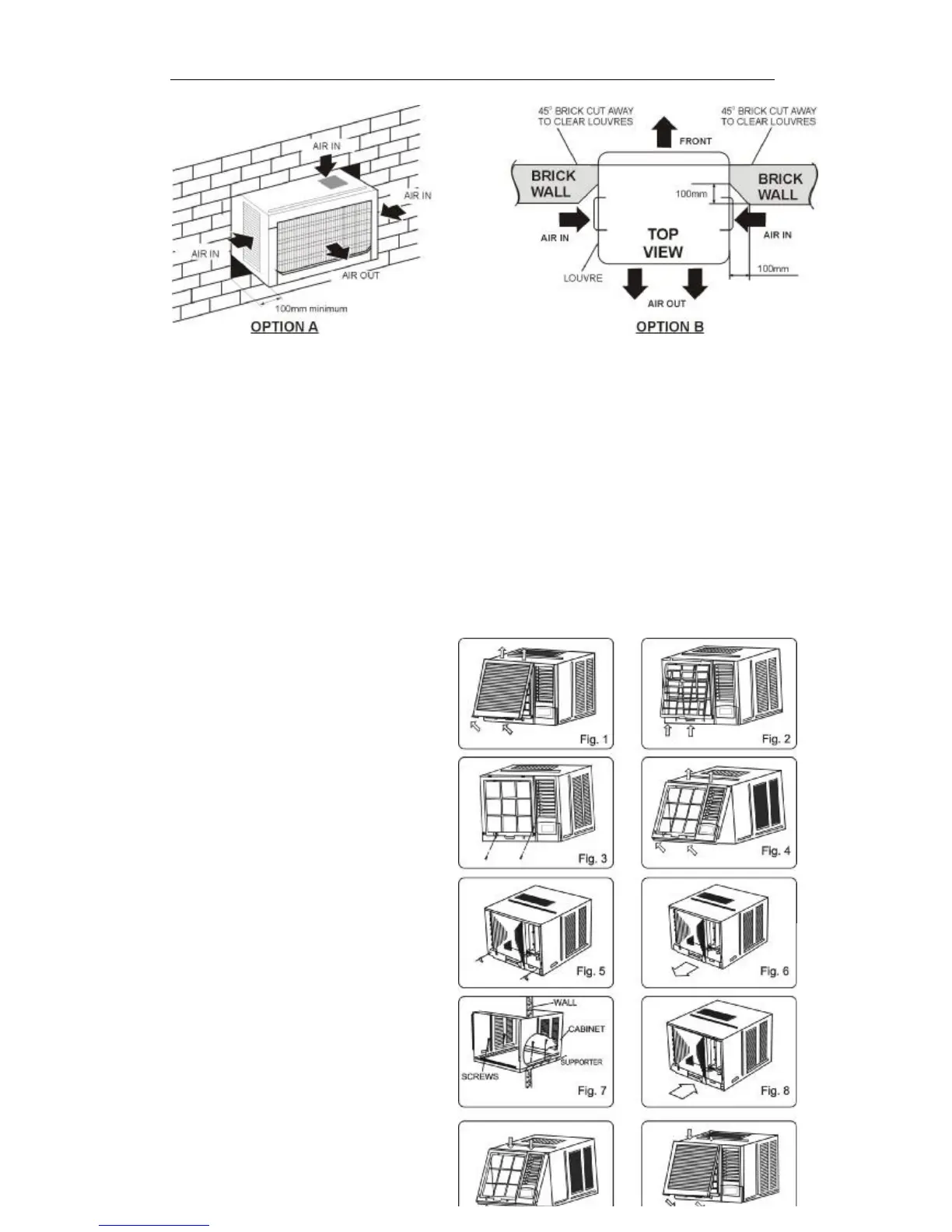

2.4.4 Installation steps
Step 1. Remove the front panel and the air filter
1. Hold the slot under the front panel, then uplift it outwards, and remove the front panel
(See Fig.1).
2. Pinch the handle under the air filter and make the air filter arched, remove it from the
slot from underside to upside (See Fig.2).
Step 2. Remove the frame.
1. Remove the two fixing screws from the frame (See Fig.3).
2. Grasp the left corner of the frame's underside, then loosen the frame (See Fig.4).
Step 3. Installation.
1. Remove the two fixing screws on the chassis fixing brackets, then remove the chassis
fixing brackets (See Fig.5).
2. Grasp the handle on the chassis
and carefully slide the air
conditioner out of the cabinet (See
Fig.6).
3. Remove shipping pad from around
compressor before operation and
make sure the discharge points to
the drain pan are aligned before
the chassis is pushed into the
cabinet (See Fig.7).
4. Push the unit chassis into the
cabinet (See Fig.8).
5. Install the two chassis fixing
brackets using the two fixing
screws (See Fig.5).
Step 4. Install the frame.
1. Install the frame making sure not
to interfere with the temperature
sensor cable (See Fig.9).
2. Fix the screws on the frame (See
Fig.3).
