Miele CVA 2660 Dimensions

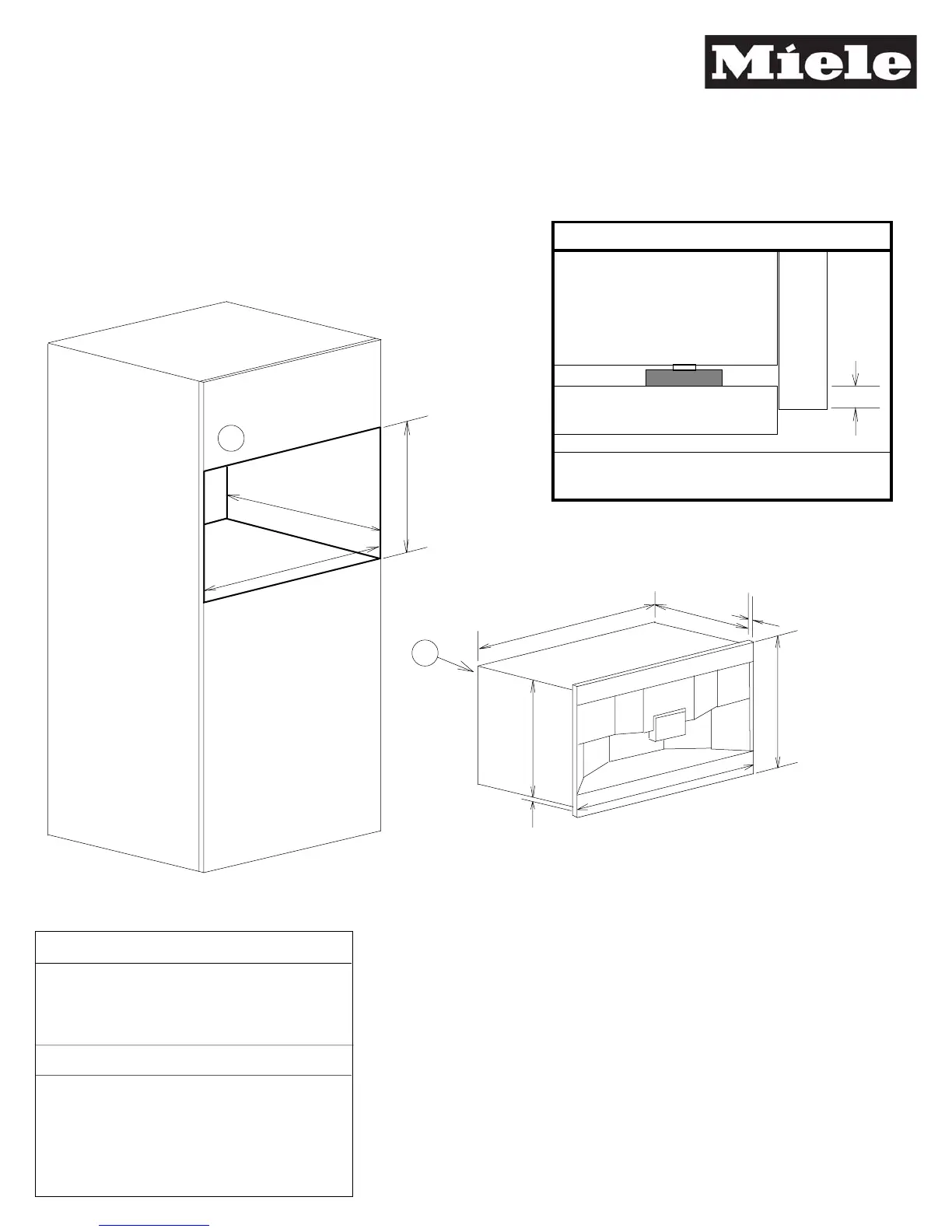

NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010405
Product and Cut-out Dimensions
Built-in Coffee System
CVA 2660 - Tall cabinet installation
E -
O -
5 foot - 120 Volt - 15 Amp 3-wire
molded plug connects left upper rear.
Standard NEMA 5-15 outlet.
Location must be accessible.
Location Codes
Notes
• Width with optional EBA Trim Kits:
EBA4370 26" - 26 1/4"
EBA4376 28 3/8" - 28 1/2"
• All installations must be done in
accordance with local codes.
12" min.
13 3/4"
11 5/ 8"
23 7/ 16"
7/ 8"
14 5/ 8"
O
14 3/16"
See Detail
22 1/ 16" - 22 3/ 8"
SEE NOTES
21 15/16"
E
1/ 2"
Lower Edge Detail - Limited overhang
CVA Housing
Cabinet Shelf
Front of Unit
Removable feet (4)
1/4"
Unit should be installed with removable feet in
place to prevent contact with cabinet doors

Miele CVA 2660 Specifications

General

Brand	Miele
Model	CVA 2660
Category	Coffee Maker
Language	English
