CVA 4062/CVA 4066/CVA 4068 Coffee Systems
Display Reading Description
S60/1 S60/2
Brew Unit
Position
Switch, Top
Brew Unit Position
Switch, Bottom
Brew Unit Position
1 0 Closed Open Home position
0 1 Open Closed Compressing position
1 1 Closed Closed Drain position
0 0 Open Open End position top
1 1 Closed Closed End position bottom
Table 070-6: Brew Unit Positions
4.4 Power Electronic EPL (N4) Removal
1. Remove the appliance from its cabinet. See Section 010-4.1.
2. Remove the three top rear panel retaining screws (two T10s, one T20).
3. Remove the top rear panel.
4. Disconnect all electrical connections from the power electronic.
5. Remove the four power electronic retaining screws (T10); see Figure 070-3, Item 1.
6. Remove the power electronic.

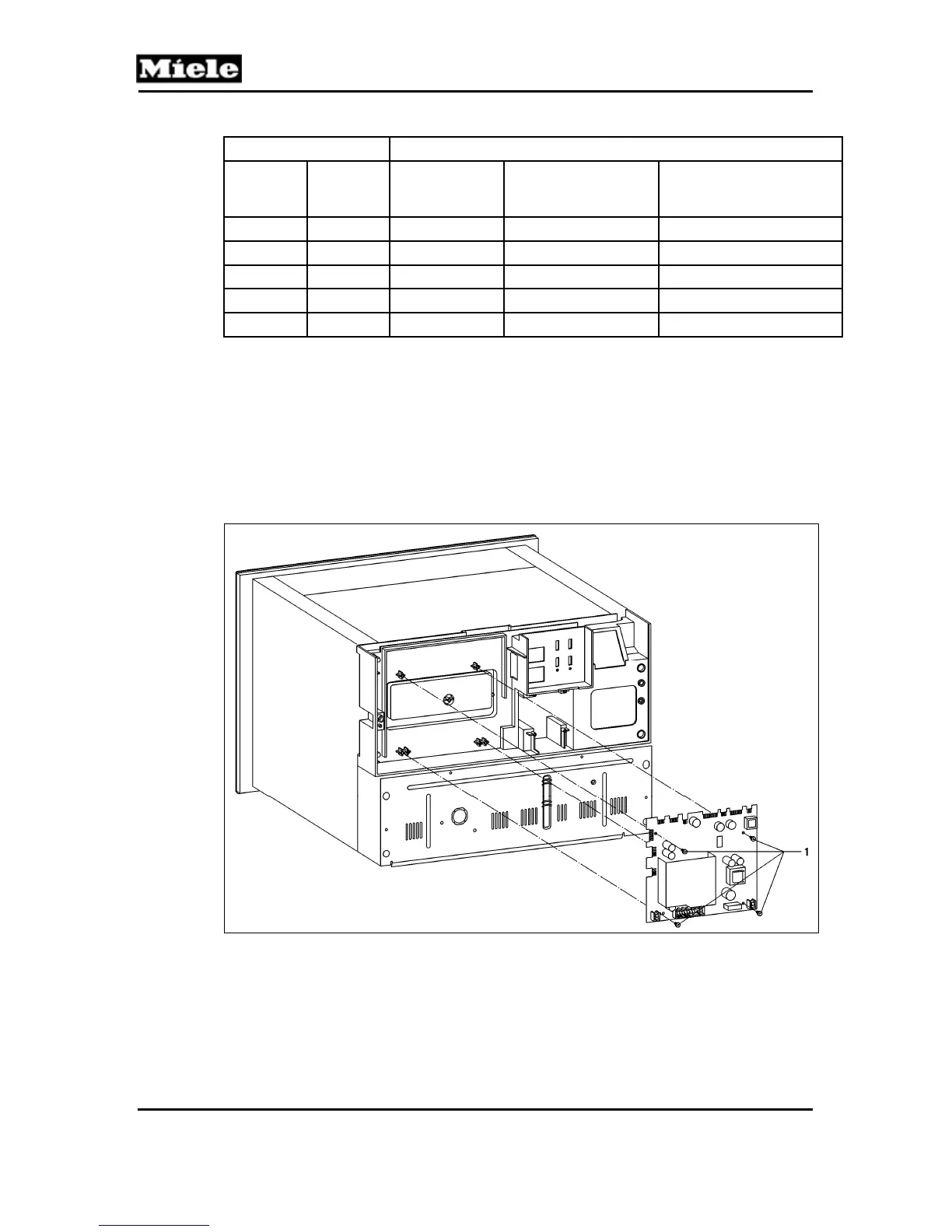

Figure 070-3: Power Electronic Retaining Screws
