Miele DG 408 Series User Manual

Technical Information
9
DG 408x Steam Ovens
2 Electrical Components

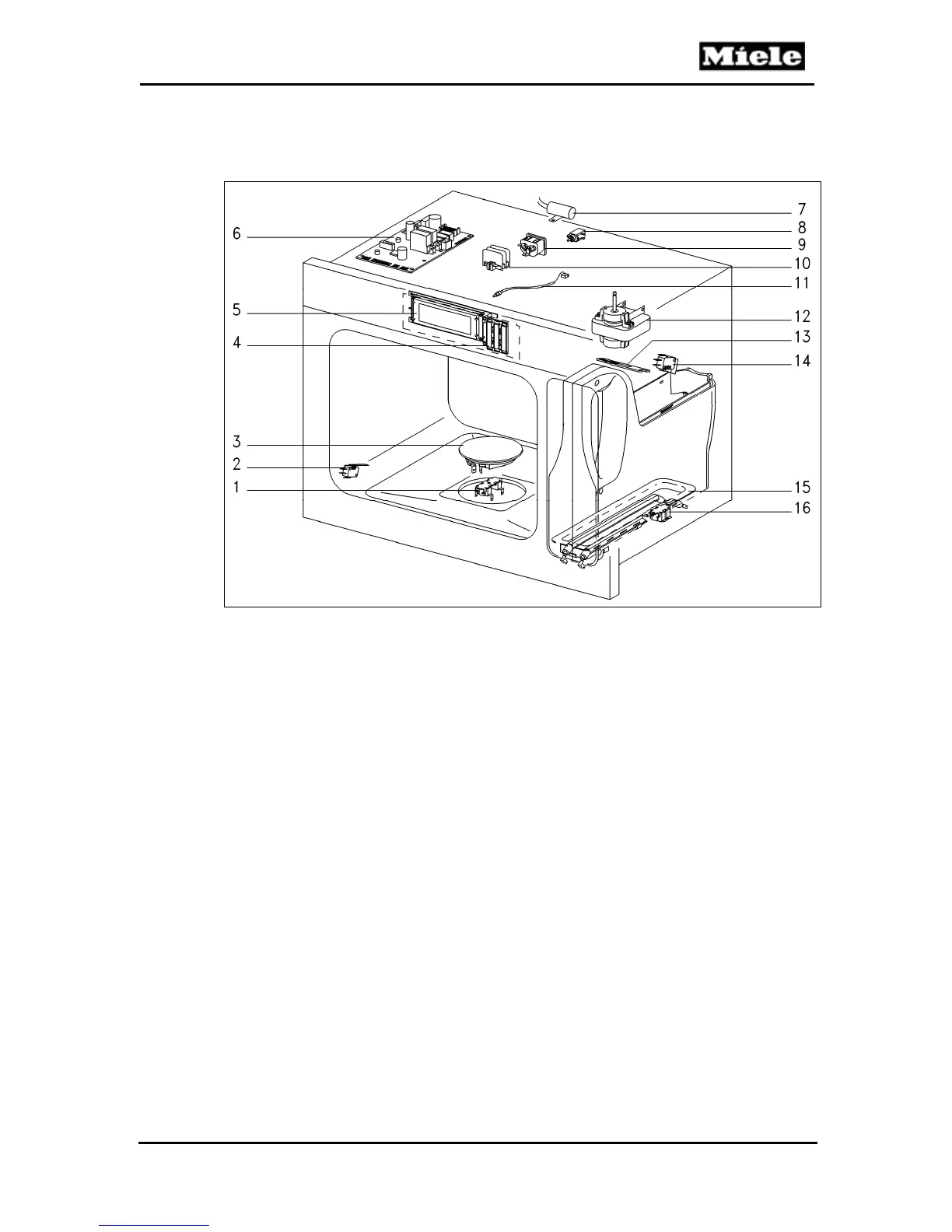

Figure D-3: DG 4080 Electrical Components
1
(2F1, 2F8) Floor heater temperature regulator (239°F) and
temperature limiter (402°F)
2
(S4) Door contact switch
3
(R28) Floor heater
4
(1N1) Selection electronic EW
5
(2N1) Control electronic EPX
6
(3N1) Power electronic EPL
–
(1K1/1, 2K1/1) Steam generator relay (not shown)
–
(K1/3) Floor heater relay (not shown)
–
(K1/5) Fan relay (not shown)
–
(K1/61) Release element relay (not shown)
7
(Z2) Interference suppression capacitor
8
(Y56) Release element
9
(X2) Socket for power cable
10
(X7) Plug strip
11
(R30) PT1000 temperature sensor
12
(M2) Fan
13
(S12) Water level float switch (PCB)
14
(S84) Steam generator present switch
15
(1R25, 2R25) Steam generator heater elements
16
(1F1, 1F8) Steam generator temperature regulator (410°F)
and temperature limiter (568°F)
