Technical Information
G600 & G800 Electronic Di
shwashers
4.3
Combination
Dispenser
4.3.1
Construction
Two individual solenoids control detergent and rinse aid dispensing.
The Rinse Aid Reservoir has a capacity of about 130 ml. When the
Rinse Aid level drops to about 25 ml
. the Magnetic Float activates a
Reed Switch on the edge of the dispenser and the Rinse Aid LED
illuminates.

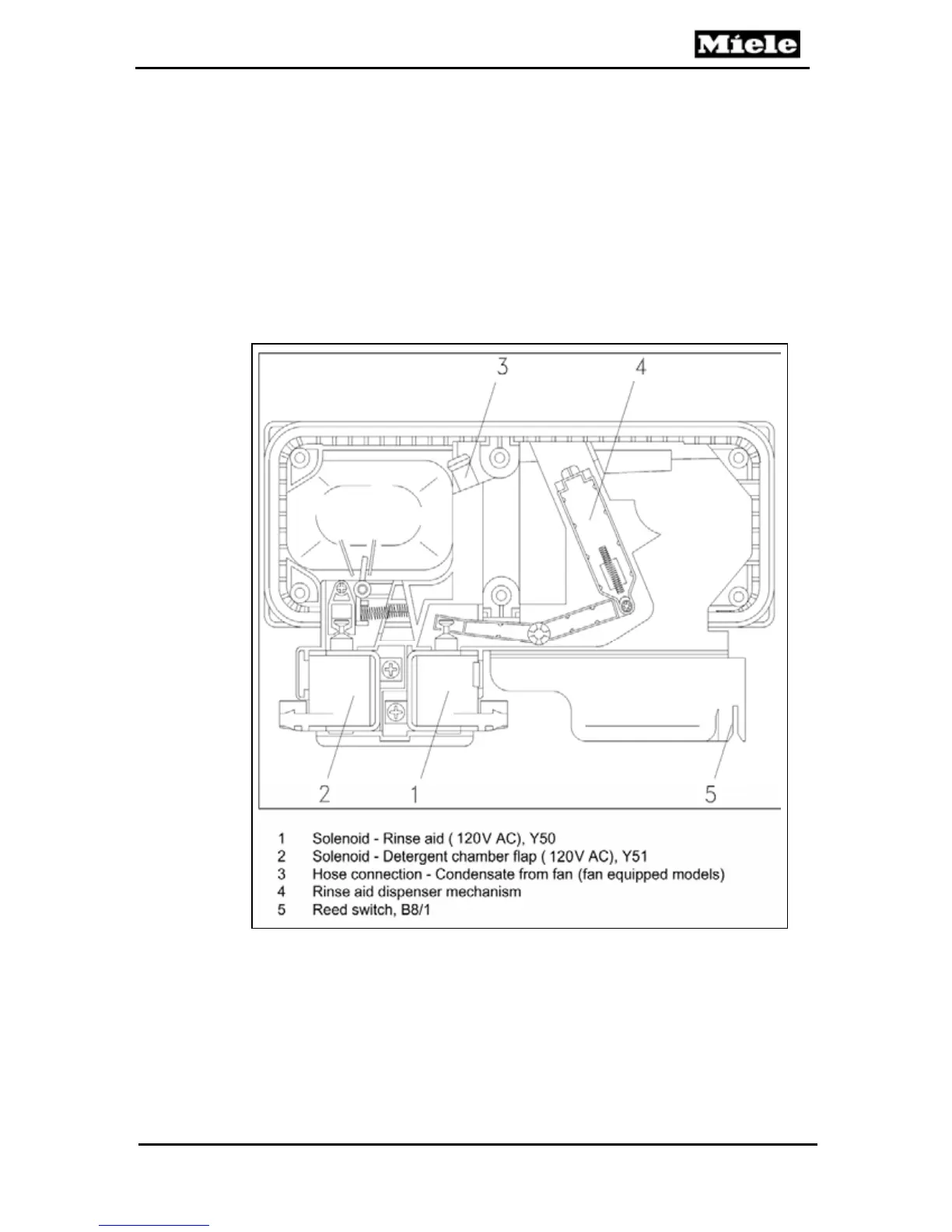

Figure 4-1:
Dispenser Assembly
25
24
26
