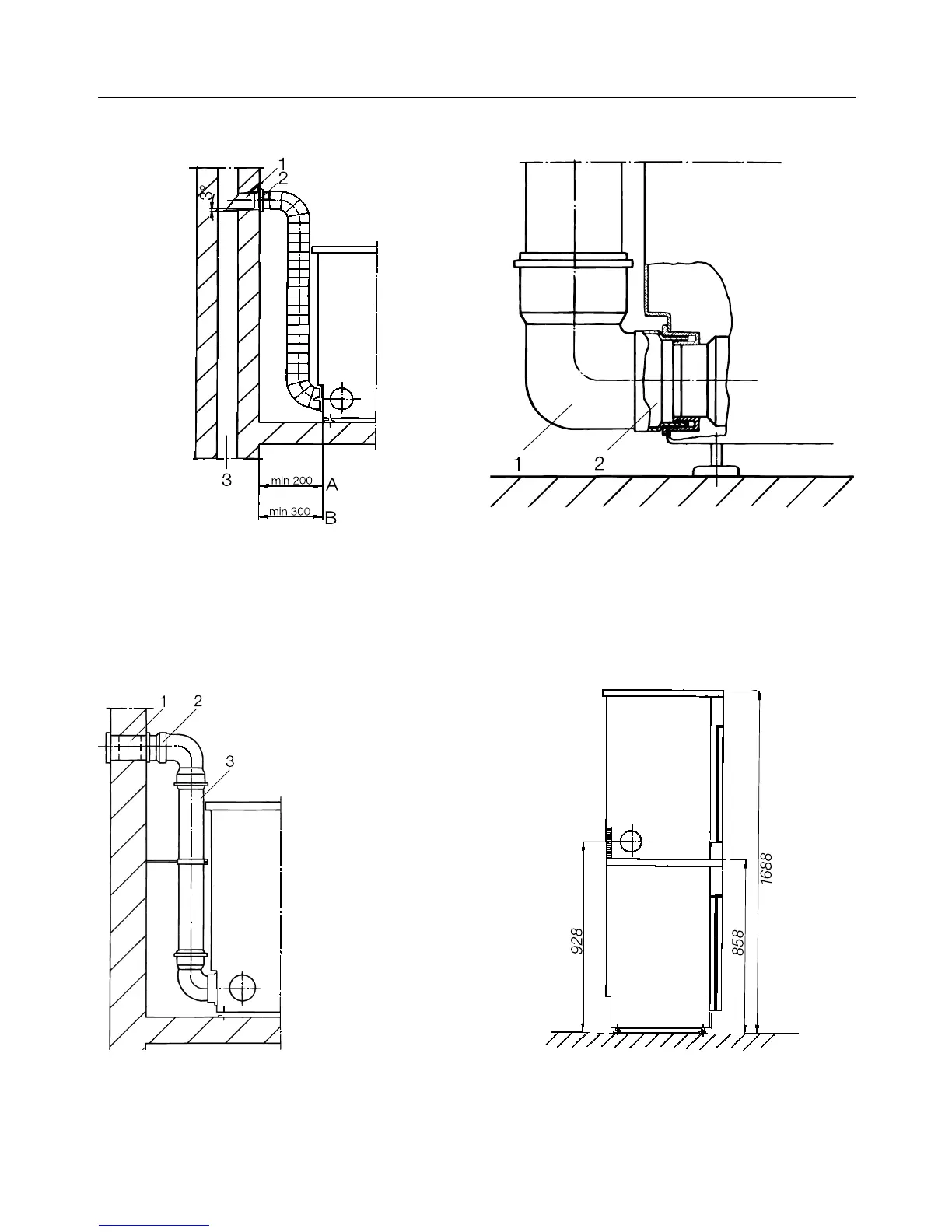

Installation examples
Fig. 1
Ducting (side view) with flexible vent hose to
an exhaust flue.
1. Wall vent duct A. Wire spiral-wound hose
2. Adapter B. Flexible ducting
3. Flue isulated against damp
Fig. 2
Ducting (side view) with plastic piping to a
wall vent kit.
1. Wall vent kit
2. Adapter
3. Plastic drain pipe (outer dia. 110 mm)
Fig. 3
Connection of plastic piping to the tumble
dryer.
1. Plastic drain pipe
2. Adapter for vent duct between tumble dryer
and plastic drain pipe
Fig.4
Height of vent outlet for washer dryer stack.
