Technical Information
17
T1500 Series Clothes Dryers
1. Door
2. Filter
3. Output from Filter
4. Fan Motor
5. NTC Sensor (13 K.Ohms @ 75
0
F)
6. Drum
7. Warmed Drying Air
8. Drying Load
9. Heater Bank
10. Vent Output
4.0 Description of Function
4.1 Vented Dryer – Principle of Operation

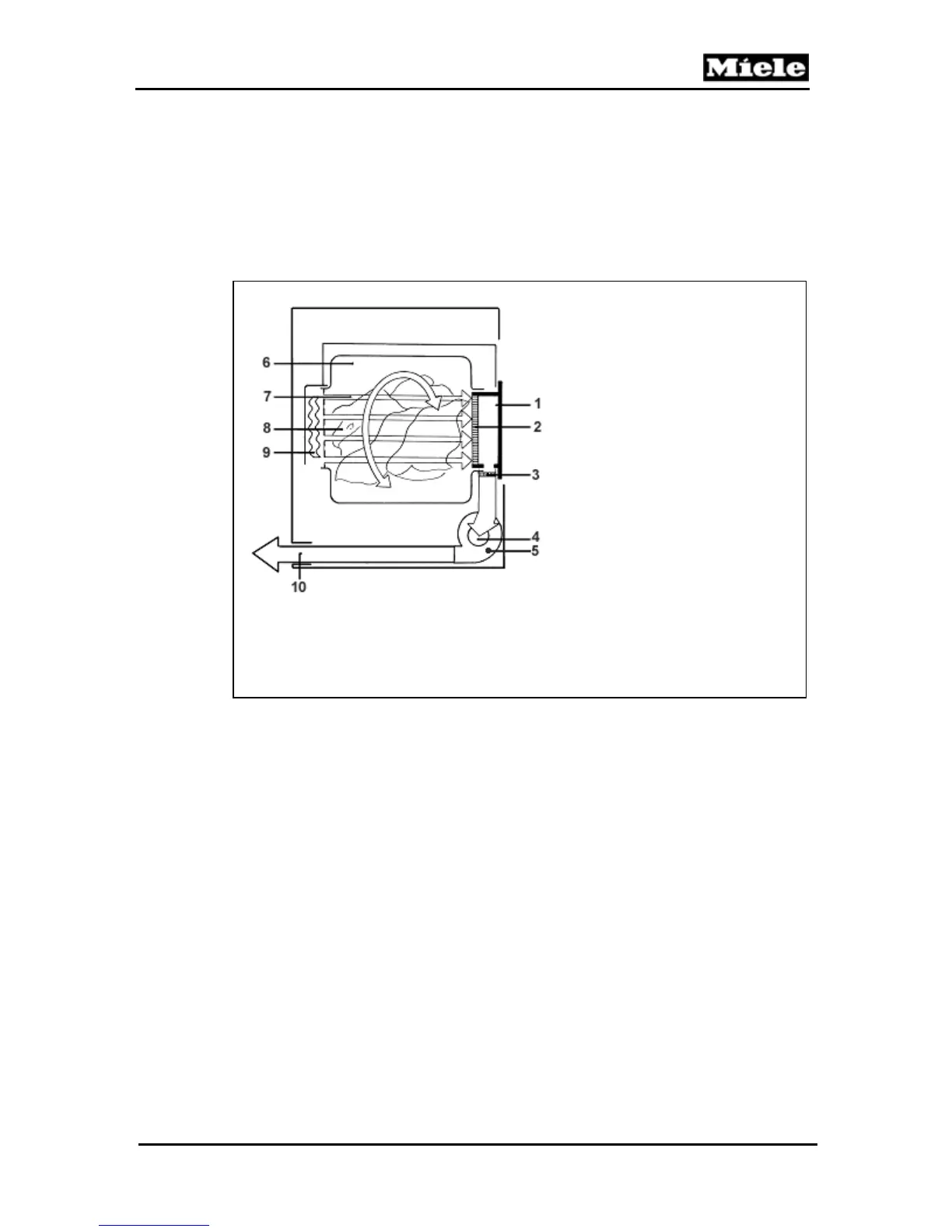

Figure 4-1: Vented Dryer Airflow
Refer to figure 4-1.
The Fan Motor (Item 4) is responsible for drawing heated air from
the Heater Bank (Item 6). The heated air passes through the Drum
(Item 9), where moisture from the Drying Load (7) is absorbed. The
air is filtered as it passes through the Filter (Item2) located in the
Front Door (Item 1). The flow continues through the Fan Motor
(Item 4) and exits via the Vent Output (Item 5).
