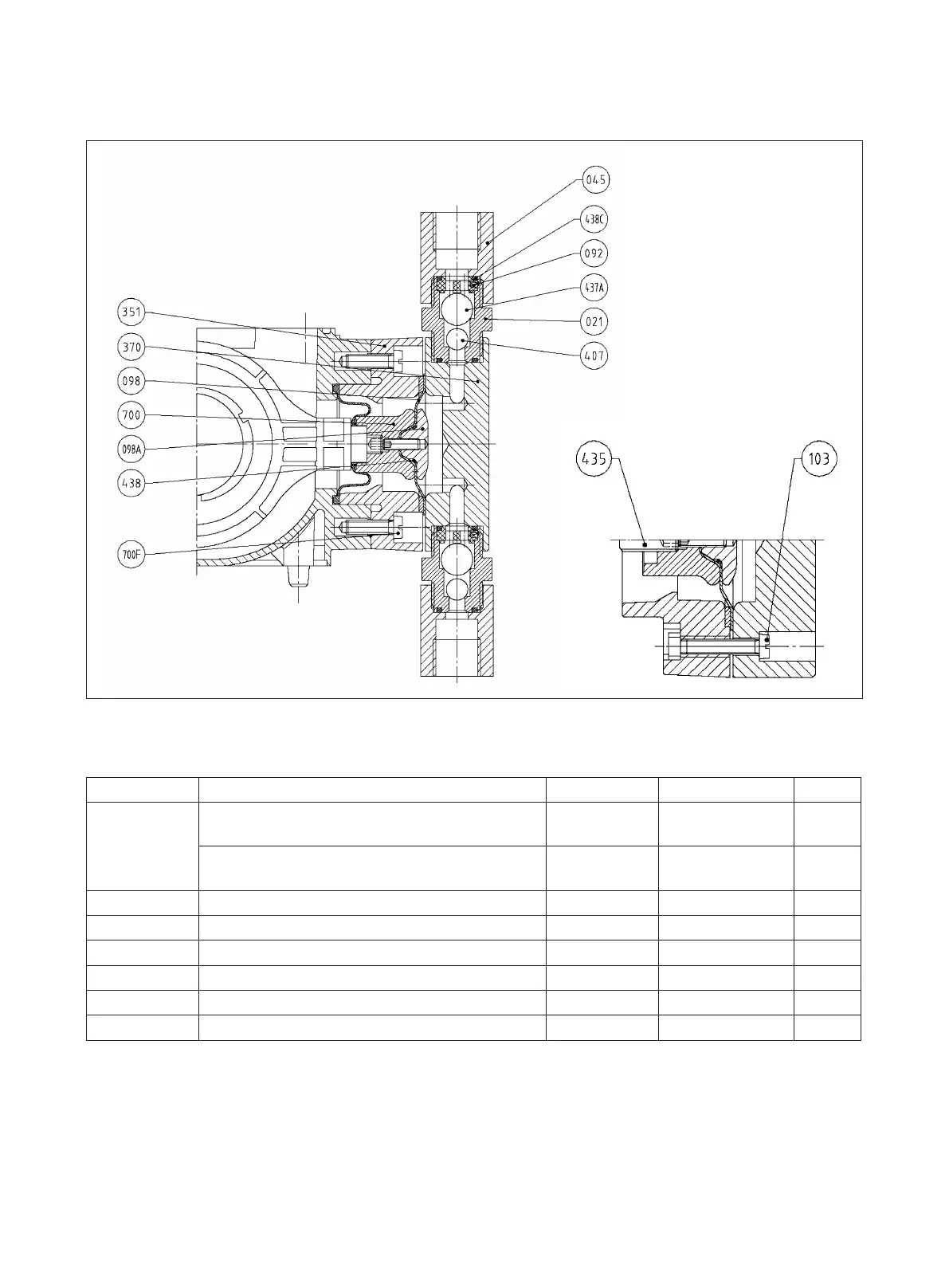

FIGURE 5-11 GM0025~GM0050 STAINLESS STEEL & SLURRY LIQUID END-THREADED
CONNECTION
5.11 PARTS LIST FOR GM0025~GM0050 STAINLESS STEEL & SLURRY LIQUID END THREADED
CONNECTION (REFERRING TO FIGURE 5-11)
Notes:
1. Replacement of suction/discharge check valve assembly, only as assembly of item ball guide (021), union
connection (045), ball stop (092), ball (407), ball check (437A), O-ring (438C).
2. Replacement of diaphragm assembly (098), only as assembly of item diaphragm (098), plate (098A),
diaphragm seat (701), O-ring (438), screw (435A).
Item Number Description Material Part Number Qty.
Suction/Discharge Check Valve Assembly
(316SS LE)
AISI 316SS H60605 2
Suction/Discharge Chekc Valve Assembly
(Slurry LE)
AISI 316SS H60612 2
098 Diaphragm Assembly 316SS/PTFE H60613 1
103 Screw - S10340 4
700F Screw - S70054 4
351 Spacer - S35116 1
435 Screw A2-70 S4350016075N 1
370 Head AISI 316L S70033 1
To Next Page
