Mitsubishi Electric CITY MULTI PKFY-P VLM Series User Manual

11
EN

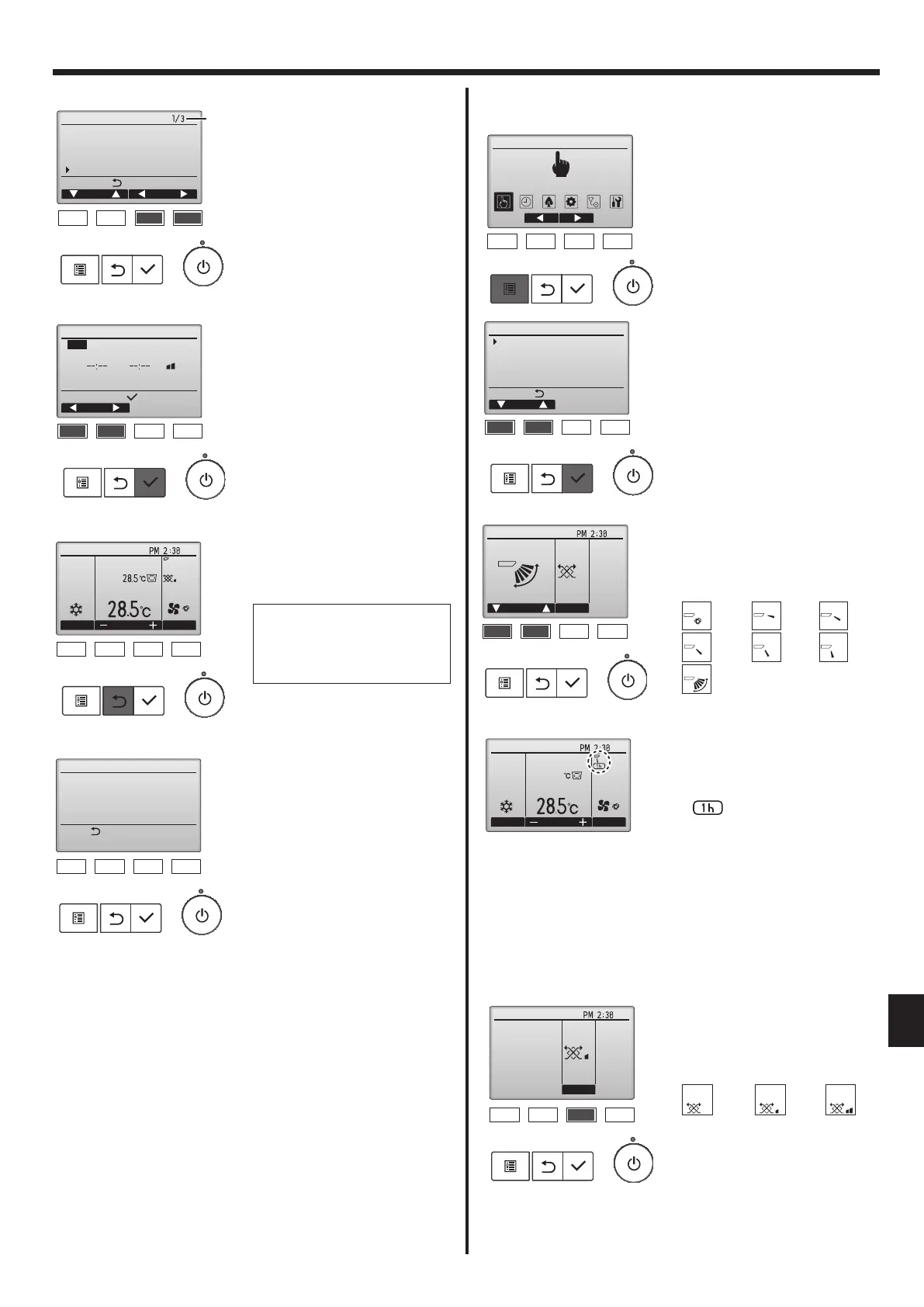

3. Operation
<Navigating through the pages>
Press [F3] to go to the previous
page.
Press [F4] to go to the next page.
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
page
<Saving the settings>
OU silent mode
Mon Tue Wed Thu Fri Sat Sun
Start Stop Silent
-
Setting display:
day
Select the desired item, and press
the [SELECT] button.
The screen to set the selected item
will appear.
<Exiting the Main menu screen>
Press the [RETURN] button to exit
the Main menu and return to the
Main display.
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
<Display of unsupported functions>
The message at left will appear if
the user selects a function not sup-
ported by the corresponding indoor
unit model.
Title
Not available
Unsupported function
Return:
3.5.2 Vane·Vent. (Lossnay)
<Accessing the menu>
Select “Operation” from the Main
menu (refer to page 10), and press
the [SELECT] button.
Main Main menu
Operation
Main menu:
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
Select “Vane•Louver•Vent. (Loss-
nay)” from the Operation menu, and
press the [SELECT] button.
<Vane setting>
Fri
Swing Off
Vent.Vane
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
28.5
<Vent. setting>
Fri
Low
Vent.
If no buttons are touched for
10 minutes, the screen will
automatically return to the Main
display. Any settings that have not
been saved will be lost.
Press the [F3] button to go through
the ventilation setting options in the
order of “Off ” , “Low” , and “High”.
* Settable only when LOSSNAY unit
is connected.
Off Low High
Off Low High
• The fan on some models of indoor
units may be interlocked with cer-
tain models of ventilation units.
Press the [F1] or [F2] button to go
through the vane setting options:
“Auto”, “Step 1”, “Step 2”, “Step 3”,
“Step 4”, “Step 5” and “Swing”.
Select the desired setting.
Auto
Auto
Swing
Step 1 Step 2
Step 4Step 3
Swing
Step 5
Select “Swing” to move the vanes
up and down automatically.
When set to “Step 1” through “Step
5”, the vane will be xed at the se-
lected angle.
•
under the vane setting icon
This icon will appear when the
vane is set to “Step 2” to “Step 5”
and the fan operates at “Mid 1”
to “Low” speed during cooling or
dry operation (depends on the
model).
The icon will go off in an hour, and
the vane setting will automatically
change.
RH79A011H02_en.indd 11 2019/02/13 14:51:36
